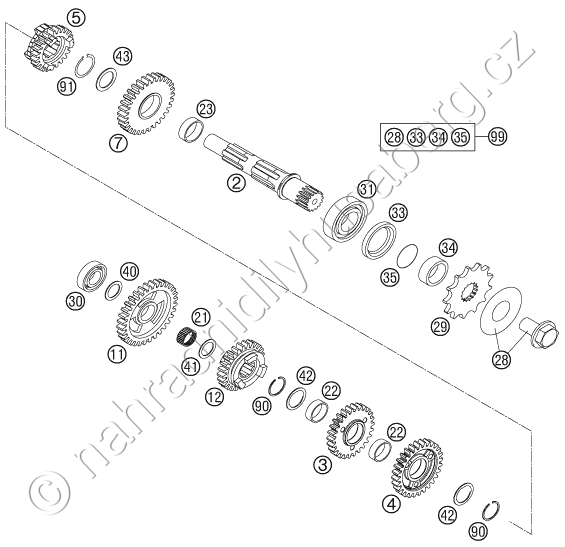

Díly pro TRANSMISSION II - COUNTERSHAFT
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 2 | 77033010000 COUNTER SHAFT 05 |
2 163 Kč | |
| 3 | 77033114000 IDLER G. 4TH 6.28-T \'\'4B28\'\' |
1 564 Kč | |
| 4 | 77033113000 IDLER G. 3RD G.29-T \'\'3B29\'\' |
1 593 Kč | |
| 5 | 77033116100 SLIDING G. 6TH 6.22-T \'\'6B26\'\' |
1 727 Kč | |
| 7 | 77033112000 IDLER G. 2ND 6. 33-T \'\'2B33\'\' |
1 596 Kč | |
| 11 | 77033111000 IDLER G. 1ST G. 33-T \'\'1B33\'\' |
1 605 Kč | |
| 12 | 77033115100 SLIDING G. 5TH G .23-T \'\'5B23\'\' |
1 727 Kč | |
| 21 | 50033098000 NEEDLE BEARING K20X24X10 |
337 Kč | |
| 22 | 0405222611 NEEDLE BEAR.K 22X26X10 DIVIDED |
175 Kč | |
| 23 | 50333023000 IDLER GEAR BUSHING 25X28X9,7 D |
578 Kč | |
| 28 | 59033034044 SCREW 10.9+SPRING WASHER |
94 Kč | |
| 29 | 50033029015 FRONT SPROCKET 15-T |
360 Kč | |
| 29 | 79233029013 SPROCKET 13T |
360 Kč | |
| 29 | 79233029014 SPROCKET 14T |
360 Kč | |
| 30 | 0625060031 BALL BEARING 6003 TN9 C4 |
219 Kč | |
| 31 | 0625062054 BALL BEARING 6205 C3 NTN |
292 Kč | |
| 33 | 0760324571 SHAFT SEAL RING 32X45X7 BSLNBR |
65 Kč | |
| 34 | 54633014100 SPACER BUSHING 12MM |
459 Kč | |
| 35 | 0770020220 O-RING 25,12X1,78 NBR70 |
17 Kč | |
| 40 | 56033030000 STOP DISC 17,2X30X1 |
158 Kč | |
| 41 | 59033080000 SHIM 20X32X1 |
41 Kč | |
| 42 | 50333043000 STOP DISC 25,2X32X1 |
73 Kč | |
| 43 | 0988253510 THRUST WASH. DIN0988-25X35X1,0 |
34 Kč | |
| 90 | 77033022000 AXIAL-CIRCLIP 25X1,65 |
82 Kč | |
| 91 | 0471250120 CIRCLIP DIN0471-25X1,2 |
18 Kč | |
| 99 | 00050000941 COUNTER SHAFT REP.KIT 4 STROKE |
538 Kč |
