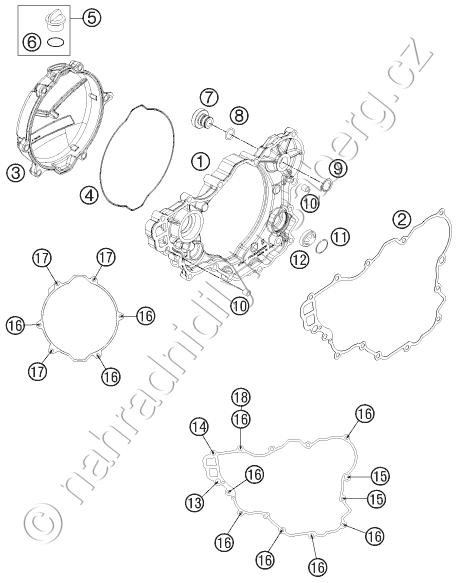

Díly pro CLUTCH COVER
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 7703000124415 CLUTCH COVER CPL. |
3 026 Kč | |
| 2 | 77030025100 GASKET FOR CLUTCH COVER 05 |
382 Kč | |
| 3 | 7703012600089 CLUTCH COVER OUTSIDE 13 |
1 666 Kč | |
| 4 | 77030027000 MOLDED RING 05 |
284 Kč | |
| 5 | 79430020033 OIL FILLER CAP M24X3 WITH O-R |
89 Kč | |
| 6 | 0770191015 O-RING 19,00X3,00 NBR |
15 Kč | |
| 7 | 77230001010 PLUG STARTING LEVER |
171 Kč | |
| 8 | 0770140200 O-RING 14,00X2,00 |
17 Kč | |
| 9 | 0471170010 CIRCLIP DIN0471-17X1 |
17 Kč | |
| 10 | 49030090100 DOWEL 9,8 X7X10 |
52 Kč | |
| 11 | 61030019050 CIRCLIP OIL LEVEL GLASS 03 |
29 Kč | |
| 12 | 59030019200 OIL SIGHT GLASS |
318 Kč | |
| 13 | 0025060406 HH COLLAR SCREW M6X40 TX30 |
29 Kč | |
| 14 | 0025060356 HH COLLAR SCREW M6X35 TX30 |
29 Kč | |
| 15 | 0025060306 HH COLLAR SCREW M6X30 TX30 |
29 Kč | |
| 16 | 0025060256 HH COLLAR SCREW M6X25 TX30 |
29 Kč | |
| 17 | 0025060556 HH COLLAR SCREW M6X55 TX30 |
29 Kč | |
| 18 | 0603061001 CU-SEAL RING DIN7603-6X10X1 |
20 Kč |
