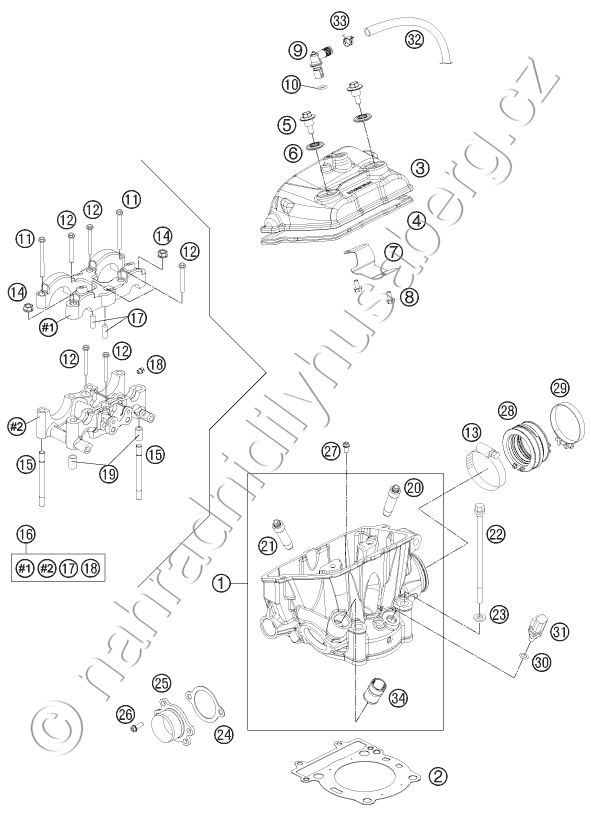

Díly pro CYLINDER HEAD
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 77136020144 CYLINDER HEAD CPL. |
12 926 Kč | |
| 2 | 77030036000 CYLINDER HEAD GASKET 05 |
714 Kč | |
| 3 | 77036052100 VALVE COVER 06 |
793 Kč | |
| 4 | 77036053000 VALVE COVER GASKET 05 |
227 Kč | |
| 5 | 77036055100 VALVE COVER SCR. M6X12 WS10 07 |
73 Kč | |
| 6 | 77036054050 RUBBER GASKET FOR SCREW 05 |
163 Kč | |
| 7 | 77036052050 COVER PLATE BREATHER 05 |
509 Kč | |
| 8 | 0009050106 EJOT SPIRAL SCREW SF M5X10-K |
20 Kč | |
| 9 | 60038082000 ANGLE CONNECTOR LC8 03 |
356 Kč | |
| 10 | 0770080020 O-RING 8X2 SILICONE |
20 Kč | |
| 11 | 77036081000 SPECIAL SCREW M7X73 WS 10 |
73 Kč | |
| 12 | 77036080000 SPECIAL SCREW M7X40 WS10 |
63 Kč | |
| 13 | 61036047000 HOSE CLAMP GEMI 63MM 05 |
169 Kč | |
| 14 | 77036024000 COLLAR NUT 7X1 05 |
82 Kč | |
| 15 | 77036023000 STUD 7X1 05 |
151 Kč | |
| 16 | 77036020150 BUSH SUPPORT A.BRIDGE CPL \'05 |
6 420 Kč | |
| 17 | 0402050980 NEEDLE ROLLER DIN 5402 5X9.8 |
33 Kč | |
| 18 | 60030063050 OIL JET 50 M5 |
159 Kč | |
| 19 | 77036090000 DOWEL(BUSH BRIDGE)7/9/8 05 |
69 Kč | |
| 20 | 77136025001 VALVE GUIDE INTAKE |
815 Kč | |
| 21 | 77136026001 VALVE GUIDE OUTLET |
815 Kč | |
| 22 | 77036079000 CYLINDER HEAD SCREW 05 |
249 Kč | |
| 23 | 59036090000 WASHER 10,8X18,8X1,5 |
23 Kč | |
| 24 | 77036041000 GASKET EXHAUST FLANGE 06 |
116 Kč | |
| 25 | 77036039100 EXHAUST FLANGE CPL. 07 |
753 Kč | |
| 26 | 0025060206 HH COLLAR SCREW M6X20 TX30 |
29 Kč | |
| 27 | 0025060256 HH COLLAR SCREW M6X25 TX30 |
29 Kč | |
| 28 | 77236044000 CONNECTION RUBBER EFI |
565 Kč | |
| 29 | 77236048000 HOSE CLAMP GEMI 58MM |
169 Kč | |
| 30 | 0770100020 O-RING 10.00X2.00 SILICONE |
18 Kč | |
| 31 | 60011252000 TEMPERAT.-SENSOR WATER LC8 02 |
552 Kč | |
| 32 | 77438087000 ENGINE BREATHER HOSE |
191 Kč | |
| 33 | 00049160121 CLAMP STD DN16 |
34 Kč | |
| 34 | 58030010200 SCREW IN NOZZLE M20X1,5 |
166 Kč |
