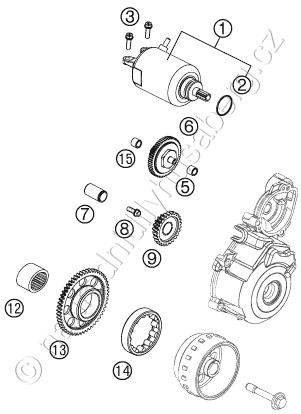

Díly pro ELECTRIC STARTER
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 77040001000 E-STARTER ENGINE 2007 |
5 758 Kč | |
| 2 | 0770250030 O-RING 25,00X3,00 NBR 70 |
17 Kč | |
| 3 | 0025060206 HH COLLAR SCREW M6X20 TX30 |
29 Kč | |
| 5 | 0618081210 NEEDLE BUSH HK 0810 DIN 618 |
71 Kč | |
| 6 | 77240016000 TORQUE LIMITER |
3 347 Kč | |
| 7 | 59040028000 BUSHING PIN |
191 Kč | |
| 8 | 0015060163 HH COLLAR SCREW M 6X16 WS=8 |
17 Kč | |
| 9 | 77240022000 INTERMEDIATE STARTING GEAR |
1 681 Kč | |
| 12 | 0618301617 NEEDLE BEARING HK 3016 B |
193 Kč | |
| 13 | 77240020000 FREEWHEEL GEAR |
1 915 Kč | |
| 14 | 77240026000 ROLLER FREE WHEEL |
4 116 Kč | |
| 15 | 77140017000 SLIDING SLEEVE 8X10X8 |
50 Kč |
