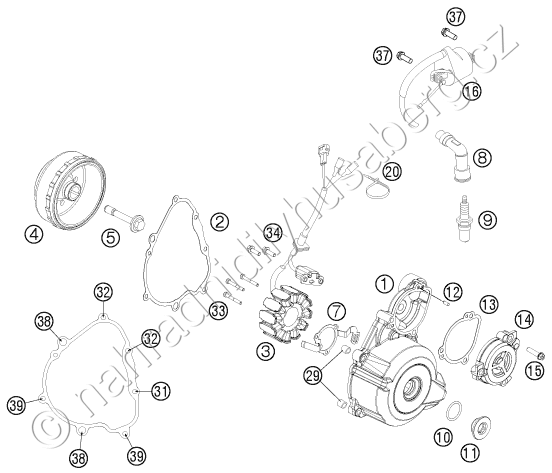

Díly pro IGNITION SYSTEM
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 7743000200015 IGNITION COVER |
2 122 Kč | |
| 2 | 77130040000 IGNITION COVER GASKET |
369 Kč | |
| 3 | 77439004000 STATOR |
4 977 Kč | |
| 4 | 77539005000 ROTOR |
9 947 Kč | |
| 5 | 77339010100 FLYWHEEL SCREW |
87 Kč | |
| 7 | 77430002050 RETAINING PLATE |
429 Kč | |
| 8 | 77139090000 SPARK PLUG CONNECTOR |
892 Kč | |
| 9 | 77039093000 SPARK PLUG NGK CR9EKB ´05 |
252 Kč | |
| 10 | 07700240251 O-RING 24.00X2.50 VITON |
39 Kč | |
| 11 | 7723000216030 SCREW PLUG M24X1,5 |
1 102 Kč | |
| 12 | 0402040980 NEEDLE ROL.DIN5402 NRB 4X9,8 |
23 Kč | |
| 13 | 77240043000 GASKET TORQUE LIMITER |
50 Kč | |
| 14 | 7723000201015 COVER TORQUE LIMITER |
624 Kč | |
| 15 | 0025060256 HH COLLAR SCREW M6X25 TX30 |
29 Kč | |
| 16 | 58439006000 IGNITIONCOIL IG3826 KOKUSAN\'96 |
1 278 Kč | |
| 20 | 44011076140 CABLE TIE 140/2,5MM BLACK |
10 Kč | |
| 29 | 49030090100 DOWEL 9,8 X7X10 |
52 Kč | |
| 31 | 0025060306 HH COLLAR SCREW M6X30 TX30 |
29 Kč | |
| 32 | 0025060506 HH COLLAR SCREW M6X50 TX30 |
29 Kč | |
| 33 | 0912050303 AH SCREW DIN0912-M 5X30 |
36 Kč | |
| 34 | 0025050126 HH COLLAR SCREW M5X12 TX30 |
36 Kč | |
| 37 | 0026060186 COLLAR SCREW M6X18 ISA30 |
18 Kč | |
| 38 | 0025060356 HH COLLAR SCREW M6X35 TX30 |
29 Kč | |
| 39 | 0025060906 HH COLLAR SCREW M6X90 TX30 |
29 Kč |
