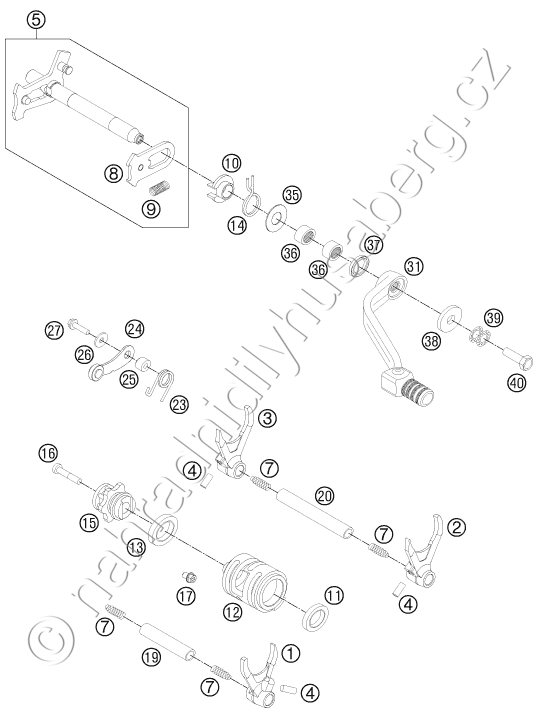

Díly pro SHIFTING MECHANISM
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 77034001000 SHIFTING FORK 5TH/6TH GEAR 05 |
1 198 Kč | |
| 2 | 77034002000 SHIFTING FORK 2ND/3RD GEAR 05 |
1 198 Kč | |
| 3 | 77034003000 SHIFTING FORK 1ST/4TH GEAR 05 |
1 198 Kč | |
| 4 | 0402061480 NEEDLE ROLLER DIN5402 6X14,8 |
50 Kč | |
| 5 | 77034005133 SHIFT SHAFT ASSY |
2 211 Kč | |
| 7 | 58038023200 PRESSURE SPRING 0,9MM |
52 Kč | |
| 8 | 61234008044 SLIDING PLATE |
150 Kč | |
| 9 | 56534013100 TENSIONING SPRING 0,8MM |
44 Kč | |
| 10 | 54634020000 SPRING GUIDE |
116 Kč | |
| 11 | 0625069034 BALL BEARING 6903 C4 |
313 Kč | |
| 12 | 77034012000 SHIFT ROLLER 05 |
1 876 Kč | |
| 13 | 0625618050 BALL BEARING 61805 C3 |
601 Kč | |
| 14 | 54634014100 RETURN SPRING 2,2MM \'95 |
79 Kč | |
| 15 | 77034015144 SHIFT LOCATING DRUM CPL. 05 |
890 Kč | |
| 16 | 0912060303 AH SCREW DIN0912-M 6X30 |
23 Kč | |
| 17 | 0025060086 HH COLLAR SCREW M6X8 TX30 |
29 Kč | |
| 19 | 54834019000 SHIFT. RAIL MAIN SHAFT 250/300 |
206 Kč | |
| 20 | 77034019000 SHIFTING MAIN L=93MM 05 |
207 Kč | |
| 23 | 77034023000 LOCKING LEVER SPRING |
33 Kč | |
| 24 | 77034024044 LOCKING LEVER CPL. 08 |
324 Kč | |
| 25 | 54634052300 SLEEVE FOR LOCKING LEVER |
63 Kč | |
| 26 | 0349000050 WASHER DIN7349-5X15X2 |
17 Kč | |
| 27 | 0025050206 HH COLLAR SCREW M5X20 TX30 |
20 Kč | |
| 31 | 59034031000 SHIFT LEVER CPL.RACING 2000 |
1 493 Kč | |
| 35 | 54634050000 STOP DISK 14X30X1 |
29 Kč | |
| 36 | 54632095000 NEEDLE SLEEVE HK 1412 14X20X12 |
97 Kč | |
| 37 | 0760142460 RADIAL SHAFT SEAL 14X24X6 B |
77 Kč | |
| 38 | 50232050001 STEEL WASHER 6,4X17X3 |
37 Kč | |
| 39 | 50233041000 PAIR OF WASHERS M 6 NORDLOCK |
39 Kč | |
| 40 | 59009062016 SPECIAL SCREW M6X16 WS=8 10.9 |
31 Kč |
