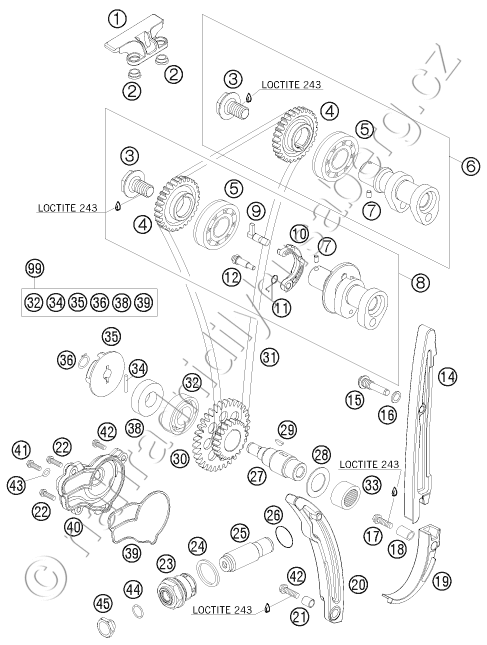

Díly pro TIMING DRIVE
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 77036004000 TIMING CHAIN GUIDE TOP 05 |
76 Kč | |
| 2 | 77036004050 SPACER BUSHING GUIDE RAIL ´05 |
95 Kč | |
| 3 | 77036012100 CAMSHAFT GEAR SCREW 08 |
315 Kč | |
| 4 | 77036011300 CAMSHAFT GEAR |
1 474 Kč | |
| 5 | 0625060043 BALL BEARING 6004 NR C3 ´05 |
284 Kč | |
| 6 | 77036109244 CAMSHAFT INTAKE 2009 |
5 501 Kč | |
| 7 | 0402040600 NEEDLE ROOLER DIN5402 NRB 4X6 |
84 Kč | |
| 8 | 77436010044 CAMSHAFT EXHAUST CPL. |
5 501 Kč | |
| 9 | 77036015100 AUTO DECOMPRESSION SHAFT |
1 301 Kč | |
| 10 | 77036016100 AUTO DECO WEIGHT |
1 532 Kč | |
| 11 | 77036017000 SPRING FOR AUTO DECOMPR. 05 |
79 Kč | |
| 12 | 77036019100 BEARING PIN AUTODECO |
235 Kč | |
| 14 | 77036001000 TIMING CHAIN GUIDE 05 |
247 Kč | |
| 15 | 77036001160 BUSHING SCREW 06 |
58 Kč | |
| 16 | 0603082121 SEAL RING CU DIN7603- 8X12X1 |
18 Kč | |
| 17 | 0025060256 HH COLLAR SCREW M6X25 TX30 |
29 Kč | |
| 18 | 59036001050 SPACER BUSHING 6,1X8,2X13,1 |
65 Kč | |
| 19 | 77036005000 SECURING PROTECTION ´05 |
60 Kč | |
| 20 | 77036002000 TIMING CHAIN TENSIONER ´05 |
89 Kč | |
| 21 | 77036001050 SPACER BUSHING 6.1X8.2X9.1 05 |
55 Kč | |
| 22 | 0025060406 HH COLLAR SCREW M6X40 TX30 |
29 Kč | |
| 23 | 78036008100 CHAIN ADJUSTER HOLDING BOLT |
334 Kč | |
| 24 | 0603242920 CU SEAL-RING DIN7603 A24X29X2 |
29 Kč | |
| 25 | 77036003000 CHAIN ADJUSTER HYD. 05 |
1 301 Kč | |
| 26 | 0770180020 O-RING 18.00X2.00 NBR70 |
21 Kč | |
| 27 | 77036072100 TIMING VALVE JACKSHAFT 08 |
1 020 Kč | |
| 28 | 77036073000 STOP DISK 18,2X30X1 05 |
58 Kč | |
| 29 | 0888030037 WOODRUFF KEY DIN6888-3X3,7 |
21 Kč | |
| 30 | 77036076200 TIMING VALVE TWIN WHEEL |
3 104 Kč | |
| 31 | 77036013100 TIMING CHAIN 108 ROLLS |
1 357 Kč | |
| 32 | 0625062035 BALL BEARING 6203 JR2 C3 |
215 Kč | |
| 33 | 0618182412 NEEDLE BEAR.HK1812 18/24/12 05 |
143 Kč | |
| 34 | 0402031780 NEEDLE ROL.DIN5402 NRB 3X17,8 |
17 Kč | |
| 35 | 77035055000 WATER PUMP ROTOR 05 |
66 Kč | |
| 36 | 0471100010 CIRCLIP DIN0471-10X1 |
14 Kč | |
| 38 | 0760123073 SHAFT SEAL RING 12X30X7 PTFE |
212 Kč | |
| 39 | 77035053000 MOLDED RING WATER PUMP 05 |
134 Kč | |
| 40 | 77035052000 WATER PUMP COVER 05 |
724 Kč | |
| 41 | 0025060306 HH COLLAR SCREW M6X30 TX30 |
29 Kč | |
| 42 | 0025060206 HH COLLAR SCREW M6X20 TX30 |
29 Kč | |
| 43 | 0603061001 CU-SEAL RING DIN7603-6X10X1 |
20 Kč | |
| 44 | 0770010010 O-RING 10.00X1.00 NBR70 |
18 Kč | |
| 45 | 77336008010 HOLDING BOLT |
151 Kč | |
| 99 | 77035055010 WATER PUMP REP. KIT 06-13 |
594 Kč |
