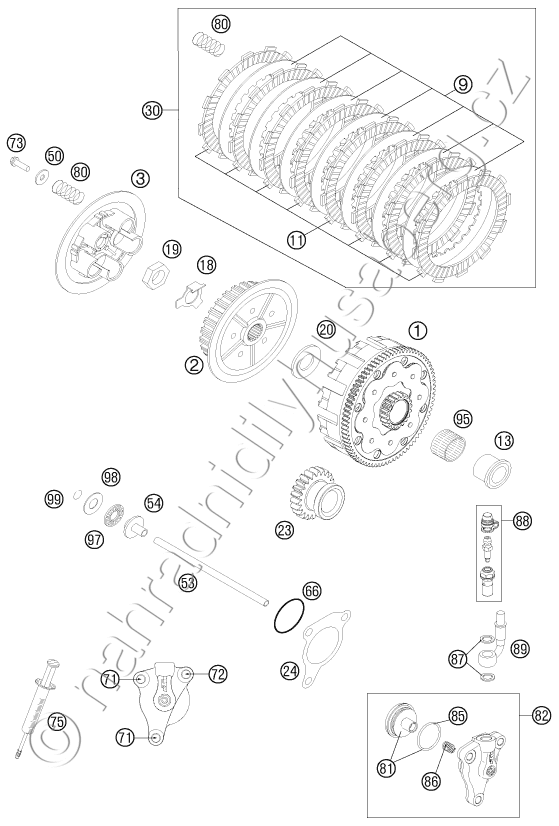

Díly pro CLUTCH
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 77032001100 OUTER CLUTCH CPL. |
10 253 Kč | |
| 2 | 77032002100 INNER CLUTCH HUB |
2 506 Kč | |
| 3 | 77032003100 PRESSURE PLATE |
2 181 Kč | |
| 9 | 77032010000 INTERMEDI. DISC STEEL 05 |
193 Kč | |
| 11 | 77032011000 LINING DISC 3,0MM 05 |
525 Kč | |
| 13 | 50332013000 INNER RING 20X26X25,9 \'98 |
435 Kč | |
| 18 | 50332018000 SHEET METAL LOCK 1,5MM \'98 |
66 Kč | |
| 19 | 0936181505 HEXAGON NUT DIN0936-M18X1,5 R. |
102 Kč | |
| 20 | 50332020000 STOP DISK 20X39,6X3 \'98 |
199 Kč | |
| 23 | 77132000022 PRIMARY GEAR 22T. |
1 724 Kč | |
| 24 | 59032065000 GASKET FOR SLAVE CYLINDER |
45 Kč | |
| 30 | 77032011010 CLUTCH KIT 250 SXF/EXCF 5-13 |
5 527 Kč | |
| 50 | 50232050000 WASHER 6,2X18X2 |
26 Kč | |
| 53 | 77032054000 PUSH ROD 05 |
196 Kč | |
| 54 | 50332054051 PRESSURE PIECE 125-380 \'98 |
Na dotaz | 1 |
| 66 | 0770300015 O-RING 30,00X1,50 NBR 70 |
33 Kč | |
| 71 | 0025060206 HH COLLAR SCREW M6X20 TX30 |
29 Kč | |
| 72 | 0025060356 HH COLLAR SCREW M6X35 TX30 |
29 Kč | |
| 73 | 0025060256 HH COLLAR SCREW M6X25 TX30 |
29 Kč | |
| 75 | 50329050000 VENT INJEKTION HYDR. CLUTCH |
937 Kč | |
| 80 | 77032005100 CLUTCH SPRING |
199 Kč | |
| 81 | 54832066000 PISTON CPL. |
940 Kč | |
| 82 | 54832061044 OUTPUT CYLINDER CPL. 06 |
2 251 Kč | |
| 85 | 54832067000 O-RING |
28 Kč | |
| 86 | 54832069000 PRESSURE SPRING |
257 Kč | |
| 87 | 42013226000 CU-SEAL RING DIN7603-10X16X1 |
28 Kč | |
| 88 | 62513020000 BLEEDER SCREW CPL. 05 |
445 Kč | |
| 89 | 54832063000 CLUTCH PIPE 06 |
1 761 Kč | |
| 95 | 56532095000 NEEDLE BEARING K26X30X22ZW.KSE |
321 Kč | |
| 97 | 54637097200 AXIAL NEEDLE BEARING AXK 1226 |
150 Kč | |
| 98 | 54637098200 AXIAL WASHER AS1226 12X26X1 |
57 Kč | |
| 99 | 0993012000 CIRCLIP DIN7993-RW12 |
5 Kč |
