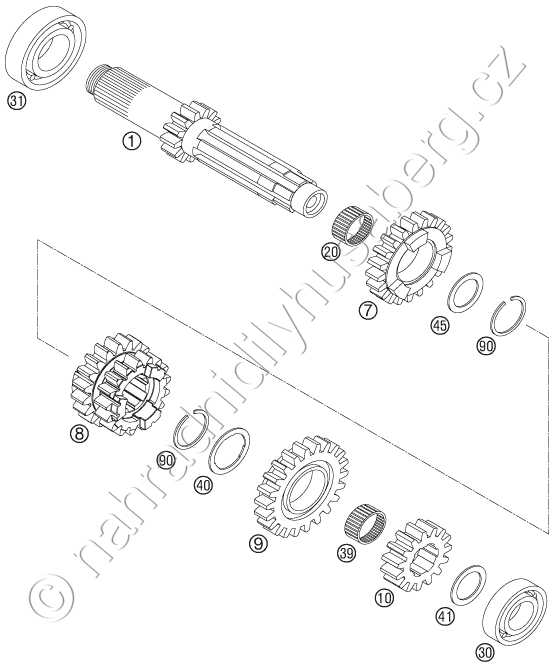

Díly pro TRANSMISSION I - MAIN SHAFT
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 77033101000 MAIN SHAFT CPL. Z=13 \'\'B13\'\' |
7 031 Kč | |
| 7 | 77033105000 IDLER G. 5TH G=23 \'\'5B23\'\' |
1 254 Kč | |
| 8 | 77033103000 SLIDING G.3/4. G19/23-T\'\'B1923\'\' |
4 147 Kč | |
| 9 | 77033106000 IDLER G. 6TH G.26 \'\'6B26\'\' |
1 270 Kč | |
| 10 | 77033102000 SOLID GEAR 2ND G.17-T\'\'2B17\'\' |
1 366 Kč | |
| 20 | 0405222611 NEEDLE BEAR.K 22X26X10 DIVIDED |
175 Kč | |
| 30 | 0625160032 GROOVED BALL BEARING 16003 Z |
446 Kč | |
| 31 | 0625060042 BALL BEARING 6004 TN9 C4 |
283 Kč | |
| 39 | 50133099000 NEEDLE CAGE K18X22X10 PARTED |
406 Kč | |
| 40 | 77033021000 STOP DISC 05 |
47 Kč | |
| 41 | 50333030000 STOP DISK 17,2X24X1 |
37 Kč | |
| 45 | 77033020000 STOP GEAR 22X28.5X1 05 |
47 Kč | |
| 90 | 50133090000 LOCK RING 22X1,2 |
28 Kč |
