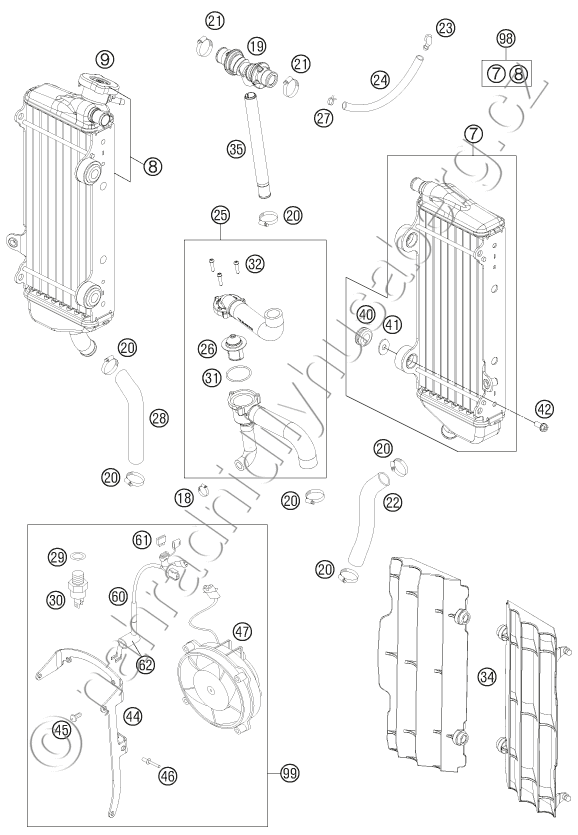

Díly pro COOLING SYSTEM
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 7 | 77035007500 RADIATOR L/S \'\'15623U\'\' |
6 268 Kč | |
| 8 | 78035008400 RADIATOR R/S \'\'15556U\'\' |
6 268 Kč | |
| 9 | 77335016000 RADIATOR CAP SMALL 1,8 BAR |
283 Kč | |
| 18 | 58335099000 HOSE CLAMP GEMI 10-16 |
57 Kč | |
| 19 | 77235071044 Y-CONNECTOR CPL. |
837 Kč | |
| 20 | 10001020300 HOSE CLAMP 18-29 |
52 Kč | |
| 21 | 42013037400 HOSE CLAMP NORMA 14/24 |
56 Kč | |
| 22 | 77035025000 RADIATOR HOSE L/S, R/S 250 SXF |
225 Kč | |
| 23 | 50303089000 ANGEL PIECE \'97 |
50 Kč | |
| 24 | 50335030001 PVC-HOSE 6X9 |
92 Kč | |
| 25 | 77435026033 RAD.HOSE W. THERM. 70° \'12 |
2 276 Kč | |
| 26 | 59435017000 THERMOSTAT 70 DEGREE 04 |
655 Kč | |
| 27 | 59007017000 CLAMP YDNAC 10096F (9,6MM) |
20 Kč | |
| 28 | 77035027100 RADIATOR HOSE R/S 07 |
177 Kč | |
| 29 | 0603142015 ALU SEALRING DIN7603-14X20X1,5 |
21 Kč | |
| 30 | 78035045000 THERMOSWITCH 95-100 DG |
1 290 Kč | |
| 31 | 0770320020 O-RING 32,00X2,00 |
44 Kč | |
| 32 | 0016040183 SCREW FOR PLASTIC D=4X18 |
17 Kč | |
| 34 | 7733503400030 RADIATOR PROTECTION BLACK 07 |
209 Kč | |
| 35 | 77235073000 HOSE CONNECTOR L=172,5 |
379 Kč | |
| 40 | 41001052000 RUBBER SLEEVE D=12MM |
57 Kč | |
| 41 | 77335001000 WASHER FOR RADIATOR 08 |
34 Kč | |
| 42 | 0023060123 COLLAR SCREW M6X12 TX |
28 Kč | |
| 44 | 81235943000 FAN SUPPORT |
1 027 Kč | |
| 45 | 0081050181 SCREW FOR PLASTIC K50X18 T20 |
20 Kč | |
| 46 | 0011400800 RIVET 4,0X 8 ALU |
18 Kč | |
| 47 | 58435041000 FAN CPL. 12V LC4 2000 |
2 243 Kč | |
| 60 | 59011079100 FAN WIRING HARNESS |
640 Kč | |
| 61 | 58011109105 FUSE 5 A 2003 |
63 Kč | |
| 62 | 58311096000 PROTECTION CAP THERMOSWITCH |
171 Kč | |
| 98 | 00050000131 RADIATOR KIT 08-14 |
10 425 Kč | |
| 99 | 81235941144 FAN KIT COMPLETE |
3 654 Kč |
