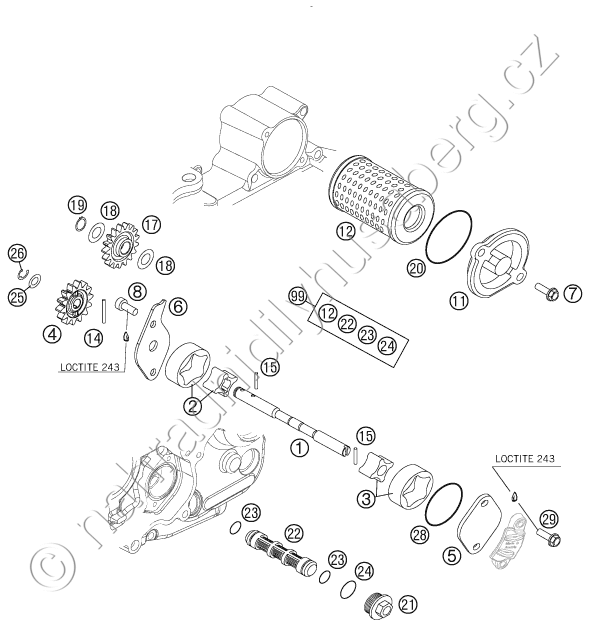

Díly pro LUBRICATING SYSTEM
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 77038102000 OIL PUMP SHAFT EXC-F |
295 Kč | |
| 2 | 59038011010 OILPUMP ROTOR CPL. 10MM G-73R |
590 Kč | |
| 3 | 77038011000 OILPUMP ROTOR 15MM G-164 |
910 Kč | |
| 4 | 77038001100 OIL PUMP GEAR 14T 08 |
86 Kč | |
| 5 | 77038004000 OIL PUMP COVER L/S 05 |
183 Kč | |
| 6 | 77038003100 OIL PUMP COVER R/S 05 |
198 Kč | |
| 7 | 0025050166 HH COLLAR SCREW M5X16 TX30 |
20 Kč | |
| 8 | 0984050123S CYLIND. SCR. DIN6912 M5X12 8.8 |
17 Kč | |
| 11 | 59038041000 OIL FILTER COVER RACING |
414 Kč | |
| 12 | 77038005044 OIL FILTER WITH GASKET 06 |
217 Kč | |
| 14 | 0402251980 NEEDLEROL.DIN5402 NRA 2,5X19,8 |
20 Kč | |
| 15 | 0402251180 NEEDLE ROLLER DIN5402 2,5X11,8 |
19 Kč | |
| 17 | 77038006100 OILPUMP IDLER GEAR 08 |
127 Kč | |
| 18 | 0988121805 SHIM WASHER DIN0988-12X18X0,50 |
21 Kč | |
| 19 | 0471120010 RETAINING RING DIN 471 12X1 |
4 Kč | |
| 20 | 0770400025 O-RING 40,00X2,50 NBR 70 |
33 Kč | |
| 21 | 59038017100 PLUG M20X1,5 WS=13 |
252 Kč | |
| 22 | 59038016100 OIL SCREEN |
278 Kč | |
| 23 | 0770125015 O-RING 12,5X1,5 NBR |
20 Kč | |
| 24 | 0770020170 O-RING 17,17X1,78 GLO |
18 Kč | |
| 25 | 58038007755 STOP DISK 8,1 X 15 X 0,5 |
21 Kč | |
| 26 | 0799060000 TAB WASHER DIN6799-RS 6,0 |
17 Kč | |
| 28 | 0770320020 O-RING 32,00X2,00 |
44 Kč | |
| 29 | 0025050126 HH COLLAR SCREW M5X12 TX30 |
36 Kč | |
| 99 | 77038015010 OILFILTER SERVICE KIT EXC-F |
419 Kč |
