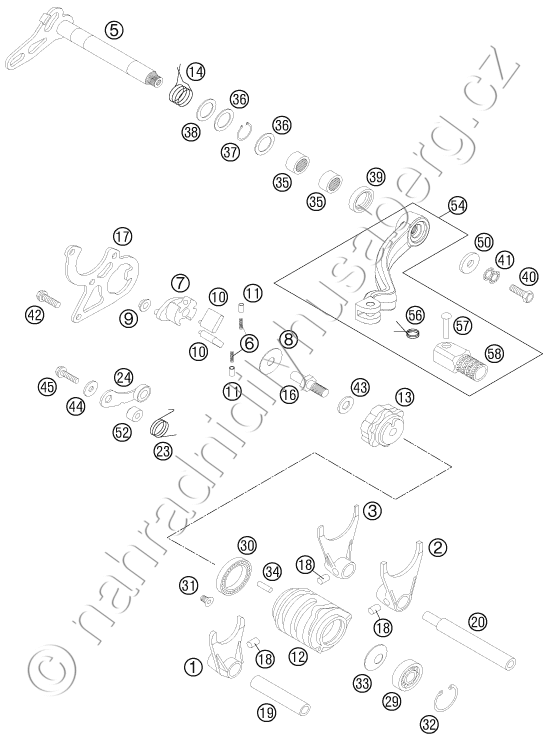

Díly pro SHIFTING MECHANISM
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 50334001200 SHIFTING FORK 5TH/6TH GEAR |
1 150 Kč | |
| 2 | 50334002200 SHIFTING FORK 2ND/4TH GEAR |
1 150 Kč | |
| 3 | 50334003200 SHIFTING FORK 1ST/3RD GEAR |
1 150 Kč | |
| 5 | 50334005100 SHIFTING SHAFT CPL. |
2 115 Kč | |
| 6 | 50334007052 SPRING FOR RATCHET 0,5X11,5 |
37 Kč | |
| 7 | 50334007000 RATCHET SUPPORT 125/200\'98 |
2 125 Kč | |
| 8 | 50334007054 STOP DISK 8,2X26X0,7 |
33 Kč | |
| 9 | 50334007053 BUSHING 6X8X12X4,5 |
138 Kč | |
| 10 | 50334007150 SHIFTING RATCHET 125/200 |
320 Kč | |
| 11 | 50334007051 PRESSURE END PAD 4,1X5,6X8,4 |
254 Kč | |
| 12 | 50334012300 SHIFTING DRUM 06 |
2 338 Kč | |
| 13 | 50334013000 LOCATING DRUM 125/200\'98 |
2 038 Kč | |
| 14 | 50334014000 RETURN SPRING 3MM |
103 Kč | |
| 16 | 50334016000 SPECIAL SCREW M8X21,5 WS=12 |
284 Kč | |
| 17 | 50334017000 SHIFTING GATE 3MM 125/200\'98 |
363 Kč | |
| 18 | 0402061000 NEEDLE ROLLER ZRB 6X10 |
113 Kč | |
| 19 | 50334019000 SHIFTING ROD DRIVE 11,8X67,5 |
151 Kč | |
| 20 | 50334020000 SHIFT. ROD DRIVE END 11,8X94,5 |
377 Kč | |
| 23 | 50334023000 LOCATING LEVER SPRING 2,5MM\'98 |
84 Kč | |
| 24 | 50334024144 LOCATING LEVER CPL. 08 |
238 Kč | |
| 29 | 0625060006 BALL BEARING 6000 RS1 C3 |
297 Kč | |
| 30 | 0625618050 BALL BEARING 61805 C3 |
601 Kč | |
| 31 | 0991050102 FLAT H.SCEW DIN7991-M5X10 10.9 |
29 Kč | |
| 32 | 0472260120 LOCK RING DIN0472-26X1,2 |
20 Kč | |
| 33 | 0093251209 SPRING WASHER 12,2X25X0,9 |
55 Kč | |
| 34 | 0402040980 NEEDLE ROL.DIN5402 NRB 4X9,8 |
23 Kč | |
| 35 | 54632095000 NEEDLE SLEEVE HK 1412 14X20X12 |
97 Kč | |
| 36 | 49033031000 STOP DISK 14,3X20X1 |
39 Kč | |
| 37 | 0471140100 RETAINING RING DIN 471 14X1 |
5 Kč | |
| 38 | 49033031015 STOP DISK 14,2X22X1,5 |
41 Kč | |
| 39 | 0760142460 RADIAL SHAFT SEAL 14X24X6 B |
77 Kč | |
| 40 | 0025060166S HH COLLAR SCREW M6X16 TX30 SL |
29 Kč | |
| 41 | 50233041000 PAIR OF WASHERS M 6 NORDLOCK |
39 Kč | |
| 42 | 0025060166 HH COLLAR SCREW M6X16 TX30 |
28 Kč | |
| 43 | 0125080003 WASHER DIN 125 A -8.4 |
10 Kč | |
| 44 | 0349000050 WASHER DIN7349-5X15X2 |
17 Kč | |
| 45 | 0025050206 HH COLLAR SCREW M5X20 TX30 |
20 Kč | |
| 50 | 50232050001 STEEL WASHER 6,4X17X3 |
37 Kč | |
| 52 | 54634052300 SLEEVE FOR LOCKING LEVER |
63 Kč | |
| 54 | 54734031000 SHIFT LEVER CPL. 2-STROKE 2001 |
1 493 Kč | |
| 56 | 54634032100 SHIFTING LEVER SPRING 250 |
52 Kč | |
| 57 | 54634031050 BOLT 6X25 FOR SHIFT LEVER |
86 Kč | |
| 58 | 54634131000 STEP PLATE FOR SHIFT LEVER 250 |
494 Kč |
