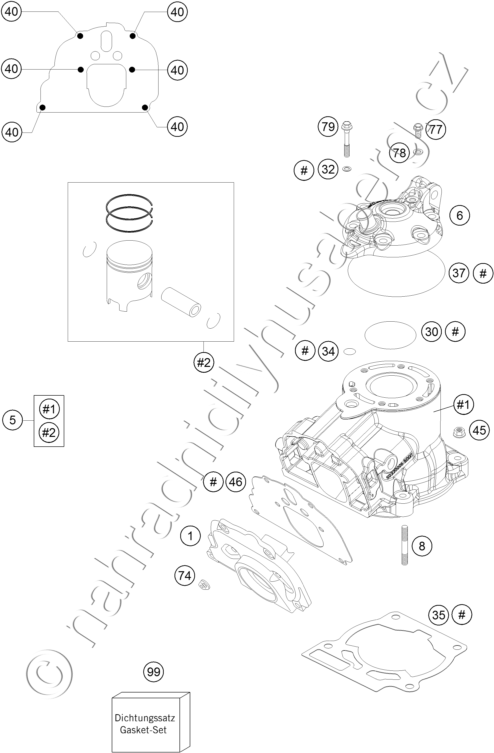

Díly pro CYLINDER, CYLINDER HEAD
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 50337001200 INTERMEDIATE FLANGE 125 06 |
1 288 Kč | |
| 5 | 50330038600 CYLINDER+PISTON CPL. |
19 130 Kč | |
| 6 | 50330006600 CYLINDERHEAD 125 SX/EXC 2011 |
3 047 Kč | |
| 8 | 0835080276 STUD DIN0835-M 8X27 |
52 Kč | |
| 30 | 0770062020 O-RING 62,00X2,00 VITON |
57 Kč | |
| 32 | 0603070121 CU-SEAL RING DIN7603- 7,3X12X1 |
23 Kč | |
| 34 | 0770012021 O-RING 12X2 VITON GREEN |
25 Kč | |
| 35 | 50330035020 CYLINDER BASE GASKET 0,20MM |
94 Kč | |
| 35 | 50330035025 CYLINDER BASE GASKET 0,25MM |
94 Kč | |
| 35 | 50330035040 CYLINDER BASE GASKET 0,40MM |
94 Kč | |
| 35 | 50330035050 CYLINDER BASE GASKET 0,50MM |
94 Kč | |
| 35 | 50330035075 CYLINDER BASE GASKET 0,75MM |
94 Kč | |
| 37 | 0770086020 O-RING 86X2 VITON75SHORE GREEN |
113 Kč | |
| 40 | 0014050203 HH COLLAR SCREW M 5X20 WS=6 |
55 Kč | |
| 45 | 50330045000 HH COLLAR NUT M 8 WS=12 |
23 Kč | |
| 46 | 50337046300 INTERMEDIATE FLANGE GASKET |
167 Kč | |
| 74 | 51005074000 RETAINING PLATE |
31 Kč | |
| 77 | 0025060106 HH COLLAR SCREW M6X10 TX30 |
28 Kč | |
| 78 | 0603061001 CU-SEAL RING DIN7603-6X10X1 |
20 Kč | |
| 79 | 50330079000 CYL. HEAD BOLT M 7X30 WS=10 |
77 Kč | |
| 99 | 50330097100 CYLINDER GASKET SET 125/200 07 |
823 Kč |
