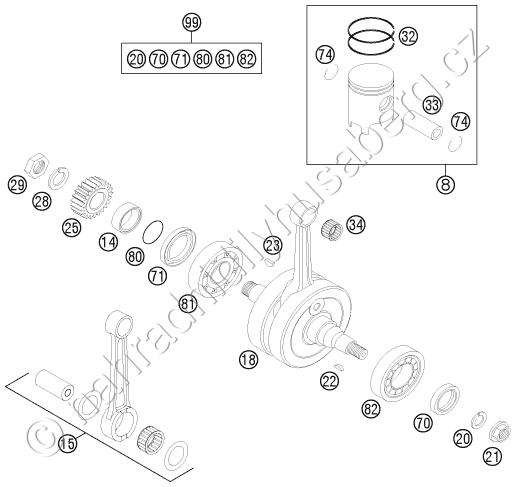

Díly pro CRANKSHAFT, PISTON
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 8 | 50330207100 II PISTON I CPL. 125 II |
3 999 Kč | |
| 8 | 50430007000 I PISTON I CPL. 125 |
3 999 Kč | |
| 14 | 54633014100 SPACER BUSHING 12MM |
459 Kč | |
| 15 | 50330015100 CON.ROD REPAIR KIT 125\'07 |
5 618 Kč | |
| 18 | 50330018300 CRANKSHAFT CPL. 125 EXC 2007 |
14 226 Kč | |
| 20 | 50230029012 LOCKING RING VSK 12 |
25 Kč | |
| 21 | 49030021000 COLLAR NUT M12X1 R/S |
100 Kč | |
| 22 | 0888030050 WOODRUFF KEY DIN6888-3X5X13 |
20 Kč | |
| 23 | 6946005 WOODRUFF KEY 5X6,5 HARDED |
33 Kč | |
| 25 | 50332023023 PRIM. PINION 23-T 125/200\'98 |
1 245 Kč | |
| 28 | 50230029016 LOCKING RING VSK 16 |
39 Kč | |
| 29 | 50330029000 HEXAGON NUT M 16 X 1,5 - L/S |
138 Kč | |
| 32 | 50330032600 TRAPEZOID RING 125 2008 |
743 Kč | |
| 33 | 50330033500 PISTON PIN 15X45,2 125 2001 |
359 Kč | |
| 34 | 51030034000 NEEDLE BEARING KBK 15X19X20 |
430 Kč | |
| 70 | 0760253570 SHAFT SEAL RING 25X35X7 BTSL |
283 Kč | |
| 71 | 0760324564 SHAFT SEAL RING 32X45X6,5 BT |
235 Kč | |
| 74 | 50330074500 WIRE LOCK RING 15X1 |
27 Kč | |
| 80 | 0770250020 O-RING 25,00X2,00 NBR 70 |
18 Kč | |
| 81 | 0625063055 BALL BEARING 6305 JR2 CS36 |
549 Kč | |
| 82 | 50330082000 CYL.ROLLER BEAR.NJ206 ET2XCS46 |
1 392 Kč | |
| 99 | 00050002300 CRANKSHAFT REP. KIT 125-200 |
2 229 Kč |
