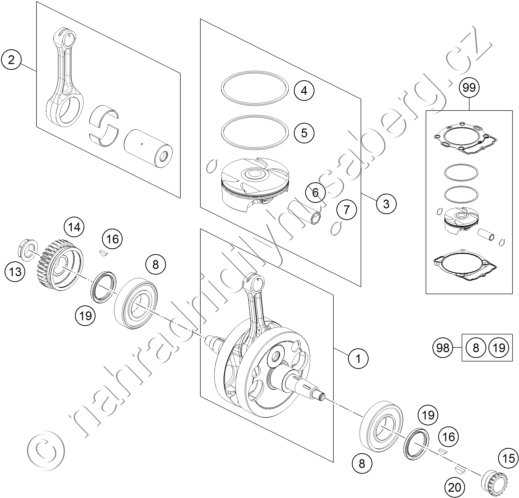

Díly pro CRANKSHAFT, PISTON
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 78730218000 CRANKSHAFT CPL. |
20 235 Kč | |
| 2 | 78730215044 CON ROD REP. KIT |
8 317 Kč | |
| 3 | 79630007000 I PISTON I CPL. |
7 717 Kč | |
| 3 | 79630007000 II PISTON II CPL. |
7 717 Kč | |
| 4 | 78930030000 COMPRESSION RING |
942 Kč | |
| 5 | 78930032000 OIL SCRAPER RING |
942 Kč | |
| 6 | 78130033000 PISTON PIN |
1 163 Kč | |
| 7 | 77330074000 CIRCLIP |
360 Kč | |
| 8 | 0625062071 BALL BEARING 6207 TM-SX07E 39 |
828 Kč | |
| 13 | 78030029200 NUT PRIMARY WHEEL M20X1,5 |
126 Kč | |
| 14 | 78132000032 PRIMARY GEAR |
1 487 Kč | |
| 15 | 78036014200 TIMING GEAR 18T. |
558 Kč | |
| 16 | 0888030037 WOODRUFF KEY DIN6888-3X3,7 |
21 Kč | |
| 19 | 0760354774 SHAFT SEAL RING 35X47X7 VITON |
214 Kč | |
| 20 | 0888030050 WOODRUFF KEY DIN6888-3X5X13 |
20 Kč | |
| 98 | 00050002308 CRANKSHAFT REP. KIT 450/500 |
1 963 Kč | |
| 99 | 00050000211 PISTON KIT GR. I 500 EXC 12-14 |
8 384 Kč | |
| 99 | 00050000212 PISTON KIT GR. II 500 EXC12-14 |
8 384 Kč |
