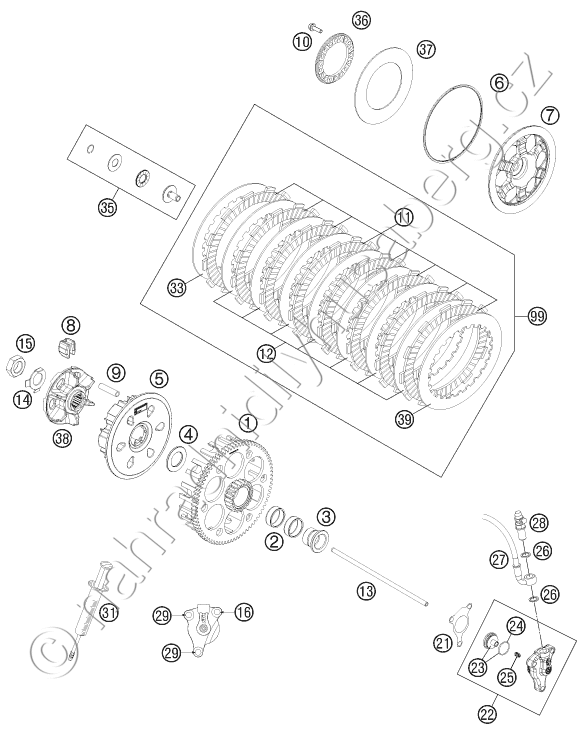

Díly pro CLUTCH
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 78132001076 CLUTCH CAGE |
4 988 Kč | |
| 2 | 0405252910 NEEDLE BEAR K 25X29X10 |
134 Kč | |
| 3 | 78132015100 COLLARSLEEVE |
441 Kč | |
| 4 | 77232009100 WASHER 21,8 X 37 X 3 |
158 Kč | |
| 5 | 78132002300 CLUTCH HUB |
1 791 Kč | |
| 6 | 78132013000 WASHER 112X118X1.5 |
158 Kč | |
| 7 | 78132003100 CLUTCH PRESSURE CAP |
741 Kč | |
| 8 | 78132025100 DAMPING RUBBER |
50 Kč | |
| 9 | 78132004000 SLEEVE 7,5X33.4 |
50 Kč | |
| 10 | 0025050166 HH COLLAR SCREW M5X16 TX30 |
20 Kč | |
| 11 | 59032011100 LINING DISC 2MM 04 |
372 Kč | |
| 12 | 59032010200 INTERMEDIATE DISC 1,4MM 2002 |
183 Kč | |
| 13 | 78132054100 PUSH ROD |
188 Kč | |
| 14 | 78132018000 TAB WASHER |
45 Kč | |
| 15 | 0936181505 HEXAGON NUT DIN0936-M18X1,5 R. |
102 Kč | |
| 16 | 0025060306 HH COLLAR SCREW M6X30 TX30 |
29 Kč | |
| 21 | 59032065000 GASKET FOR SLAVE CYLINDER |
45 Kč | |
| 22 | 54832061044 OUTPUT CYLINDER CPL. 06 |
2 251 Kč | |
| 23 | 54832066000 PISTON CPL. |
940 Kč | |
| 24 | 54832067000 O-RING |
28 Kč | |
| 25 | 54832069000 PRESSURE SPRING |
257 Kč | |
| 26 | 0603100141 SEALING RING DIN 7603 10X14X1 |
27 Kč | |
| 27 | 78132063000 CLUTCH PIPE |
1 503 Kč | |
| 28 | 62513020000 BLEEDER SCREW CPL. 05 |
445 Kč | |
| 29 | 0025060206 HH COLLAR SCREW M6X20 TX30 |
29 Kč | |
| 31 | 50329050000 VENT INJEKTION HYDR. CLUTCH |
937 Kč | |
| 33 | 59032010100 INTERMEDIATE DISC 1MM 2002 |
146 Kč | |
| 35 | 78132057044 PRESSURE PIECE CPL. |
494 Kč | |
| 36 | 78132006100 SPRING RING |
732 Kč | |
| 37 | 78132005000 BELLEVILLE SPRING 71X115X1,5 I |
413 Kč | |
| 38 | 78132002111 HUB |
1 128 Kč | |
| 39 | 78932010000 INTERMEDIATE DISC 1MM |
204 Kč | |
| 99 | 79532010033 CLUTCH DISC PACKAGE |
3 733 Kč |
