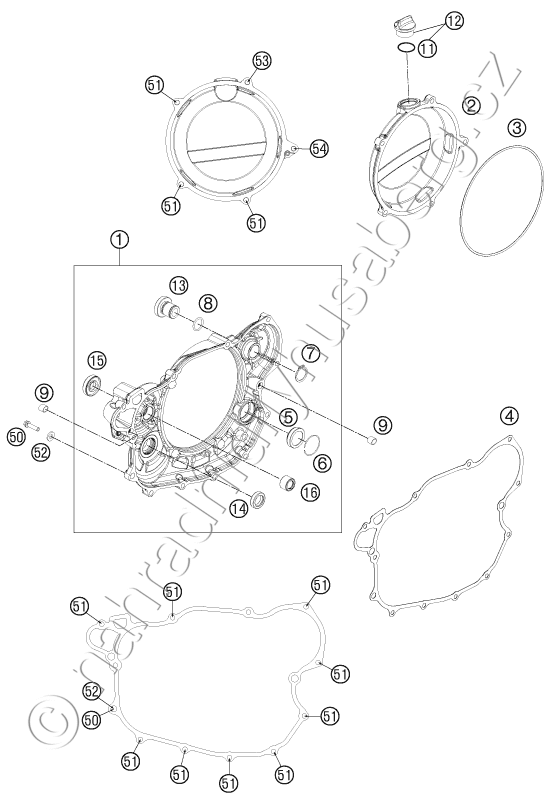

Díly pro CLUTCH COVER
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 78130001244 CLUTCH COVER CPL. |
5 803 Kč | |
| 2 | 7813012600089 OUTER CLUTCH COVER |
1 443 Kč | |
| 3 | 78130027000 GASKET - CLUTCH OUTER COVER |
134 Kč | |
| 4 | 78130025000 CLUTCH COVER GASKET |
430 Kč | |
| 5 | 78030095100 OIL LEVEL GLASS VITON |
217 Kč | |
| 6 | 61030019050 CIRCLIP OIL LEVEL GLASS 03 |
29 Kč | |
| 7 | 0471190120 CIRCLIP DIN0471-19X1,2 |
5 Kč | |
| 8 | 0770160021 O-RING 16,00X2,00 VITON |
25 Kč | |
| 9 | 49030090100 DOWEL 9,8 X7X10 |
52 Kč | |
| 11 | 0770191015 O-RING 19,00X3,00 NBR |
15 Kč | |
| 12 | 79430020033 OIL FILLER CAP M24X3 WITH O-R |
89 Kč | |
| 13 | 83033056000 KICK-STARTER PLUG |
191 Kč | |
| 14 | 0760142460 RADIAL SHAFT SEAL 14X24X6 B |
77 Kč | |
| 15 | 0760123073 SHAFT SEAL RING 12X30X7 PTFE |
212 Kč | |
| 16 | 0618121912 NEEDLE BUSH NK1212 |
377 Kč | |
| 50 | 78030080000 LOCATING SCREW |
60 Kč | |
| 51 | 0025060256 HH COLLAR SCREW M6X25 TX30 |
29 Kč | |
| 52 | 58030081000 CU-SEAL RING 8 X 14 X 3 |
42 Kč | |
| 53 | 0025060556 HH COLLAR SCREW M6X55 TX30 |
29 Kč | |
| 54 | 0025060606 HH COLLAR SCREW M6X60 TX30 |
29 Kč |
