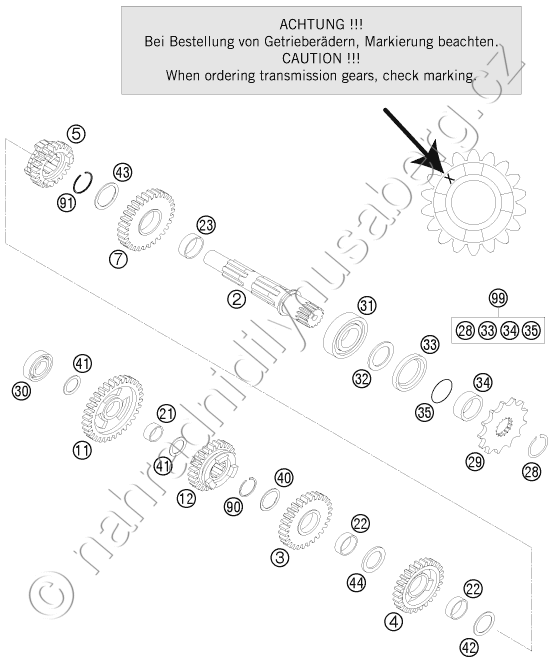

Díly pro TRANSMISSION II - COUNTERSHAFT
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 2 | 50333002000 COUNTER SHAFT 125/200 \'98 |
3 577 Kč | |
| 3 | 50333003100 IDLE G.3RD G.28-T \'\'3S28H\'\' 04 |
1 682 Kč | |
| 4 | 50333004000 IDLE G.4TH G.26-T \'\'4S26\'\' \'98 |
1 682 Kč | |
| 5 | 50333005100 SLIDING G.6TH G.20-T \'\'6G20\'\'\'98 |
1 682 Kč | |
| 7 | 50333006100 IDLER G. 2ND G. 31-T \'\'2G31\'\'\'98 |
1 921 Kč | |
| 11 | 50333011300 IDLER G. 1ST G. 33-T \'\'1G33\'\'\'98 |
1 682 Kč | |
| 12 | 50333012000 SLIDING G.5TH G.25-T \'\'5S25\'\'\'98 |
1 682 Kč | |
| 21 | 50333021000 IDLER GEAR BUSHING 17X20X9,7 B |
578 Kč | |
| 22 | 50333022000 IDLER GEAR BUSHING 22X25X8,1 C |
578 Kč | |
| 23 | 50333023000 IDLER GEAR BUSHING 25X28X9,7 D |
578 Kč | |
| 28 | 52033096000 LOCK RING DIN0471-25X1,64SD |
39 Kč | |
| 29 | 79233029013 SPROCKET 13T |
360 Kč | |
| 29 | 79233029014 SPROCKET 14T |
360 Kč | |
| 30 | 0625060031 BALL BEARING 6003 TN9 C4 |
219 Kč | |
| 31 | 0625062054 BALL BEARING 6205 C3 NTN |
292 Kč | |
| 32 | 56033020000 STOP RING |
87 Kč | |
| 33 | 0760324571 SHAFT SEAL RING 32X45X7 BSLNBR |
65 Kč | |
| 34 | 54633014100 SPACER BUSHING 12MM |
459 Kč | |
| 35 | 0770230020 O-RING 23,00X2,00 NBR70 |
17 Kč | |
| 40 | 50333040000 STOP DISC 22,2X27,8X1 A |
73 Kč | |
| 41 | 50333041000 STOP DISC 17,2X26X1 B |
45 Kč | |
| 42 | 50333042000 STOP DISK 22,2X28X1 C |
58 Kč | |
| 43 | 50333043000 STOP DISC 25,2X32X1 |
73 Kč | |
| 44 | 50333044000 STOP DISC 22,2X30X2,5 |
73 Kč | |
| 90 | 50133090000 LOCK RING 22X1,2 |
28 Kč | |
| 91 | 0417025000 CIRCLIP SW25 |
86 Kč | |
| 99 | 00050000943 COUNTER SHAFT REP.KIT 125-200 |
538 Kč |
