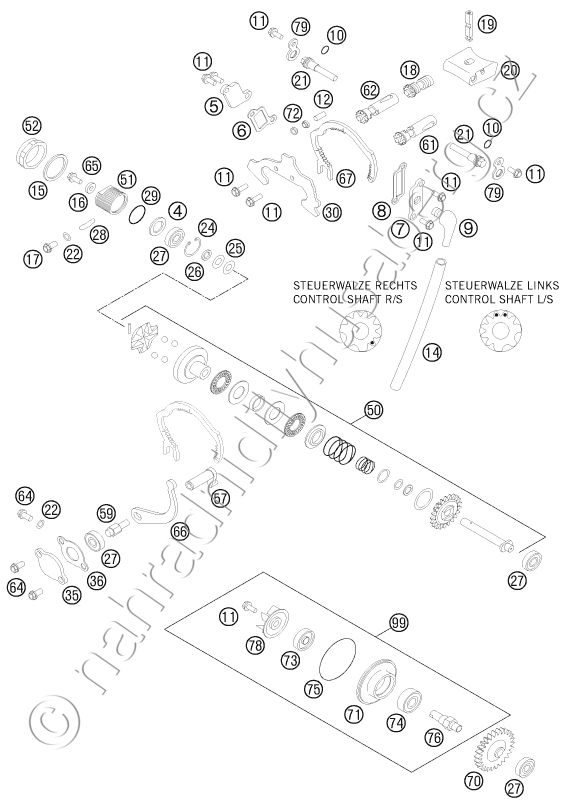

Díly pro EXHAUST CONTROL
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 4 | 49033031015 STOP DISK 14,2X22X1,5 |
41 Kč | |
| 5 | 50337005100 SIDE COVER R/S 2007 |
58 Kč | |
| 6 | 50337006100 GASKET SIDE COVER R/S 07 |
58 Kč | |
| 7 | 50337007200 SIDE COVER LEFT 2007 |
150 Kč | |
| 8 | 50337008100 GASKET SIDE COVER L/S 07 |
53 Kč | |
| 9 | 51030022000 ANGLE PIECE 90 DEGREE M10X1 |
43 Kč | |
| 10 | 0770008020 O-RING 8,00X2,00 NBR |
4 Kč | |
| 11 | 0014050123 HH COLLAR SCREW M 5X12 WS=6 |
29 Kč | |
| 12 | 0402051600 NEEDLE ROL. DIN5402 NRB 5X15,8 |
53 Kč | |
| 14 | 50332095200 TUBE RUBBER 6X9 DVOH 200MM |
163 Kč | |
| 15 | 0603262322 CU-SEAL RING DIN7603-26X32X2 |
29 Kč | |
| 16 | 50337050064 WASHER 5,2 X 12 X 3 |
50 Kč | |
| 17 | 0025060106 HH COLLAR SCREW M6X10 TX30 |
28 Kč | |
| 18 | 50337018144 ECCENTRIC FOR CRANKBOLT 125 09 |
932 Kč | |
| 19 | 50337019000 CRANK BOLT F.CONTROL FL.125\'98 |
578 Kč | |
| 20 | 50337020544 CONTROL FLAP 125 CPL. |
1 007 Kč | |
| 21 | 50337021100 AXLE FOR CONTRIL FLAP 2007 |
578 Kč | |
| 22 | 0603061001 CU-SEAL RING DIN7603-6X10X1 |
20 Kč | |
| 24 | 0472022100 CIRCLIP DIN0472-22X1 |
18 Kč | |
| 25 | 0093821606 WASHER DIN2093-8,2X16X0,6 |
31 Kč | |
| 26 | 50337050063 SPACER BUSHING 8X12X2,3 |
77 Kč | |
| 27 | 0625006082 BALL BEARING 608 RS C3 |
238 Kč | |
| 28 | 00099300011 O-RINGSTRING 4MM NBR 70 PER/M |
92 Kč | |
| 29 | 0770160030 O-RING 16,00X3,00 NBR 70 |
17 Kč | |
| 30 | 50337030000 SHEET METAL GUIDE 3MM 125\'98 |
212 Kč | |
| 35 | 50337035000 CLOSING COVER \'98 |
77 Kč | |
| 36 | 50337035050 CLOSING COVER GASKET 1MM |
61 Kč | |
| 50 | 50337050044 CENTRIFUGAL TIMER CPL. 125\'98 |
4 071 Kč | |
| 51 | 50337050062 BUSHING HOLDER M 26X1 \'98 |
390 Kč | |
| 52 | 50337050061 CLOSING NUT M 26X1 WS=30 |
159 Kč | |
| 57 | 50337057000 CONTROL LEVER 125/200\'98 |
761 Kč | |
| 59 | 50337059000 CONTROL SHAFT M 6 WS=10 \'98 |
124 Kč | |
| 61 | 50337061144 CONTROL SHAFT CPL.L/S 125 2001 |
937 Kč | |
| 62 | 50337062144 CONTROL SHAFT CPL.R/S 125 2001 |
937 Kč | |
| 64 | 0025060126 HH COLLAR SCREW M6X12 TX30 |
29 Kč | |
| 65 | 0025050126 HH COLLAR SCREW M5X12 TX30 |
36 Kč | |
| 66 | 50337066000 LEVER F. CONTROL SEGMENT \'98 |
251 Kč | |
| 67 | 50337067000 CONTROL SHAFT SEGMENT 125\'98 |
498 Kč | |
| 70 | 50335054026 DRIVE WHEEL 26-T 125/200\'98 |
66 Kč | |
| 71 | 50335056000 BUSHING SUPPORT WATER PUMP \'98 |
387 Kč | |
| 72 | 50337072000 ROLLER GUIDE 5X6,1X8X4 \'98 |
79 Kč | |
| 73 | 0760082472 SHAFT SEAL RING 8X24X7 A DUO |
61 Kč | |
| 74 | 0625060001 BALL BEARING 6000/C3 |
203 Kč | |
| 75 | 0770049025 O-RING 49,00X2,50 NBR |
23 Kč | |
| 76 | 50335054150 WATER PUMP SHAFT |
377 Kč | |
| 78 | 54835005000 WATER PUMP WHEEL 07 |
66 Kč | |
| 79 | 50337079000 LOCK METAL SHEET 2MM \'98 |
31 Kč | |
| 99 | 54835055115 WATER PUMP REP. KIT SX 11-14 |
1 096 Kč |
