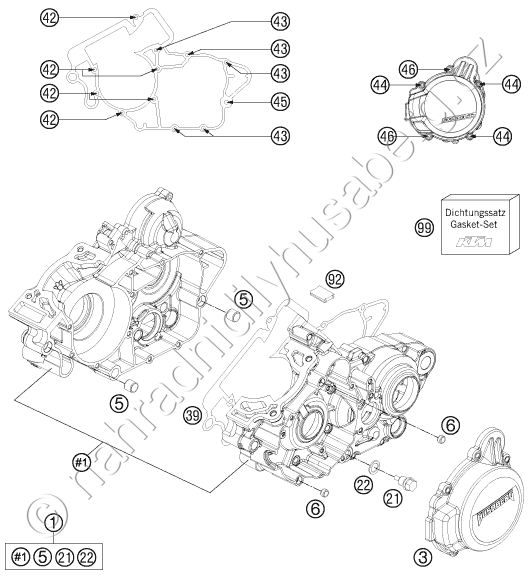

Díly pro ENGINE CASE
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 52430000033 ENGINE CASE KPL. 125-200 13 |
15 659 Kč | |
| 3 | 50330502000 IGNITION COVER HUSABERG |
1 389 Kč | |
| 5 | 54630027000 DOWEL BUSHING 13,8X11X12 |
143 Kč | |
| 6 | 45230024000 DOWEL 9,8X7X5.5 |
53 Kč | |
| 21 | 58030021100 OILDRAIN PLUG WITH MAGNET |
196 Kč | |
| 22 | 58038022000 CU-SEAL RING DIN7603-12X18X1,5 |
28 Kč | |
| 39 | 50330039000 ENGINE CASE GASKET 0,5MM \'98 |
246 Kč | |
| 42 | 0025060506 HH COLLAR SCREW M6X50 TX30 |
29 Kč | |
| 43 | 0025060556 HH COLLAR SCREW M6X55 TX30 |
29 Kč | |
| 44 | 0025060206 HH COLLAR SCREW M6X20 TX30 |
29 Kč | |
| 45 | 0025060606 HH COLLAR SCREW M6X60 TX30 |
29 Kč | |
| 46 | 0025060256 HH COLLAR SCREW M6X25 TX30 |
29 Kč | |
| 92 | 50330092000 OIL GUARD GROMMET 25X31 \'98 |
66 Kč | |
| 99 | 50330099201 GASKET SET |
3 263 Kč |
