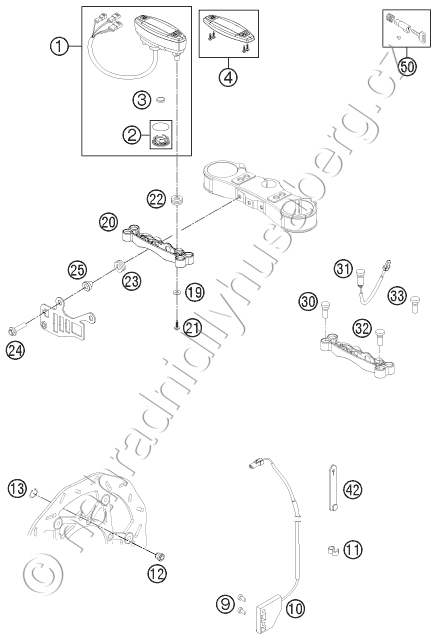

Díly pro INSTRUMENTS / LOCK SYSTEM
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 54814069200 SPEEDOMETER KM/H F. 17\'\' 2005 |
6 353 Kč | |
| 2 | 54814069010 BATTERY COVER F. SPEEDOM. 2005 |
283 Kč | |
| 3 | 58314068000 BATTERY F. SPEEDOM. M.A.E. 02 |
156 Kč | |
| 4 | 54814069020 SPEEDOMETER TOP PART 05 |
878 Kč | |
| 9 | 0084040083 CYL.HEAD SCREW DIN0084-M 4X8 A |
5 Kč | |
| 10 | 80014068100 CABLE FOR SPEEDOM. SM 05 |
2 258 Kč | |
| 11 | 55011022100 CLAMP D=6/8MM, BLACK |
34 Kč | |
| 12 | 81214069050 MAGNET FOR SPEEDOMETER |
249 Kč | |
| 13 | 0471009104 CIRCLIP DIN0471- 9X1 INOX |
39 Kč | |
| 19 | 0021050003 WASHER DIN 9021 A - 5.3 |
17 Kč | |
| 20 | 81214060000 SPEEDOMETER BRACKET |
66 Kč | |
| 21 | 0081050121 EJOT PT SCREW K50X12 |
21 Kč | |
| 22 | 58214069051 RUBBER GROMMET 16X10.8X3 |
61 Kč | |
| 23 | 31008060000 RUBBER GROMMET D=8MM OPEN |
61 Kč | |
| 24 | 0024060256 HH COLLAR SCREW M6X25 TX30 |
29 Kč | |
| 25 | 59030060050 BUSHING F. SPROCKET COVER RAC. |
58 Kč | |
| 30 | 58011024300 FLASHER INDICAT.LIGHT GREEN\'98 |
68 Kč | |
| 31 | 81214083000 INDICATOR LIGHT LED YELLOW FI |
501 Kč | |
| 32 | 58011021300 H.BEAM INDICATOR LIGHT BLUE\'98 |
68 Kč | |
| 33 | 81214086000 INDICATOR LIGHT RESERVE |
95 Kč | |
| 42 | 60011093045 RUBBER CABLE TIE 45MM 03 |
57 Kč | |
| 50 | 78003035000 STEERING HEAD LOCK 08 |
773 Kč |
