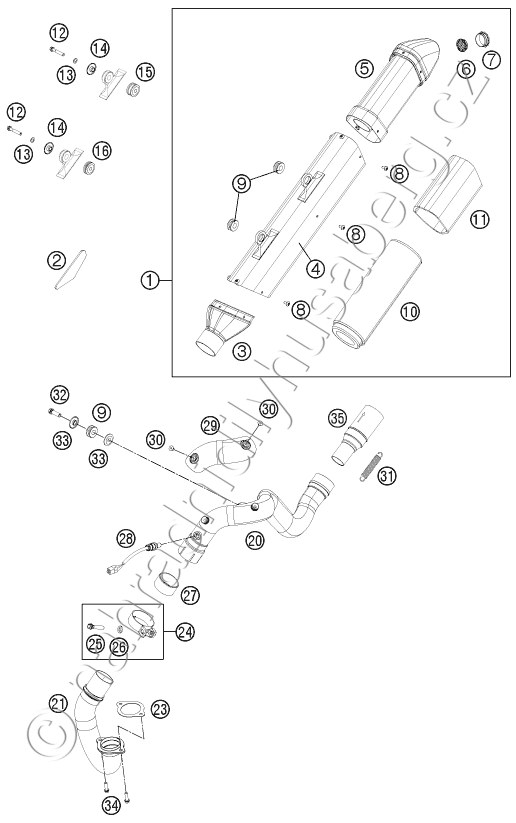

Díly pro EXHAUST SYSTEM
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 81205081000 SILENCER HUSABERG |
7 672 Kč | |
| 2 | 77308013050 THERMAL PROTECTION FOIL 07 |
241 Kč | |
| 3 | 77005081109 CONNECTING CAP CPL. EXC-F 08 |
4 209 Kč | |
| 4 | 81205081050 SILENCER JACKET HUSABERG |
3 374 Kč | |
| 5 | 77005081007 ENDCAP W. SILENCER ELEMENT 09 |
4 858 Kč | |
| 6 | 77005081065 THROTTLE ELEMENT CPL. EXC 07 |
340 Kč | |
| 7 | 77005081055 SIL. ELEMENT EXC-F 07 |
151 Kč | |
| 8 | 58605083010 SCREW TORX M5X10 05 |
34 Kč | |
| 9 | 77205068000 DAMP. COMPON. BLACK |
69 Kč | |
| 10 | 77005078400 STUFFING YARN 400G |
1 703 Kč | |
| 11 | 77005078050 STUFFING YARN REAR |
515 Kč | |
| 12 | 0025060356 HH COLLAR SCREW M6X35 TX30 |
29 Kč | |
| 13 | 0137060003 SPRING WASHER DIN 137 B - 6 |
17 Kč | |
| 14 | 77205169000 BUSHING 7.5x12x28x8.3 11 |
82 Kč | |
| 15 | 81205069000 SILENCER SPACER REAR |
159 Kč | |
| 16 | 81205169000 SILENCER SPACER FRONT |
159 Kč | |
| 20 | 81205208000 BEND REAR FS WITH LAMBDA |
6 681 Kč | |
| 21 | 81705007100 EXHAUST MANIFOLD FRONT 570CCM |
6 821 Kč | |
| 23 | 78036041000 EXHAUST FLANGE GASKET |
195 Kč | |
| 24 | 61005051100 CLAMP CPL. D=53,2MM 05 |
703 Kč | |
| 25 | 0025080356 HH COLLAR SCREW M8X35 TX40 |
33 Kč | |
| 26 | 0125080003 WASHER DIN 125 A -8.4 |
10 Kč | |
| 27 | 58405005001 GRAPHITRING 45X50X25 |
328 Kč | |
| 28 | 75041090100 LAMBDA SENSOR |
3 560 Kč | |
| 29 | 81205011000 HEAT SHIELD HUSABERG |
437 Kč | |
| 30 | 0991060082 FLAT H.SCREW M6X8 DIN7991 NIRO |
17 Kč | |
| 31 | 50305016000 TEN.SPRING L=62MM EY.MOVEABLE |
98 Kč | |
| 32 | 0025080306 HH COLLAR SCREW M8X30 TX40 |
32 Kč | |
| 33 | 59405069000 BUSHING FOR EXHAUST SUPPORT 03 |
140 Kč | |
| 34 | 0025060206 HH COLLAR SCREW M6X20 TX30 |
29 Kč | |
| 35 | 77005009033 CATALYST WELDED EXC 08 |
8 607 Kč |
