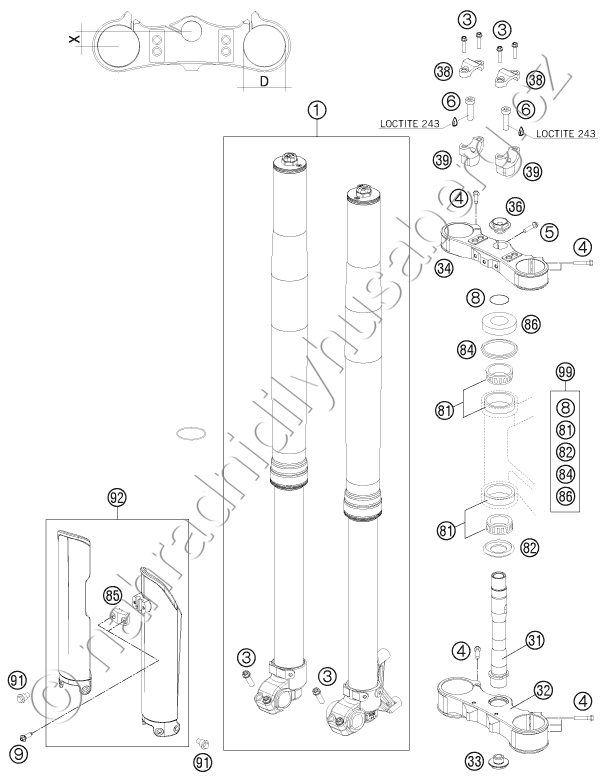

Díly pro FRONT FORK, TRIPLE CLAMP
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 14457J0301 FORK HUSABERG FS 570 |
43 830 Kč | |
| 3 | 0025080256 HH COLLAR SCREW M8X25 TX40 |
33 Kč | |
| 4 | 0025080356 HH COLLAR SCREW M8X35 TX40 |
33 Kč | |
| 5 | 0025080256S HH COLLAR SCREW M8X25 TX40 |
33 Kč | |
| 6 | 0032100356S AH-COLLAR SCREW M10X35 ISA45 |
36 Kč | |
| 8 | 0770025035 O-RING 25X3,55 NBR70 05 |
17 Kč | |
| 9 | 0017060206 SCREW F. PLASTIC K60X20AL SW6 |
34 Kč | |
| 31 | 59401033100 FORK TUBE EXC L=237MM 05 |
1 860 Kč | |
| 32 | 5940103111530 BOTTOM TRIPLE CLAMP VAR. 14-16 |
9 315 Kč | |
| 33 | 54801036100 STE.HEAD SCR. M20X1,5 WS=27 SL |
249 Kč | |
| 34 | 5940103411530 TOP TRIPLE CLAMP VAR. 14-16 |
5 387 Kč | |
| 36 | 54801036000 STEER.HEAD SCREW M20X1,5 WS=27 |
185 Kč | |
| 38 | 77201038000 HANDLEBAR CLAMP 28MM |
387 Kč | |
| 39 | 59401039037 HANDLEB.SUPP. D=28MM H=37MM 05 |
619 Kč | |
| 81 | 54201081100 TAPERED ROLLER BEARING CPL. 06 |
756 Kč | |
| 82 | 77701084000 O-RING SUPPORT W. SEALING LIP |
332 Kč | |
| 84 | 54601184000 STEARING HEAD GASKET TOP |
114 Kč | |
| 85 | 58201085000 CLAMP F.SPEED CABLE D=8MM 2001 |
Na dotaz | 1 |
| 86 | 54201086000 STEERING HEAD COVER |
82 Kč | |
| 91 | 59001092050 SPECIAL SCREW M6X12,5 WS=8 |
29 Kč | |
| 92 | 5900109410030 FORK PROT. L/S+R/S BLACK 10 |
764 Kč | |
| 99 | 00050000930 STEARING HEAD REP. KIT 06-15 |
1 900 Kč |
