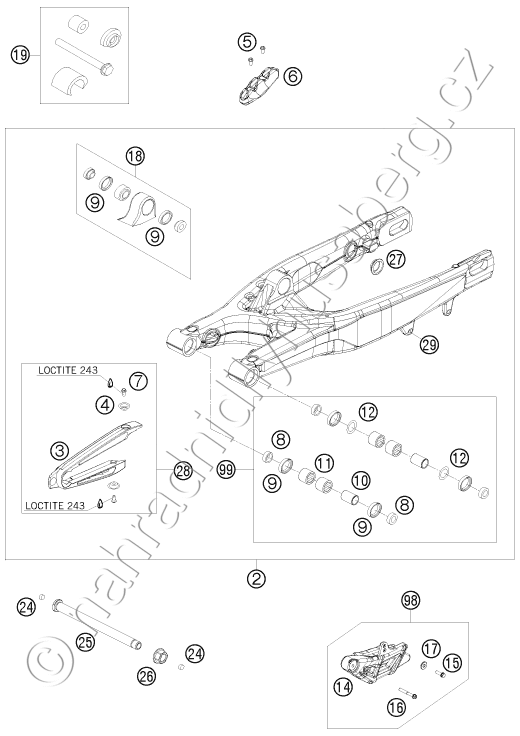

Díly pro SWING ARM
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 2 | 78004030244 SWINGARM CPL. \'11 |
17 534 Kč | |
| 3 | 77304066000 CHAIN SLIDING PROTECTION |
339 Kč | |
| 4 | 77304066050 CHAIN SLIDER BUSHING |
39 Kč | |
| 5 | 0009050106 EJOT SPIRAL SCREW SF M5X10-K |
20 Kč | |
| 6 | 77313047000 BRAKE HOSE GUIDE LOWER 07 |
76 Kč | |
| 7 | 59009062013 SPECIAL SCREW M6X13 WS=8 10.9 |
20 Kč | |
| 8 | 77704034000 SUPPORT F. SHAFT SEAL RING 16 |
233 Kč | |
| 9 | 0760253270 RADIAL SHAFT SEAL 25X32X7 |
60 Kč | |
| 10 | 59404032000 BEARING SLEEVE 17X22X38,7 03 |
183 Kč | |
| 11 | 0618222812 NEEDLEBEAR HK2212V 22/28/12 MB |
199 Kč | |
| 12 | 54603036000 STOP DISK 22,2X31,7X1 |
39 Kč | |
| 14 | 77304070100 |
Na dotaz | 1 |
| 15 | 59009062019 SPECIAL SCREW M6X19 WS=8 10.9 |
31 Kč | |
| 16 | 0025060456 HH COLLAR SCREW M6X45 TX30 |
29 Kč | |
| 17 | 77304070130 BUSH. F. CHAIN FAIL. PROT. 07 |
60 Kč | |
| 18 | 50304090144 PIVOT BEARING+BUSH. PDS \'11 |
1 136 Kč | |
| 19 | 50329000044 TOOL BEARING MOUNTING PDS |
7 731 Kč | |
| 24 | 55009086000 PLUG SFL13 |
31 Kč | |
| 25 | 77304037000 SWINGARM BOLT M16X1,5 07 |
1 192 Kč | |
| 26 | 54804038000 SELF LOCK.NUT M16X1,5 WS=19 03 |
246 Kč | |
| 27 | 58404041100 CLOSING COVER ROUND 03 |
25 Kč | |
| 28 | 77304066010 CHAIN GUARD CPL. 07-11 |
366 Kč | |
| 29 | 54603055051 PRESS IN NUT M6 STEEL ZINC |
33 Kč | |
| 98 | 77304070210 CHAIN GUIDE KIT REAR 07-13 |
1 596 Kč | |
| 99 | 59404230110 SWINGARM-REPAIR KIT 05-14 |
1 253 Kč |
