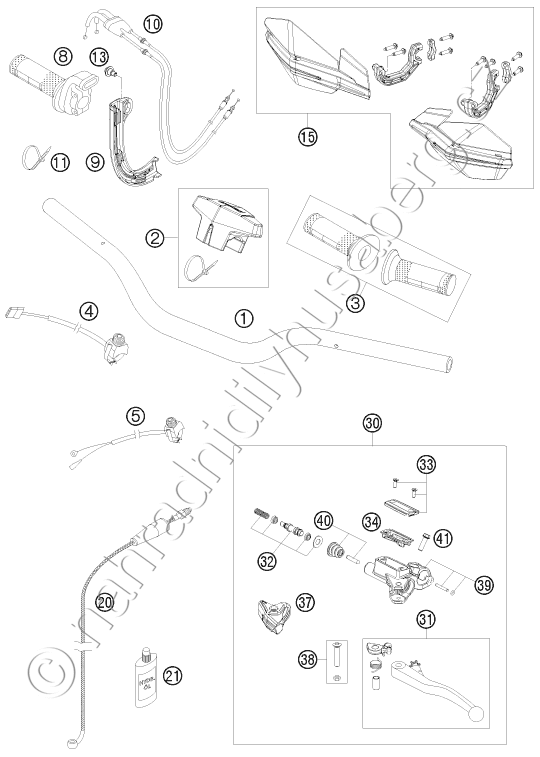

Díly pro HANDLEBAR, CONTROLS
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 7730200110017 HANDLEBAR RENTHAL SX 28MM 08 |
2 819 Kč | |
| 2 | 81202002000 FATBAR PAD HUSABERG 09 |
Na dotaz | 1 |
| 3 | 81202021000 GRIP SET |
568 Kč | |
| 4 | 78111074000 STARTER BUTTON GREY 13 |
703 Kč | |
| 5 | 50311089200 SHORT CIRCUIT BUTTON 02 |
626 Kč | |
| 8 | 81202010000 THROTTLE GRIP CPL. 09 |
1 264 Kč | |
| 9 | 81202091050 THROTTLE CABLE GUIDANCE |
84 Kč | |
| 10 | 81202091000 THROTTLE CABLE HUSABERG 2009 |
1 532 Kč | |
| 11 | 44011076200 CABLE TIE 200/3,6MM BLACK |
10 Kč | |
| 13 | 59001092050 SPECIAL SCREW M6X12,5 WS=8 |
29 Kč | |
| 15 | 7800207900030 HANDGUARD CPL. |
Na dotaz | 1 |
| 20 | 81232063000 CLUTCH PIPE 09 |
2 904 Kč | |
| 21 | 50302036200 OIL FOR HYD. CLUTCH 100 ML |
365 Kč | |
| 30 | 50302030300 MASTER CYLINDER CPL. 9,5MM 09 |
6 325 Kč | |
| 31 | 50302031300 CLUTCH LEVER CPL. 2009 |
863 Kč | |
| 32 | 50302032100 REP.KIT PISTON 9,5MM 09 |
1 485 Kč | |
| 33 | 50302033200 COVER HYDR. CLUTCH CPL. 09 |
539 Kč | |
| 34 | 50302034100 RUBBER FOR RESERVOIR 09 |
334 Kč | |
| 37 | 76502037000 PROTECT.CAP FOR LEVER PERCH 13 |
562 Kč | |
| 38 | 50302038200 LEVER SCREW SHORT CPL. 09 |
437 Kč | |
| 39 | 83013005000 CLAMP, CYL. PIN, O-RING |
1 205 Kč | |
| 40 | 76502046000 PUSH ROD CPL. 13 |
635 Kč | |
| 41 | 0025060166 HH COLLAR SCREW M6X16 TX30 |
28 Kč |
