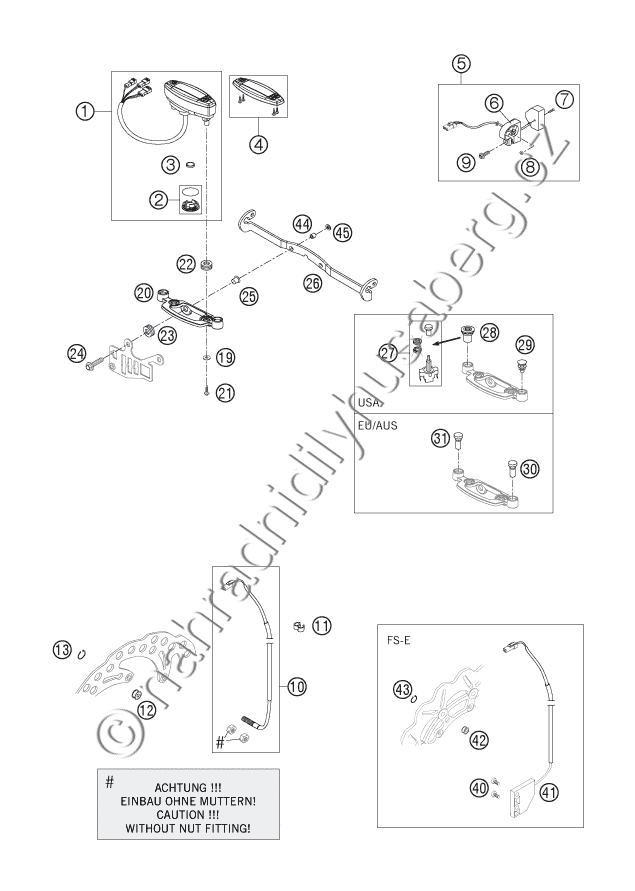

Díly pro SPEEDOMETER
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 54814069000 SPEEDOMETER KM/H F. 21\'\' 2005 |
6 992 Kč | |
| 1 | 54814069200 SPEEDOMETER KM/H F. 17\'\' 2005 |
6 353 Kč | |
| 2 | 54814069010 BATTERY COVER F. SPEEDOM. 2005 |
283 Kč | |
| 3 | 58314068000 BATTERY F. SPEEDOM. M.A.E. 02 |
156 Kč | |
| 4 | 54814069020 SPEEDOMETER TOP PART 05 |
878 Kč | |
| 5 | 54814073000 TRIPMASTER-SWITCH 05 |
2 178 Kč | |
| 6 | 50314068050 CLAMP FOR TRIPMASTER-SWITCH 03 |
79 Kč | |
| 7 | 0965040125 FLAT HEAD SCREW DIN0966-M 4X20 |
15 Kč | |
| 8 | 0934040003 HEXAGON NUT DIN0934-M 4 |
17 Kč | |
| 9 | 0017060205 SCREW FOR PLASTIC K60X20 SW6 |
29 Kč | |
| 10 | 54814068000 CABLE FOR DIGITAL SPEEDOM. 05 |
1 171 Kč | |
| 11 | 55011022100 CLAMP D=6/8MM, BLACK |
34 Kč | |
| 12 | 54814069050 MAGNET FOR DIGITAL SPEEDOM. 03 |
288 Kč | |
| 13 | 0471009104 CIRCLIP DIN0471- 9X1 INOX |
39 Kč | |
| 19 | 0021050003 WASHER DIN 9021 A - 5.3 |
17 Kč | |
| 20 | 54814060000 SPEEDOMETER BRACKET 05 |
114 Kč | |
| 21 | 0081050121 EJOT PT SCREW K50X12 |
21 Kč | |
| 22 | 58214069051 RUBBER GROMMET 16X10.8X3 |
61 Kč | |
| 23 | 31008060000 RUBBER GROMMET D=8MM OPEN |
61 Kč | |
| 24 | 0014060253 HH COLLAR SCREW M 6X25 WS=8 |
23 Kč | |
| 24 | 0025060306 HH COLLAR SCREW M6X30 TX30 |
29 Kč | |
| 25 | 45239060050 COLLAR BUSHING 6,3X8X13X9,5 |
77 Kč | |
| 26 | 58314033100 FLASHER BRACKET 2002 |
573 Kč | |
| 27 | 55011599000 PULL SWITCH LOOSE |
219 Kč | |
| 28 | 54814060050 SPEC. NUT F. PULL SWITCH WS=17 |
89 Kč | |
| 29 | 50210086000 COVERING CAP SFL16 |
33 Kč | |
| 30 | 58011021300 H.BEAM INDICATOR LIGHT BLUE\'98 |
68 Kč | |
| 31 | 58011024300 FLASHER INDICAT.LIGHT GREEN\'98 |
68 Kč | |
| 40 | 0084040083 CYL.HEAD SCREW DIN0084-M 4X8 A |
5 Kč | |
| 41 | 80014068100 CABLE FOR SPEEDOM. SM 05 |
2 258 Kč | |
| 42 | 80014069150 MAGNET FOR DIGITAL SPEEDOM. 05 |
345 Kč | |
| 43 | 0471100011 CIRCLIP DIN0471-10X1 |
39 Kč | |
| 44 | 49030090100 DOWEL 9,8 X7X10 |
52 Kč | |
| 45 | 0988060121 WASHER 6X12X1 HRC 40-45 |
25 Kč |
