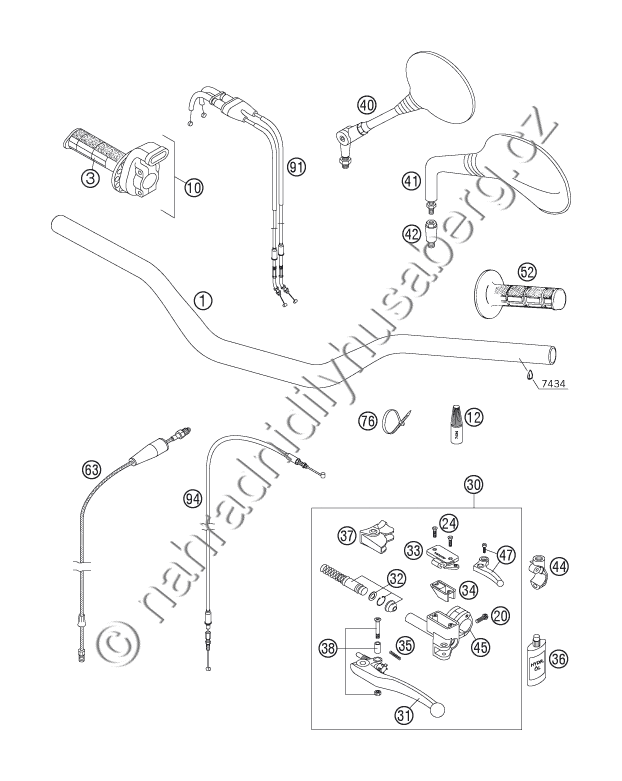

Díly pro HANDLEBAR, CONTROLS
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 5900210120017 HANDLEBAR D=28MM |
2 050 Kč | |
| 3 | 81202021000 GRIP SET |
568 Kč | |
| 10 | 81202010000 THROTTLE GRIP CPL. 09 |
1 264 Kč | |
| 12 | 6899792 GRIP GLUE |
Na dotaz | 1 |
| 20 | 0025060206 HH COLLAR SCREW M6X20 TX30 |
29 Kč | |
| 24 | 0965040123 FLAT HEAD SCREW DIN0965-M 4X12 |
17 Kč | |
| 30 | 59002030100 MASTER CYLINDER CPL. RACING 03 |
6 871 Kč | |
| 31 | 54602031000 CLUTCH LEVER SHORT CPL. 2003 |
889 Kč | |
| 31 | 59002031000 CLUTCH LEVER LONG CPL. 2003 |
889 Kč | |
| 32 | 59002032000 REP.KIT PISTON 9,5MM RAC. 2000 |
940 Kč | |
| 33 | 59002033000 COVER HYD.CLUTCH RACING 2000 |
906 Kč | |
| 34 | 50302034000 RUBBER FOR RESERVOIR \'98 |
334 Kč | |
| 35 | 59002035000 SPRING FOR CLUTCH LEVER 03 |
68 Kč | |
| 36 | 50302036200 OIL FOR HYD. CLUTCH 100 ML |
365 Kč | |
| 37 | 50302037000 PROTECT.CAP FOR LEVER PERCH\'98 |
291 Kč | |
| 38 | 50302038000 LEVER SCREW CPL. 125-200 \'98 |
416 Kč | |
| 40 | 58312040200 REAR MIRROR L/S FOLDABLE SC 02 |
586 Kč | |
| 41 | 58412040000 MIRROR L/S 98 |
586 Kč | |
| 41 | 58412041000 MIRROR R/S 98 |
586 Kč | |
| 42 | 58412040050 SUPPORT FOR MIRROR LC4 \'98 |
313 Kč | |
| 44 | 59002044000 CLAMP MIRROR WITH PIN |
852 Kč | |
| 45 | 50302030150 CLAMP WITH PIN 2000 |
619 Kč | |
| 47 | 59002047000 LEVER CPL. RACING 2000 |
416 Kč | |
| 52 | 81202021000 GRIP SET |
568 Kč | |
| 63 | 80032063000 CLUTCH PIPE HUSABERG 2004 |
1 894 Kč | |
| 76 | 44011076140 CABLE TIE 140/2,5MM BLACK |
10 Kč | |
| 76 | 44011076200 CABLE TIE 200/3,6MM BLACK |
10 Kč | |
| 91 | 59002091300 THR.CABLE\'\'OPEN-CLOSE\'\'KEIHIN 02 |
1 501 Kč | |
| 94 | 59002094000 DECOMPR. CABLE RACING 2000 |
599 Kč |
