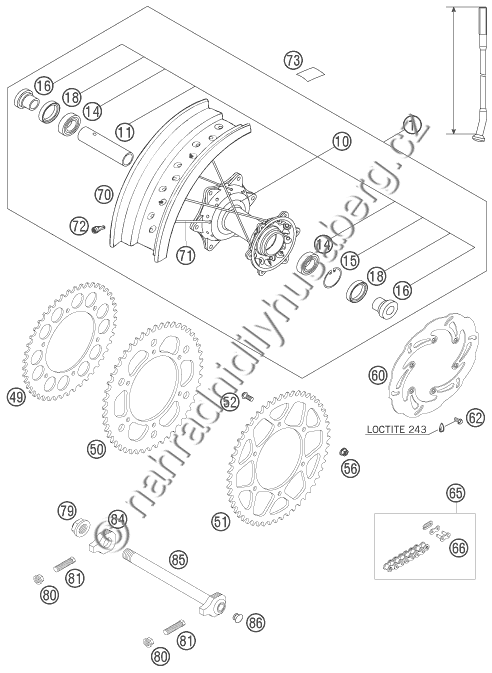

Díly pro REAR WHEEL 17\" FS-C
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 80010001444 REAR RIM CPL. 5X17\'\' |
17 550 Kč | |
| 10 | 26510010144 REARHUB CPL. |
6 070 Kč | |
| 11 | 77710011000 BEARING DISTANCE TUBE 121,5MM |
323 Kč | |
| 14 | 0625060058 GR.BALL BEAR.6005 DDU2CG23S6NM |
244 Kč | |
| 15 | 0472047175 CIRCLIP DIN0472-47X1,75 |
29 Kč | |
| 16 | 78010016000 BUSHING FOR HUB 08 |
490 Kč | |
| 18 | 0760324771 SHAFT SEAL RING 32X47X7 BSL |
61 Kč | |
| 49 | 58310051038 REAR SPROCKET 38-T |
1 051 Kč | |
| 49 | 58310051042 REAR SPROCKET 42-T |
1 051 Kč | |
| 49 | 58310151040 REAR SPROCKET 40-T |
1 051 Kč | |
| 49 | 7771015104501 SPROCKET 45-T |
1 051 Kč | |
| 50 | 58310151048 REAR SPROCKET 48-T |
1 051 Kč | |
| 50 | 7771015104901 SPROCKET 49-Z |
1 051 Kč | |
| 51 | 58310151050 REAR SPROCKET 50-T |
1 051 Kč | |
| 51 | 58310151052 REAR SPROCKET 52-T |
1 051 Kč | |
| 51 | 7771015105101 SPROCKET 51-Z NATURE |
1 051 Kč | |
| 52 | 0019080266S COUNTER-SUNK SCREW ISA45 M8X26 |
33 Kč | |
| 56 | 54310086200 SELF LOCKING NUT M8 10.9 |
21 Kč | |
| 60 | 58610060000 REAR BRAKE DISC 220MM 05 |
2 883 Kč | |
| 62 | 59009062013 SPECIAL SCREW M6X13 WS=8 10.9 |
20 Kč | |
| 65 | 78010167118 CHAIN DID 118 ROLLS |
2 577 Kč | |
| 66 | 78010166100 RIVETING LINK FOR 78010167118 |
199 Kč | |
| 70 | 80010070200 REAR RIM 5X17\'\' |
10 340 Kč | |
| 71 | 58309171100 SPOKE M5X177-13,5G 17\'\' |
61 Kč | |
| 72 | 60310072100 SPOKE NIPPLE QUADRAX M5 |
28 Kč | |
| 73 | 58309073000 RIM TAPE 17\" |
198 Kč | |
| 79 | 50310099000 HEXAGON NUT M20X1,5 \'98 |
138 Kč | |
| 80 | 58414030000 HH COLLAR NUT M10X1,25 WS=13 |
36 Kč | |
| 81 | 50304040100 SCREW M10X1.25X50 WS10 |
65 Kč | |
| 84 | 80010084000 CHAIN TENSIONER R/S 04 |
355 Kč | |
| 85 | 80010085044 WHEEL SPINDEL REAR CPL. 04 |
1 280 Kč | |
| 86 | 50210086000 COVERING CAP SFL16 |
33 Kč |
