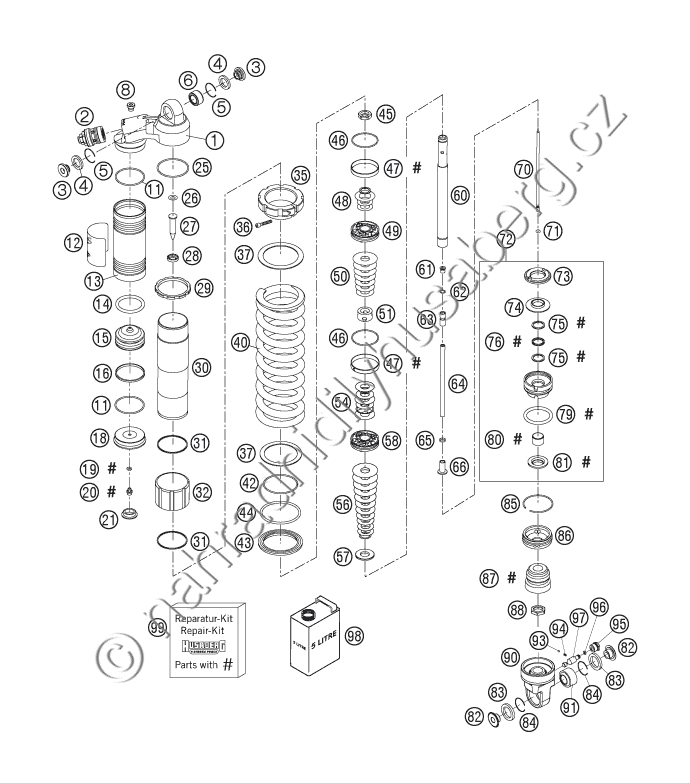

Díly pro SHOCK ABSORBER DISAS. FC, FE
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 50180357 SHOCK ABS.CASE 30,5 B21 82GR03 |
3 528 Kč | |
| 2 | 50180213S6 DCC-COMPR.DAMP.CONTROL CPL. 04 |
4 999 Kč | |
| 3 | 46180061 ADAPTOR-BUSH 12X26 |
198 Kč | |
| 4 | 46180003 OIL SEAL KGW D=25 |
55 Kč | |
| 5 | 50180168 Locking ring KGW Ă 25 |
44 Kč | |
| 6 | 50180005 BUSHING KGW 1525 HD |
885 Kč | |
| 8 | 50180095 BLEED PLUG R 1/8 |
95 Kč | |
| 11 | 46810340 O-RING NBR 45X2 |
41 Kč | |
| 12 | 52000085 WP CAUTION (PDS KTM) |
204 Kč | |
| 13 | 50180096S RESERVOIR SCREW L140 d46 |
3 383 Kč | |
| 14 | 46811043 O-RING VITON 35X5 |
122 Kč | |
| 15 | 50180108 SEPARATION PISTON D=46, H=29 |
586 Kč | |
| 16 | 46810324 PISTON RING 3,9X1,5X138 |
Na dotaz | 1 |
| 18 | 46811209 RESERVOIR CAP D=46 |
590 Kč | |
| 19 | 46810893 O-RING NBR 5,28X1,78 |
29 Kč | |
| 20 | 36120151S PLUG SCREW M5X6 CPL. |
161 Kč | |
| 21 | 46811208 RUBBER CAP \'\'DO NOT OPEN\'\' |
57 Kč | |
| 25 | 50180097 O-RING 52X2 |
31 Kč | |
| 26 | 50180177 WASHER 16X8,2X0,6 |
44 Kč | |
| 27 | 50180444 NEEDLE D=11,4 D=7,6 L=57 |
294 Kč | |
| 27 | 50180448 NEEDLE D=11,4 D=7,8 L=57 |
Na dotaz | 1 |
| 28 | 50180437 SCREW CAP M20X1 D=11,5 H=5 |
Na dotaz | 1 |
| 29 | 50180270 LOCK WASHER |
475 Kč | |
| 30 | 50180442 TUBE L=195 PDS |
2 617 Kč | |
| 31 | 50180133 CIRCLIP 50X1,5 |
89 Kč | |
| 32 | 50180081 SPRING GUIDANCE L=40 |
145 Kč | |
| 35 | 50180433 SPRING RETAINER M56X1 |
1 195 Kč | |
| 36 | 0912050303 AH SCREW DIN0912-M 5X30 |
36 Kč | |
| 37 | 50180114 SPACER RING FOR SPRING |
66 Kč | |
| 40 | 91210004 SPRING 250 80N/MM D=12,5 (62) |
3 382 Kč | |
| 40 | 91210015 SPRING PDS6-260 71,5-90,5N/MM |
Na dotaz | 0 |
| 40 | 91210016 SPRING PDS7-260 76-95N/MM |
3 382 Kč | |
| 40 | 91210017 SPRING PDS8-260 81-99,5N/MM |
4 640 Kč | |
| 42 | 50180273 CIRCLIP 58,2X2 |
47 Kč | |
| 43 | 50180463S SPRING RET. D=80 W. O-RING 05 |
1 120 Kč | |
| 44 | 50180352 O-RING VITON 66,27X3,53 |
183 Kč | |
| 45 | 50180141 PISTON ROD NUT M16X1 |
360 Kč | |
| 46 | 50180099 O-RING VITON 44,17X1,78 |
41 Kč | |
| 47 | 50180135 PISTON RING 50-8 |
284 Kč | |
| 48 | 50180072 SHIM 16X28X0,30 |
44 Kč | |
| 48 | 50180209 WASHER 21X36X0,25 |
140 Kč | |
| 48 | 50180210 WASHER 16X21X1 |
58 Kč | |
| 49 | 50180197 PISTON 6+6X7/4,5 |
2 160 Kč | |
| 50 | 50180073 SHIM 16X30X0,30 |
94 Kč | |
| 50 | 50180074 SHIM 16X32X0,30 |
58 Kč | |
| 50 | 50180075 SHIM 16X34X0,30 |
94 Kč | |
| 50 | 50180076 SHIM 16X36X0,30 |
58 Kč | |
| 50 | 50180077 SHIM 16X38X0,30 |
94 Kč | |
| 50 | 50180078 SHIM 16X40X0,30 |
94 Kč | |
| 51 | 50180436 SANDWICH BUSH D26XD16X14.5/11 |
433 Kč | |
| 54 | 50180034 BACKPLATE 16X20X0,30 |
113 Kč | |
| 54 | 50180045 SHIM 16X28X0,15 |
58 Kč | |
| 54 | 50180054 SHIM 16X28X0,20 |
58 Kč | |
| 54 | 50180056 SHIM 16X32X0,20 |
58 Kč | |
| 54 | 50180067 SHIM 16X36X0,25 |
94 Kč | |
| 56 | 50180035 BACKPLATE 16X21X0,30 |
39 Kč | |
| 56 | 50180036 BACKPLATE 16X22X0,30 |
39 Kč | |
| 56 | 50180037 SHIM 16X23X0,30 |
44 Kč | |
| 56 | 50180048 SHIM 16X34X0,15 |
94 Kč | |
| 56 | 50180049 SHIM 16X36X0,15 |
94 Kč | |
| 56 | 50180057 SHIM 16X34X0,20 |
44 Kč | |
| 56 | 50180058 SHIM 16X36X0,20 |
44 Kč | |
| 56 | 50180059 SHIM 16X38X0,20 |
44 Kč | |
| 56 | 50180060 SHIM 16X40X0,20 |
44 Kč | |
| 56 | 50180061 SHIM 16X42X0,20 |
44 Kč | |
| 56 | 50180063 SHIM 16X28X0,25 |
44 Kč | |
| 56 | 50180064 SHIM 16X30X0,25 |
58 Kč | |
| 56 | 50180065 SHIM 16X32X0,25 |
44 Kč | |
| 56 | 50180066 SHIM 16X34X0,25 |
94 Kč | |
| 56 | 50180071 SHIM 16X44X0,25 |
94 Kč | |
| 57 | 50180196 REBOUND DISC D=34, H=8 |
501 Kč | |
| 58 | 50180446 PISTON 6+6X3,5/4,5 |
2 199 Kč | |
| 60 | 50180431 PISTON ROD D=18 L=151 M16X1 |
3 106 Kč | |
| 61 | 50180200 BUSH M8X1 |
180 Kč | |
| 62 | 50180157 O-RING VITON 7X1,5 |
44 Kč | |
| 63 | 50180439 NEEDLE SEAT M8X1 D=5,5 05 |
350 Kč | |
| 64 | 50180264 TUBE M18X1 L=151,5 |
185 Kč | |
| 65 | 48600049 O-RING NBR 8X2 |
44 Kč | |
| 66 | 50180279 TUBE ADAPTOR M8X1 L=23 |
286 Kč | |
| 70 | 50180261 NEEDLE L=175 |
488 Kč | |
| 71 | 46811265 O-RING VITON 2,2X1,6 |
36 Kč | |
| 72 | 50180435S1 ADAPTOR D50 H29 CPL. |
2 684 Kč | |
| 73 | 50180107 REBOUND RUBBER |
308 Kč | |
| 74 | 50180113 STEEL DISC 18X,5X43,7X6 |
300 Kč | |
| 75 | 50180102 BACKUPRING 22,55X1,5 |
95 Kč | |
| 76 | 50180101 QUAD RING 18X2,62 |
219 Kč | |
| 79 | 50180103 O-RING 41X5 |
41 Kč | |
| 80 | 46180119 DU-BUSH 18X20X12 |
95 Kč | |
| 81 | 50180082 DUST SEAL 1835 |
384 Kč | |
| 82 | 50180153 ADAPTOR-BUSH KGW 32X10X26 |
312 Kč | |
| 83 | 50180159 SHAFT SEAL RING KGW D=32 |
126 Kč | |
| 84 | 50180175 CIRCLIP KGW D=32 |
102 Kč | |
| 85 | 50180126 CIRCLIP 53X1,75 |
31 Kč | |
| 86 | 50180165 COVER D=50 |
656 Kč | |
| 87 | 50180276 BUMP RUBBER WP60 D=18-26 |
392 Kč | |
| 88 | 50180283 CONTRA NUT M18X1 H=5 |
340 Kč | |
| 90 | 50180358 SHOCK ABS.BOTTOM 54X20X32 |
3 029 Kč | |
| 91 | 50180179 PIVOT BEARING KGW 1632 |
1 129 Kč | |
| 93 | 40540603 STEEL BALL D=3MM |
29 Kč | |
| 94 | 48600028 SPRING D=2,9 L=7,9 |
36 Kč | |
| 95 | 50180281 RESERVOIR CAP M14X1 |
318 Kč | |
| 96 | 50180222 O-RING NBR 4X1,5 |
29 Kč | |
| 97 | 50180434S ADJUSTING SCREW REBOUND TRAVEL |
607 Kč | |
| 98 | 50180751S1 SHOCK ABSORBER FLUID 5 LT |
2 803 Kč | |
| 99 | R12008 REPAIR-KIT GASKET 5018 PDS 03 |
2 335 Kč |
