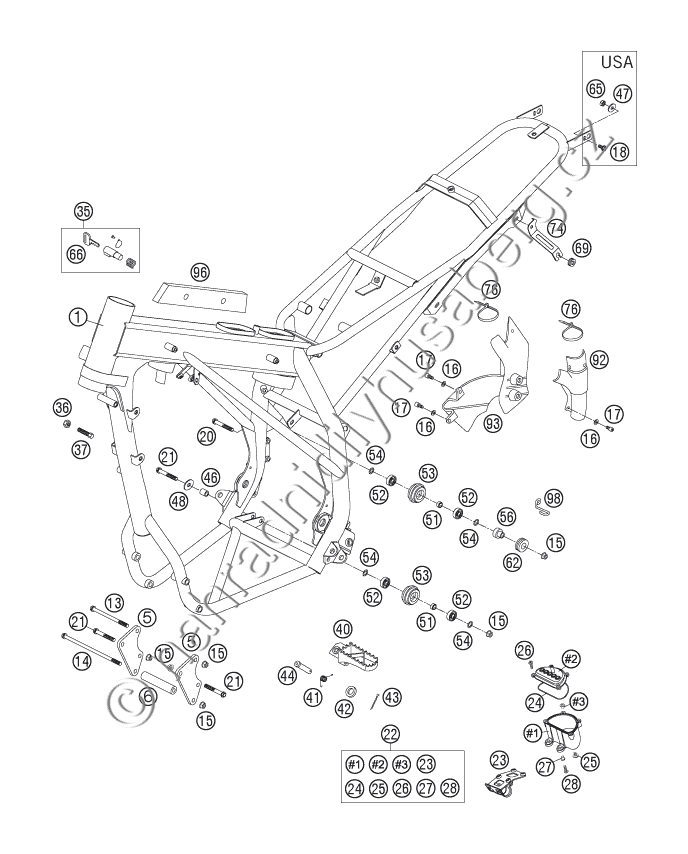

Díly pro FRAME
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 8000300110030 FRAME FE/FS-EU BLACK (HB04) |
46 235 Kč | |
| 5 | 80003005000 ENGINE MOUNTING 04 |
655 Kč | |
| 6 | 80003006000 SPACER ENGINE MOUNT. L=87MM 04 |
268 Kč | |
| 13 | 80003013000 ENGINE BRACKET SCREW M8X110 04 |
462 Kč | |
| 14 | 80003014000 ENGINE BRACKET SCREW M8X180 04 |
413 Kč | |
| 15 | 54310086200 SELF LOCKING NUT M8 10.9 |
21 Kč | |
| 16 | 0125050003 WASHER DIN0125-A 5,3 |
17 Kč | |
| 17 | 0912050103 AH SCREW DIN0912-M 5X10 |
20 Kč | |
| 18 | 0025050126 HH COLLAR SCREW M5X12 TX30 |
36 Kč | |
| 20 | 0015080353 HH COLLAR SCREW M 8X35 WS=10 |
31 Kč | |
| 21 | 0015080503 HH COLLAR SCREW M 8X50 WS=10 |
44 Kč | |
| 22 | 80031096044 INTERCEPTING TANK CPL. |
1 710 Kč | |
| 23 | 80031096050 BRACKET F.INTERCEPTING TANK 05 |
478 Kč | |
| 24 | 0770800021 O-RING 80,00X2,00 VITON |
106 Kč | |
| 25 | 0024060106 HH COLLAR SCREW M6X10 TX30 |
29 Kč | |
| 26 | 0017060205 SCREW FOR PLASTIC K60X20 SW6 |
29 Kč | |
| 27 | 45239060050 COLLAR BUSHING 6,3X8X13X9,5 |
77 Kč | |
| 28 | 0024060156 HH COLLAR SCREW M6X15 TX30 |
29 Kč | |
| 35 | 78003035000 STEERING HEAD LOCK 08 |
773 Kč | |
| 36 | 0934080003 HEXAGON NUT DIN0934-M 8 |
18 Kč | |
| 37 | 59001037000 SPECIAL SCREW M8X26 WS=10 |
53 Kč | |
| 40 | 47103040000 FOOTREST L/S |
666 Kč | |
| 40 | 47103041000 FOOTREST R/S |
666 Kč | |
| 40 | 78003040050 FOOTREST L/S 08 |
858 Kč | |
| 40 | 78003041050 FOOTREST R/S 08 |
858 Kč | |
| 41 | 54603041000 FOOTREST SPRING L/S & R/S |
71 Kč | |
| 42 | 0125100003 WASHER DIN 125 A 10.5 |
13 Kč | |
| 43 | 0094032250 PIN DIN 0094-3.2X25 NIRO |
5 Kč | |
| 44 | 54603044000 BOLT FOR FOOTREST 9,8 X 50 |
148 Kč | |
| 44 | 54803044000 BOLT FOR FOOT PED 03 |
203 Kč | |
| 46 | 80013046100 DISTANCE SPACER 22X8,2X16MM 05 |
98 Kč | |
| 47 | 0021050003 WASHER DIN 9021 A - 5.3 |
17 Kč | |
| 48 | 0021080003 WASHER DIN9021-A 8,4 |
17 Kč | |
| 51 | 74003021000 BUSHING 8.2 X 12 X 6 |
69 Kč | |
| 52 | 0625006087 GROOVED BALL BEAR. 608 2RS C3 |
244 Kč | |
| 53 | 52303053100 CHAIN ROLL D=35MM 125-380 \'99 |
61 Kč | |
| 54 | 36003014000 LOCK WASHER 8MM |
15 Kč | |
| 56 | 80011056100 DISTANCE SPACER 8MM 04 |
76 Kč | |
| 62 | 41001052000 RUBBER SLEEVE D=12MM |
57 Kč | |
| 65 | 0985050003 SELF LOCKING NUT DIN0985-M 5 |
21 Kč | |
| 66 | 40011166200 KEY BLANK BLACK \'\'T\'\' GRIP |
212 Kč | |
| 69 | 58214069051 RUBBER GROMMET 16X10.8X3 |
61 Kč | |
| 74 | 80008014100 BRACKET FOR REAR PART 2005 |
313 Kč | |
| 76 | 44011076200 CABLE TIE 200/3,6MM BLACK |
10 Kč | |
| 92 | 8000309200030 FRAME PROTECTION L/S BLACK 04 |
154 Kč | |
| 93 | 8000309300030 FRAME PROTECTION R/S BLACK 04 |
177 Kč | |
| 96 | 80006096000 TAB FOR FILTER PROTECTION 04 |
Na dotaz | 2 |
