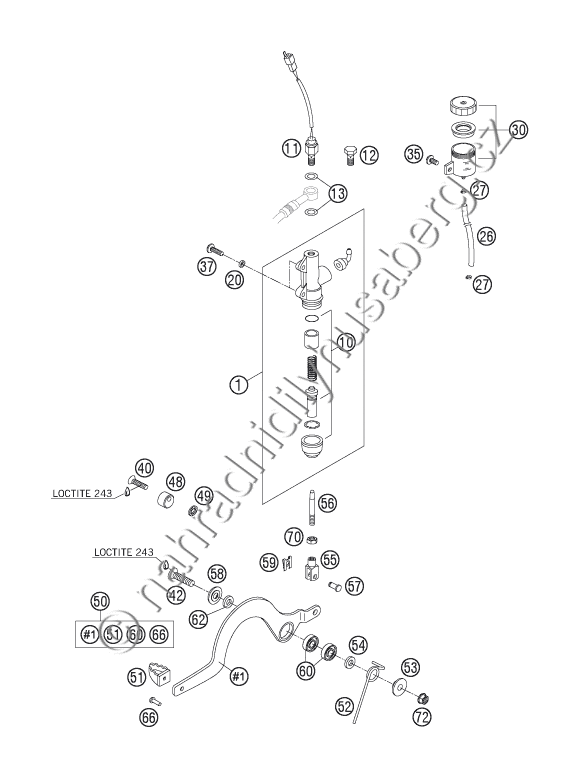

Díly pro REAR BRAKE CONTROL
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 50313060100 FOOTBRAKECYL. 13MM NATURE 2001 |
2 207 Kč | |
| 10 | 54513150000 REPAIR KIT PISTON 13MM |
703 Kč | |
| 11 | 50311051100 BRAKE LIGHT SWITCH REAR \'98 |
413 Kč | |
| 12 | 50213025000 HOLLOW SCREW M10X1X19 |
68 Kč | |
| 13 | 42013226000 CU-SEAL RING DIN7603-10X16X1 |
28 Kč | |
| 20 | 80004060050 BUSHING 6,2X10X2,5MM 04 |
50 Kč | |
| 26 | 58007016101 HOSE FOR RESERVOIR 6X1,5 |
270 Kč | |
| 27 | 58007017000 YDNAC CLAMP 10101 (10,4MM) |
21 Kč | |
| 30 | 54513030044 BRAKE FLUID RESERVOIR \'89 |
272 Kč | |
| 35 | 0024060106 HH COLLAR SCREW M6X10 TX30 |
29 Kč | |
| 37 | 0014060203 HH COLLAR SCREW M 6X20 WS=8 |
21 Kč | |
| 40 | 0991060253 FLAT HEAD SCREW DIN7991-M 6X25 |
28 Kč | |
| 42 | 0991080453 FLAT HEAD SCREW DIN7991-M 8X45 |
49 Kč | |
| 48 | 80013048000 ECCENTRIC BRAKE LEVER STOP 04 |
456 Kč | |
| 49 | 0797060003 TOOTH LOCK WASH. DIN6797-A 6,4 |
5 Kč | |
| 50 | 80013050044 REAR BRAKE LEVER CPL. 04 |
2 349 Kč | |
| 51 | 80013051000 BRAKE LEVER PEDAL 04 |
260 Kč | |
| 52 | 80013052000 RETAIN.SPRING REAR BR.LEVER 04 |
113 Kč | |
| 53 | 80013053100 COLLAR. BUSH.8,2X13X24X5,5 05 |
73 Kč | |
| 54 | 80013054100 DISTANCE SPACER 8,2X16X3 MM 05 |
63 Kč | |
| 55 | 80013055000 FORK PART REAR BRAKE CONTR. 04 |
118 Kč | |
| 56 | 80013056000 PRESSURE ROD REAR BRAKE CON.04 |
108 Kč | |
| 57 | 80013057000 MOUNTING BOLT 04 |
65 Kč | |
| 58 | 80013058000 SPECIAL WASHER 04 |
69 Kč | |
| 59 | 80013059000 SL-CIRCLIP 6 MBO 08 |
31 Kč | |
| 60 | 0625006087 GROOVED BALL BEAR. 608 2RS C3 |
244 Kč | |
| 62 | 0137080003 SPRING WASHER DIN137 B8 |
4 Kč | |
| 66 | 0660050167 RIVET DIN0660- 5,0X16 |
17 Kč | |
| 70 | 0934060003 HEX NUT DIN 934 M6 |
17 Kč | |
| 72 | 54310086200 SELF LOCKING NUT M8 10.9 |
21 Kč |
