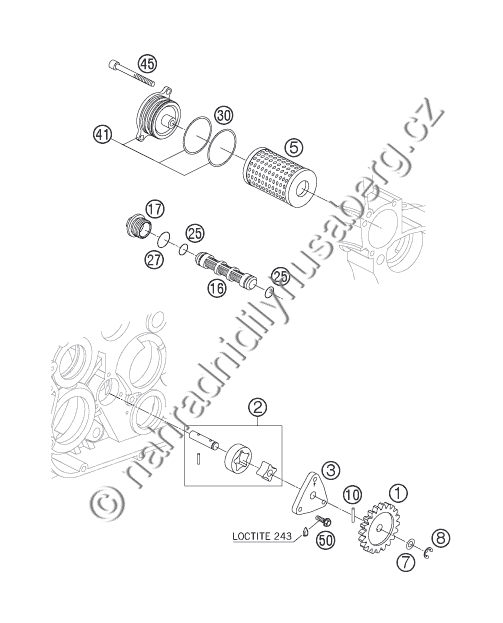

Díly pro LUBRICATING SYSTEM
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 80038001000 OIL PUMP GEAR 03 |
92 Kč | |
| 2 | 80038002044 OIL PUMP CPL. 03 |
1 277 Kč | |
| 3 | 80038003000 OIL PUMP COVER 03 |
Na dotaz | 1 |
| 5 | 58038005100 OIL FILTER LONG |
195 Kč | |
| 7 | 58038007755 STOP DISK 8,1 X 15 X 0,5 |
21 Kč | |
| 8 | 0799060000 TAB WASHER DIN6799-RS 6,0 |
17 Kč | |
| 10 | 0402251980 NEEDLEROL.DIN5402 NRA 2,5X19,8 |
20 Kč | |
| 16 | 59038016100 OIL SCREEN |
278 Kč | |
| 17 | 59038017100 PLUG M20X1,5 WS=13 |
252 Kč | |
| 25 | 0770125015 O-RING 12,5X1,5 NBR |
20 Kč | |
| 27 | 0770020170 O-RING 17,17X1,78 GLO |
18 Kč | |
| 30 | 0770380020 O-RING 38,00X2,00 NBR 70 SH |
21 Kč | |
| 41 | 80038041000 OIL FILTER COVER 03 |
1 030 Kč | |
| 45 | 0912050503 AH SCREW DIN912-M5X50 10.9 |
25 Kč | |
| 50 | 0016040133 HH COLLAR SCREW M 4X13 WS=6 |
18 Kč |
