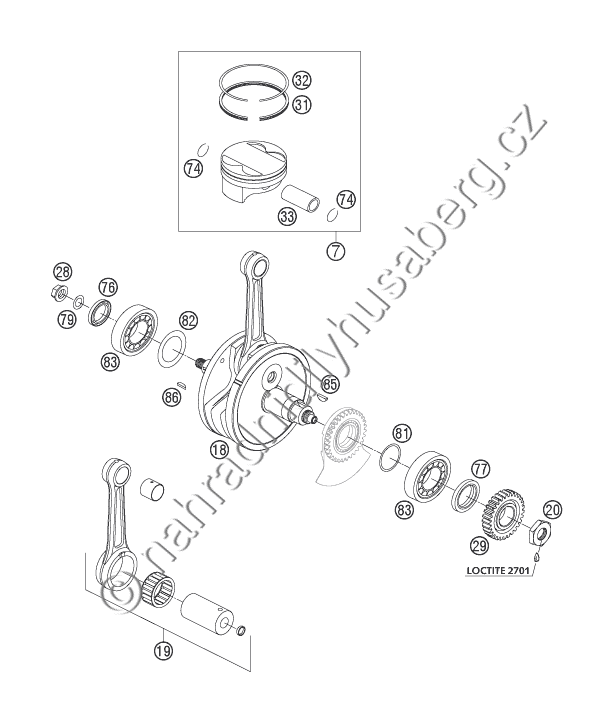

Díly pro CRANKSHAFT, PISTON
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 7 | 80030007000 I PISTON I CPL. 95 MM 501 03 |
Na dotaz | 1 |
| 7 | 80030007000 II PISTON II CPL. 95 MM 501 03 |
Na dotaz | 1 |
| 7 | 81030007000 I PISTON I CPL. 100 MM 450 03 |
9 516 Kč | |
| 7 | 81030007000 II PISTON II CPL. 100 MM 450 03 |
11 416 Kč | |
| 7 | 81530007000 I PISTON I CPL. 100 MM 550 03 |
7 717 Kč | |
| 7 | 81530007000 II PISTON II CPL. 100 MM 550 03 |
7 717 Kč | |
| 7 | 82030007100 I PISTON 650 06 |
7 717 Kč | |
| 7 | 82030007100 II PISTON 650 06 |
7 717 Kč | |
| 18 | 80030018000 CRANKSHAFT 501 FE CPL. 03 |
Na dotaz | 1 |
| 18 | 81030018000 CRANKSHAFT 450 FE, FS CPL. 03 |
Na dotaz | 1 |
| 18 | 81030118000 CRANKSHAFT 450 FC CPL. 04 |
Na dotaz | 1 |
| 18 | 81530018000 CRANKSHAFT 550 FE, FS CPL. 03 |
Na dotaz | 1 |
| 18 | 81530118000 CRANKSHAFT 550 FC CPL. 04 |
Na dotaz | 1 |
| 18 | 82030018000 CRANKSHAFT 650 FE, FS CPL. |
Na dotaz | 1 |
| 19 | 80030015000 CONROD REP.KIT 501/550 03 |
Na dotaz | 1 |
| 19 | 81030015000 CONROD REP.KIT 450 03 |
10 434 Kč | |
| 19 | 82030015000 CONROD REP.KIT 650 03 |
10 434 Kč | |
| 20 | 80030018020 NUT M16X1 WS=30 03 |
130 Kč | |
| 28 | 51030028100 COLLAR NUT M12X1 LEFT WS=17 |
138 Kč | |
| 29 | 80032000029 PRIMARY GEAR 29-T 03 |
Na dotaz | 1 |
| 31 | 58030631000 OIL SCRAPER RING 95MM |
389 Kč | |
| 31 | 60030032000 OIL SCRAPER RING D=100MM 03 |
397 Kč | |
| 32 | 59030032000 RECTANGULAR RING 95/87,2X1,25 |
696 Kč | |
| 32 | 80030032000 RECTANGULAR RING 100X1,25 |
730 Kč | |
| 33 | 59030033000 PISTON PIN BOLT 20X15,8/12X50 |
405 Kč | |
| 74 | 59030074000 CIRCLIP C20X1,5 |
52 Kč | |
| 76 | 0760254071 SHAF.SEAL RING 25X40X7 BAUM3SL |
377 Kč | |
| 77 | 0760305271 SHAFT SEAL RING 30X52X7 |
63 Kč | |
| 79 | 0137120000 SPRING WASHER DIN0137-B12 |
17 Kč | |
| 81 | 80030081010 THRUST WASHER 31X36X0,10 |
33 Kč | |
| 81 | 80030081020 THRUST WASHER 31X36X0,20 |
33 Kč | |
| 81 | 80030081030 THRUST WASHER 31X36X0,30 |
33 Kč | |
| 82 | 56030081000 THRUST WASHER 30,5X45X0,10 |
23 Kč | |
| 82 | 56030081100 THRUST WASHER 30,7X47X0,15 |
23 Kč | |
| 82 | 56030081200 THRUST WASHER 30,5X45X0,30 |
29 Kč | |
| 83 | 80030019000 CYL.ROLLBEAR.NJ206ECP/C3HVC058 |
1 770 Kč | |
| 85 | 6946005 WOODRUFF KEY 5X6,5 HARDED |
33 Kč | |
| 86 | 0888030050 WOODRUFF KEY DIN6888-3X5X13 |
20 Kč |
