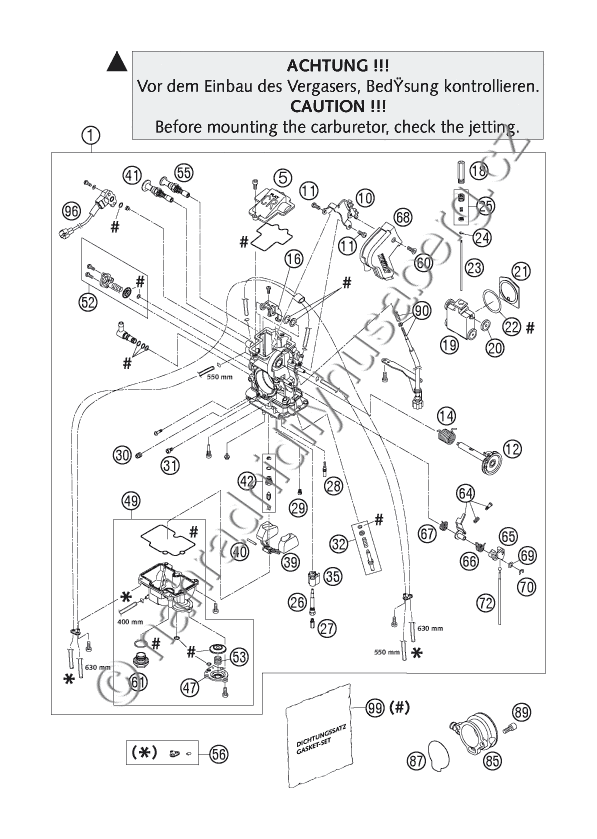

Díly pro CARBURETOR KEIHIN FCR-MX39/41
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 80031001000 CARBURETOR KEIHIN FCR-MX39 04 |
Na dotaz | 1 |
| 1 | 80031001100 CARBURETOR KEIHIN FCR-MX41 04 |
Na dotaz | 1 |
| 1 | 80031001200 CARBURETOR KEIHIN FCR-MX41 04 |
Na dotaz | 1 |
| 5 | 57331027044 CARBURETOR COVER WITH GASKET |
804 Kč | |
| 10 | 57331080000 BRACKET PLATE FOR THR. CABLE |
1 180 Kč | |
| 11 | 57331055000 SCREW M 5 X 8 |
47 Kč | |
| 12 | 57331046000 THROTTLE SHAFT CPL. |
2 928 Kč | |
| 14 | 57331046050 COIL SPRING THROTTLE SHAFT |
166 Kč | |
| 16 | 57331035051 LINK ARM THROTTLE VALVE CPL. |
1 851 Kč | |
| 18 | 59031029006 SLIDE STOP L=44MM 04 |
220 Kč | |
| 19 | 57331035000 THROTTLE VALVE CPL. |
9 649 Kč | |
| 20 | 59031035050 BUSHING THROTTLE VALVE |
212 Kč | |
| 21 | 57331035153 GASKET PLATE THROTTLE VALVE 04 |
3 818 Kč | |
| 22 | 59031035052 GASKET WASHER THROTTLE VALVE |
342 Kč | |
| 23 | 57331034300 JET NEEDLE KEIHIN OBEKR |
573 Kč | |
| 23 | 59031022000 JET NEEDLE KEIHIN OBDVR |
573 Kč | |
| 23 | 59031023200 JET NEEDLE KEIHIN OBDVT |
573 Kč | |
| 24 | 59031029000 BAR CLIP |
89 Kč | |
| 25 | 57331032000 NEEDLE SET SCREW CPL. |
897 Kč | |
| 26 | 59031121000 NEEDLE JET FCR-MX |
640 Kč | |
| 27 | 54531623160 MAIN JET 160 KEIHIN |
246 Kč | |
| 27 | 54531623162 MAIN JET 162 KEIHIN |
246 Kč | |
| 27 | 54531623165 MAIN JET 165 KEIHIN |
246 Kč | |
| 27 | 54531623168 MAIN JET 168 KEIHIN |
246 Kč | |
| 27 | 54531623170 MAIN JET 170 KEIHIN |
246 Kč | |
| 27 | 54531623172 MAIN JET 172 KEIHIN |
246 Kč | |
| 27 | 54531623175 MAIN JET 175 KEIHIN |
246 Kč | |
| 27 | 54531623178 MAIN JET 178 KEIHIN |
246 Kč | |
| 27 | 54531623180 MAIN JET 180 KEIHIN |
246 Kč | |
| 27 | 54531623182 MAIN JET 182 KEIHIN |
246 Kč | |
| 27 | 54531623185 MAIN JET 185 KEIHIN |
246 Kč | |
| 27 | 54531623188 MAIN JET 188 KEIHIN |
246 Kč | |
| 27 | 54531623190 MAIN JET 190 KEIHIN |
246 Kč | |
| 28 | 54531607038 IDLE JET 38 KEIHIN |
220 Kč | |
| 28 | 54531607040 IDLE JET 40 KEIHIN |
220 Kč | |
| 28 | 54531607042 IDLE JET 42 KEIHIN |
220 Kč | |
| 28 | 54531607045 IDLE JET 45 KEIHIN |
220 Kč | |
| 29 | 59031051085 STARTER JET 85 |
313 Kč | |
| 30 | 57331007100 IDLE AIR JET 100 KEIHIN |
323 Kč | |
| 31 | 57331037200 MAIN AIR JET 200 KEIHIN |
251 Kč | |
| 32 | 59031017100 ADJUST SCREW CPL. FCR-MX |
350 Kč | |
| 35 | 57331085000 BUFFER PLATE |
238 Kč | |
| 39 | 57331009000 FLOAT CPL. |
1 189 Kč | |
| 40 | 57331008000 ARM PIN FLOAT |
60 Kč | |
| 41 | 57331075100 HOT-STARTER VALVE CPL. 06 |
2 120 Kč | |
| 42 | 57331020000 NEEDLE VALVE CPL. |
1 365 Kč | |
| 47 | 57331060000 COVER ACCELERATOR PUMP |
520 Kč | |
| 49 | 78031011000 FLOAT CHAMBER CPL. 08 |
3 904 Kč | |
| 52 | 57331090000 AIR CUT VALVE 2002 |
1 245 Kč | |
| 53 | 59031059000 COIL SPRING |
122 Kč | |
| 55 | 57331048000 STARTER VALVE CPL. |
1 937 Kč | |
| 56 | 80031098000 BREATH.HOSE FCR-MX KEIHIN CPL. |
2 530 Kč | |
| 60 | 0965050103 FLAT HEAD SCREW DIN0965-M 5X10 |
17 Kč | |
| 61 | 57331014000 HOLDING BOLT |
347 Kč | |
| 64 | 57331062000 INTERMEDIATE LEVER CPL. |
576 Kč | |
| 65 | 57331056000 LINK LEVER |
148 Kč | |
| 66 | 57331059000 SPRING LINK LEVER |
193 Kč | |
| 67 | 57331159000 SPRING INTERMEDIATE LEVER |
166 Kč | |
| 68 | 57331038000 CARBURETOR COVER |
520 Kč | |
| 69 | 57331087000 WASHER LINK LEVER |
49 Kč | |
| 70 | 57331084000 E-CLIP |
69 Kč | |
| 72 | 57331061000 ROD ACCELERATOR PUMP |
520 Kč | |
| 85 | 59031040200 INTAKE FUNNEL FCR/FCR-MX 02 |
Na dotaz | 1 |
| 87 | 59031040010 O-RING FOR INTAKE FUNNEL |
61 Kč | |
| 89 | 0912050123 AH SCREW DIN0912-M 5X12 |
20 Kč | |
| 90 | 80031025000 STOP SCREW CPL. FCR-MX 04 |
1 229 Kč | |
| 96 | 57331077100 TPS-SENSOR FCRMX 320MM 03-04 |
6 013 Kč | |
| 99 | 57331099000 GASKET SET FCR-MX KEIHIN |
1 621 Kč |
