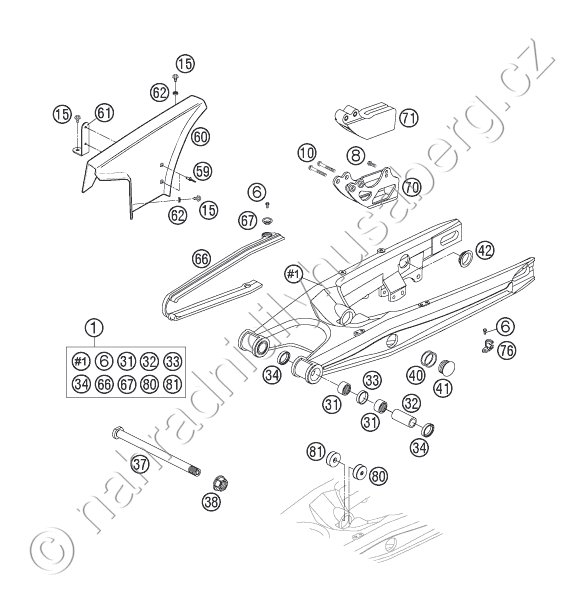

Díly pro SWING ARM
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 80004030044 SWINGARM CPL. HUSABERG 04 |
Na dotaz | 1 |
| 6 | 0025050126 HH COLLAR SCREW M5X12 TX30 |
36 Kč | |
| 8 | 0015060163 HH COLLAR SCREW M 6X16 WS=8 |
17 Kč | |
| 10 | 0025060456 HH COLLAR SCREW M6X45 TX30 |
29 Kč | |
| 15 | 0024060106 HH COLLAR SCREW M6X10 TX30 |
29 Kč | |
| 31 | 80004031000 NEEDLE BEARING HK2218 RS 04 |
446 Kč | |
| 32 | 80004032000 BUSH. SLEEVE SWINGARM BEAR. 04 |
313 Kč | |
| 33 | 80004031050 DISTA.SPACER SWINGARM BEAR. 04 |
94 Kč | |
| 34 | 0760222840 SHAFT SEAL RING 22X28X4 04 |
71 Kč | |
| 37 | 80004037100 SWINGARM BOLT L=237MM |
935 Kč | |
| 38 | 54804038000 SELF LOCK.NUT M16X1,5 WS=19 03 |
246 Kč | |
| 40 | 0770253240 O-RING 25,30X2,40 NBR70 |
18 Kč | |
| 41 | 80004041000 CLOSING COVER SWINGARM 04 |
220 Kč | |
| 42 | 58404041100 CLOSING COVER ROUND 03 |
25 Kč | |
| 59 | 0011400800 RIVET 4,0X 8 ALU |
18 Kč | |
| 60 | 80004060000 CHAIN GUARD 04 |
Na dotaz | 1 |
| 61 | 80004060001 BRACKET FOR CHAIN GUARD 04 |
Na dotaz | 1 |
| 62 | 80004060050 BUSHING 6,2X10X2,5MM 04 |
50 Kč | |
| 66 | 80004066000 CHAIN SLIDING GUARD 04 |
449 Kč | |
| 67 | 46104066050 BUSH FOR CHAINSLIDER GUARD 02 |
57 Kč | |
| 70 | 54607170044 RETAINING PLATE CPL. |
Na dotaz | 1 |
| 71 | 54607066100 CHAIN GUIDE REAR \'94 |
326 Kč | |
| 76 | 54611076100 RETAIN.CLAMP FOR BRAKE HOSE\'96 |
29 Kč | |
| 80 | 80004080000 BUSHING SUPPORT MONOSH. M10 04 |
Na dotaz | 1 |
| 81 | 80004081000 BUSHING SUPPORT MONOSH.10MM 04 |
Na dotaz | 1 |
