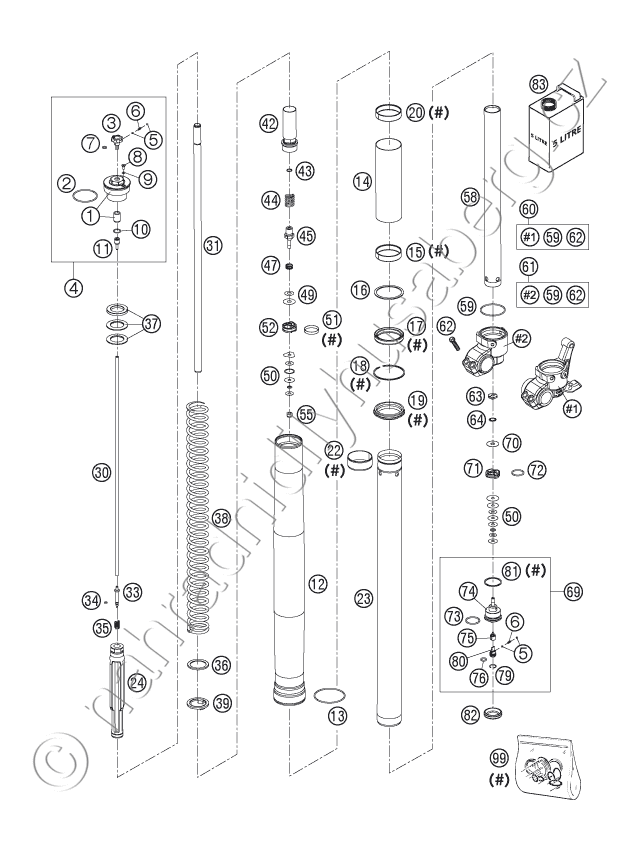

Díly pro FRONT FORK DISASSEMBLED
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 48600020S1 SCREW CAP M51X1,5 CPL. |
1 312 Kč | |
| 2 | 46810340 O-RING NBR 45X2 |
41 Kč | |
| 3 | 48600018 KNOB REBOUNG ADJUSTER |
63 Kč | |
| 4 | 48600020S1 SCREW CAP M51X1,5 CPL. |
1 312 Kč | |
| 5 | 40540603 STEEL BALL D=3MM |
29 Kč | |
| 6 | 48600028 SPRING D=2,9 L=7,9 |
36 Kč | |
| 7 | 48600044 O-RING NBR 6X1,5 |
29 Kč | |
| 8 | 48600058 VENT SCREW M4X6 |
29 Kč | |
| 9 | 48600009 O-RING NBR 3,7X1,6 |
29 Kč | |
| 10 | 48600043 O-RING NBR 12X1,5 |
44 Kč | |
| 11 | 48600019 HOLDER F.ADJUSTMENT TUBE D=4MM |
44 Kč | |
| 12 | 48600244 OUTER TUBE L=577MM D=54/60MM |
Na dotaz | 2 |
| 13 | 48600016 GUIDING RING D=58MM |
95 Kč | |
| 14 | 48600245 SPACER 50,95X0,85X161,5 |
366 Kč | |
| 15 | 48601009 GUIDING BUSH 48X52X12 R11 |
219 Kč | |
| 16 | 48600013 SUPPORT RING 50 X 57,6 X 1,5 |
118 Kč | |
| 17 | 48600399 OIL SEAL RING 48X57,8X9,5 |
283 Kč | |
| 18 | 48600070 LOCK WASHER SB58 |
44 Kč | |
| 19 | 48600816 DUST SEAL |
372 Kč | |
| 20 | 48600236 GUIDING RING 48X51X12 |
384 Kč | |
| 22 | 48601008 GUIDING BUSH 47X49X20 R11 |
219 Kč | |
| 23 | 48600240 INNER TUBE D=48 L=595 2003 |
5 966 Kč | |
| 24 | 48600380S1 HYDR.STOP L=200MM D=31,9 CPL. |
885 Kč | |
| 30 | 48600014 ADJUSTMENT TUBE L=512MM |
180 Kč | |
| 30 | 48600158 ADJUSTMENT TUBE L=477MM |
201 Kč | |
| 31 | 48600250 PISTON ROD D=14 L=546 M11X1 |
1 088 Kč | |
| 31 | 48600252 PISTON ROD 14X11X1 L=511 |
866 Kč | |
| 33 | 48600189 NEEDLE REBOUND 2003 |
349 Kč | |
| 34 | 48600046 O-RING NBR 3X1,5 |
44 Kč | |
| 35 | 48600033 SPRING REBOUND NEEDLE C=4N/MM |
161 Kč | |
| 36 | 48600113 WASHER 32X42X2,5 |
114 Kč | |
| 37 | 48600036 SPACER 42X26,5X2,5 |
95 Kč | |
| 37 | 48600037 SPACER 42X26,5X5 |
95 Kč | |
| 37 | 48600053 SPACER 42X26,5X1,5 |
95 Kč | |
| 38 | 91410006S SPRING 4,4N/MM SET D=5,1MM |
4 536 Kč | |
| 38 | 91410011S SPRING 3,6N/MM SET |
4 536 Kč | |
| 38 | 91410012S SPRING 3,8N/MM SET D=4,9MM |
3 382 Kč | |
| 38 | 91410013S SPRING 4,0N/MM SET D=5,0MM |
3 382 Kč | |
| 38 | 91410014S SPRING 4,2N/MM SET D=5,0MM |
3 382 Kč | |
| 38 | 91410015S SPRING 4,4N/MM SET D=5,1MM |
3 382 Kč | |
| 38 | 91410016S SPRING 4,6N/MM SET |
3 382 Kč | |
| 38 | 91410017S SPRING 4,8N/MM SET |
3 382 Kč | |
| 38 | 91410028S SPRING 4,6 N/MM SET D=5,1MM |
3 382 Kč | |
| 39 | 48600021 INTERM. RING 26,2 X 43 X 3 |
206 Kč | |
| 42 | 48600196S SCREW SLEEVE M29,3X1 L=90 CPL. |
1 322 Kč | |
| 42 | 48600200S1 SCREW SLEEVE M29,3X1 L=65 CPL. |
1 322 Kč | |
| 43 | 48600175 O-RING NBR 6,3X2,4 |
39 Kč | |
| 43 | 48600239 O-RING NBR 8X1,25 |
42 Kč | |
| 44 | 48600015 REBOUND SPRING D=14,6MM L=22MM |
355 Kč | |
| 44 | 48600192 REBOUND SPRING D=15MM L=34,5MM |
174 Kč | |
| 45 | 48600151 TAB REBOUND |
Na dotaz | 2 |
| 45 | 48600203 TAB REBOUND D=3 03 |
397 Kč | |
| 47 | 35480377 SPRING CHECK VALVE D=0,5 |
31 Kč | |
| 49 | 43570120 SHIM 8X18X0,10 |
41 Kč | |
| 49 | 48600062 CHECK VALVE 8X24X0,1 |
45 Kč | |
| 49 | 48600214 SHIM 8X16X0,1 |
44 Kč | |
| 49 | 48600215 CHECK VALVE 8X20X0,1 |
49 Kč | |
| 49 | 48600216 CHECK VALVE 8X22X0,1 |
49 Kč | |
| 49 | 48600346 SHIM 8X11X0,2 |
44 Kč | |
| 49 | 48600350 CHECK VALVE 8X16X0,15 |
45 Kč | |
| 49 | 48600351 CHECK VALVE 8X12X0,1 |
45 Kč | |
| 49 | 48600352 CHECK VALVE 8X11X0,4 |
45 Kč | |
| 50 | 40540400 SHIM 6X12X0,1 |
44 Kč | |
| 50 | 40540401 SHIM 6X14X0,1 |
44 Kč | |
| 50 | 40540402 SHIM 6X16X0,1 |
44 Kč | |
| 50 | 40540403 SHIM 6X18X0,1 |
44 Kč | |
| 50 | 40540405 SHIM 6X14X0,15 |
44 Kč | |
| 50 | 40540406 SHIM 6X16X0,15 |
44 Kč | |
| 50 | 40540414 SHIM 6X16X0,25 |
44 Kč | |
| 50 | 40540415 SHIM 6X18X0,25 |
44 Kč | |
| 50 | 40540447 SHIM 6X10X0,3 |
44 Kč | |
| 50 | 40540450 SHIM 6X9,5X0,3 |
44 Kč | |
| 50 | 40541383 SHIM 6X11X0,1 |
44 Kč | |
| 50 | 40541417 SHIM 6X11X0,25 |
44 Kč | |
| 50 | 48600063 SHIM 6X24X0,1 |
44 Kč | |
| 50 | 48600064 SHIM 6X22X0,1 |
44 Kč | |
| 50 | 48600065 SHIM 6X20X0,1 |
44 Kč | |
| 50 | 48600069 SHIM 6X20X0,15 |
44 Kč | |
| 50 | 48600116 SHIM 6X24X0,1 DELTA |
140 Kč | |
| 50 | 48600212 PRESSURE-RING 20X16,25X0,20 |
302 Kč | |
| 50 | 48600217 BACKPLATE 6X10X0,25 |
44 Kč | |
| 50 | 48600325 SHIM 6X13X0,1 |
58 Kč | |
| 50 | 48600327 SHIM 6X15X0,1 |
58 Kč | |
| 50 | 48600329 SHIM 6X17X0,1 |
58 Kč | |
| 50 | 48600331 SHIM 6X19X0,1 |
58 Kč | |
| 51 | 48600060 PISTON RING 5X1X84 |
65 Kč | |
| 52 | 48600042 PISTON REBOUND D=27,7 |
688 Kč | |
| 55 | 40540486 NUT M6X0,5 REBOUND |
57 Kč | |
| 58 | 48600081 TUBE 29,3X1X390 D=8,5MM |
1 605 Kč | |
| 58 | 48600140 TUBE 29,3X1X385 ALU |
1 338 Kč | |
| 59 | 48600048 O-RING NBR 46 X 2 |
44 Kč | |
| 60 | 48600860S AXLE CLAMP L/S CPL. |
8 361 Kč | |
| 61 | 48600238S AXLE CLAMP R/S CPL. USD48 04 |
4 122 Kč | |
| 62 | 0025080306 HH COLLAR SCREW M8X30 TX40 |
32 Kč | |
| 63 | 48600163 CHECK VALVE NUT M6X0,5 D=2 |
127 Kč | |
| 64 | 48600202 SPRING CHECK VALVE D=0,7 |
29 Kč | |
| 69 | 48600586E TAP COMPRESSION CPL. |
921 Kč | |
| 70 | 48600061 CHECK VALVE 8X24X0,4 |
45 Kč | |
| 71 | 48600047 PISTON COMPRESSION D=27,9 |
1 007 Kč | |
| 72 | 46811499 O-RING NBR 21X2 |
34 Kč | |
| 73 | 35480320 O-RING NBR 24X2 |
33 Kč | |
| 74 | 48600586E TAP COMPRESSION CPL. |
921 Kč | |
| 75 | 48600190 NEEDLE COMPRESSION 2003 |
113 Kč | |
| 76 | 48600049 O-RING NBR 8X2 |
44 Kč | |
| 79 | 48600051 LOCK WASHER RB12 |
31 Kč | |
| 80 | 48600034 COMPRESSION ADJ. SCREW |
110 Kč | |
| 81 | 48600004 COPPER WASHER 29,5X33,5X1 |
36 Kč | |
| 82 | 48600141 RUBBER CAP D=35MM |
42 Kč | |
| 83 | 48601166S1 FORK OIL SAE4 5L |
2 949 Kč | |
| 99 | R14007 REPAIR-KIT GASKET 4860 MXMA 03 |
2 337 Kč |
