SULKAR - Oficiální zastoupení Husaberg

Díly pro SHOCK ABSORBER DISASSEMBLED

Číslo dílu
na schématu		Kód dílu
Název dílu		Cena za kus
vč. DPH		Doporučený
počet
1 50180357
SHOCK ABS.CASE 30,5 B21 82GR03		 3 528 Kč
2 50180213S6
DCC-COMPR.DAMP.CONTROL CPL. 04		 4 999 Kč
2 50180213S7
DCC-COMPR.DAMP.CONTROL CPL. 04		 5 407 Kč
3 46180061
ADAPTOR-BUSH 12X26		 198 Kč
4 46180003
OIL SEAL KGW D=25		 55 Kč
5 50180168
Locking ring KGW Ă25		 44 Kč
6 50180005
BUSHING KGW 1525 HD		 885 Kč
8 50180095
BLEED PLUG R 1/8		 95 Kč
11 46810340
O-RING NBR 45X2		 41 Kč
12 52000085
WP CAUTION (PDS KTM)		 204 Kč
13 50180096S
RESERVOIR SCREW L140 d46		 3 383 Kč
14 46811043
O-RING VITON 35X5		 122 Kč
15 50180108
SEPARATION PISTON D=46, H=29		 586 Kč
16 46810324
PISTON RING 3,9X1,5X138		 Na dotaz
1
18 46811209
RESERVOIR CAP D=46		 590 Kč
19 46810893
O-RING NBR 5,28X1,78		 29 Kč
20 36120151S
PLUG SCREW M5X6 CPL.		 161 Kč
21 46811208
RUBBER CAP \'\'DO NOT OPEN\'\'		 57 Kč
25 50180097
O-RING 52X2		 31 Kč
26 50180177
WASHER 16X8,2X0,6		 44 Kč
27 50180359
NEEDLE D=10 L=33/47		 300 Kč
27 50180406
NEEDLE D=10 L=52		 358 Kč
28 50180271
SCREW CAP M20x1, D=11		 358 Kč
29 50180270
LOCK WASHER		 475 Kč
30 50180309
TUBE L=193 PDS		 2 312 Kč
31 50180133
CIRCLIP 50X1,5		 89 Kč
32 50180081
SPRING GUIDANCE L=40		 145 Kč
35 50180354S
SPRING RETAINER M5		 1 004 Kč
36 0912050303
AH SCREW DIN0912-M 5X30		 36 Kč
37 50180114
SPACER RING FOR SPRING		 66 Kč
40 91210004
SPRING 250 80N/MM D=12,5 (62)		 3 382 Kč
40 91210005
SPRING 250 84N/MM D=13,0 (62)		 3 382 Kč
40 91210006
SPRING 250 88N/MM D=13,0 (62)		 Na dotaz
0
40 91210014
SPRING PDS5-260 66-86N/MM		 4 640 Kč
40 91210015
SPRING PDS6-260 71,5-90,5N/MM		 Na dotaz
1
40 91210016
SPRING PDS7-260 76-95N/MM		 3 382 Kč
40 91210017
SPRING PDS8-260 81-99,5N/MM		 4 640 Kč
42 50180273
CIRCLIP 58,2X2		 47 Kč
43 50180463S
SPRING RET. D=80 W. O-RING 05		 1 120 Kč
44 50180352
O-RING VITON 66,27X3,53		 183 Kč
45 50180141
PISTON ROD NUT M16X1		 360 Kč
46 50180099
O-RING VITON 44,17X1,78		 41 Kč
47 50180135
PISTON RING 50-8		 284 Kč
48 50180072
SHIM 16X28X0,30		 44 Kč
48 50180209
WASHER 21X36X0,25		 140 Kč
48 50180210
WASHER 16X21X1		 58 Kč
49 50180197
PISTON 6+6X7/4,5		 2 160 Kč
49 50180311
PISTON 6+6X7/4,5 VB 1,0		 2 099 Kč
50 50180035
BACKPLATE 16X21X0,30		 39 Kč
50 50180048
SHIM 16X34X0,15		 94 Kč
50 50180058
SHIM 16X36X0,20		 44 Kč
50 50180059
SHIM 16X38X0,20		 44 Kč
50 50180060
SHIM 16X40X0,20		 44 Kč
50 50180061
SHIM 16X42X0,20		 44 Kč
50 50180062
SHIM 16X44X0,20		 94 Kč
50 50180063
SHIM 16X28X0,25		 44 Kč
50 50180064
SHIM 16X30X0,25		 58 Kč
50 50180065
SHIM 16X32X0,25		 44 Kč
50 50180066
SHIM 16X34X0,25		 94 Kč
50 50180071
SHIM 16X44X0,25		 94 Kč
50 50180074
SHIM 16X32X0,30		 58 Kč
50 50180075
SHIM 16X34X0,30		 94 Kč
50 50180076
SHIM 16X36X0,30		 58 Kč
50 50180077
SHIM 16X38X0,30		 94 Kč
50 50180078
SHIM 16X40X0,30		 94 Kč
50 50180079
SHIM 16X42X0,30		 94 Kč
51 50180269
SANDWICH BUSH D25XD16X14,5/D		 493 Kč
54 46811637
PRESSURE RING 36X32,25		 289 Kč
54 50180034
BACKPLATE 16X20X0,30		 113 Kč
54 50180045
SHIM 16X28X0,15		 58 Kč
54 50180054
SHIM 16X28X0,20		 58 Kč
54 50180056
SHIM 16X32X0,20		 58 Kč
54 50180057
SHIM 16X34X0,20		 44 Kč
54 50180067
SHIM 16X36X0,25		 94 Kč
56 50180036
BACKPLATE 16X22X0,30		 39 Kč
56 50180049
SHIM 16X36X0,15		 94 Kč
56 50180055
SHIM 16X30X0,20		 58 Kč
56 50180069
SHIM 16X40X0,25		 94 Kč
56 50180070
SHIM 16X42X0,25		 94 Kč
57 50180224
DISC REBOUND H13		 501 Kč
57 50180313
DISC REBOUND D=34, H=0		 326 Kč
60 50180291
PISTON ROD D=18 M16X1 \'02		 3 500 Kč
60 50180294
SPINDEL D=18, L=153, M16x1		 3 045 Kč
61 50180200
BUSH M8X1		 180 Kč
62 50180157
O-RING VITON 7X1,5		 44 Kč
63 50180201
NEEDLE SEAT M8X1		 342 Kč
64 50180264
TUBE M18X1 L=151,5		 185 Kč
64 50180284
TUBE M8X1 L=143,5		 185 Kč
65 48600049
O-RING NBR 8X2		 44 Kč
66 50180279
TUBE ADAPTOR M8X1 L=23		 286 Kč
70 50180261
NEEDLE L=175		 488 Kč
70 50180278
NEEDLE FOR REBOUND MODIFICAT.		 Na dotaz
1
71 46811265
O-RING VITON 2,2X1,6		 36 Kč
72 50180118S2
ADAPTOR CPL. D=50, H=28,5		 2 606 Kč
72 50180384S
ADAPTOR CPL. D=50 H=26,5		 4 511 Kč
73 50180107
REBOUND RUBBER		 308 Kč
73 50180314
DISC REBOUND SPRING		 Na dotaz
1
74 50180304
STEEL DISC 18,5X43,7X6		 347 Kč
74 50180385
REBOUND SPRING 2003		 1 073 Kč
75 50180102
BACKUPRING 22,55X1,5		 95 Kč
76 50180101
QUAD RING 18X2,62		 219 Kč
79 50180103
O-RING 41X5		 41 Kč
80 46180119
DU-BUSH 18X20X12		 95 Kč
80 50180104
DU-BUSH 18X20X15		 175 Kč
81 50180082
DUST SEAL 1835		 384 Kč
82 50180153
ADAPTOR-BUSH KGW 32X10X26		 312 Kč
83 50180159
SHAFT SEAL RING KGW D=32		 126 Kč
84 50180175
CIRCLIP KGW D=32		 102 Kč
85 50180126
CIRCLIP 53X1,75		 31 Kč
86 50180165
COVER D=50 		656 Kč
87 50180276
BUMP RUBBER WP60 D=18-26		 392 Kč
88 50180283
CONTRA NUT M18X1 H=5		 340 Kč
90 50180358
SHOCK ABS.BOTTOM 54X20X32 		3 029 Kč
91 50180179
PIVOT BEARING KGW 1632		 1 129 Kč
93 40540603
STEEL BALL D=3MM		 29 Kč
94 48600522
CATCH SPRING D=2,9 L=4,6		 60 Kč
95 50180281
RESERVOIR CAP M14X1		 318 Kč
96 50180222
O-RING NBR 4X1,5		 29 Kč
97 50180280
ADJUSTING SCREW 80 DEG., L=39		 300 Kč
98 50180751S1
SHOCK ABSORBER FLUID 5 LT		 2 803 Kč
99 R12005
REP.KIT GASKET SEAL PDS 2002		 2 335 Kč
99 R12008
REPAIR-KIT GASKET 5018 PDS 03		 2 335 Kč

Další schémata

ACCESSORIES ACCESSORIES AIR FILTER AIR FILTER DECAL DECAL EXHAUST SYSTEM EXHAUST SYSTEM FRAME FRAME FRONT BRAKE CALIPER FRONT BRAKE CALIPER FRONT BRAKE CONTROL FRONT BRAKE CONTROL FRONT FORK DISASSEMBLED FRONT FORK DISASSEMBLED FRONT FORK, TRIPLE CLAMP FRONT FORK, TRIPLE CLAMP FRONT WHEEL FRONT WHEEL HANDLEBAR, CONTROLS HANDLEBAR, CONTROLS INSTRUMENTS / LOCK SYSTEM INSTRUMENTS / LOCK SYSTEM LIGHTING SYSTEM LIGHTING SYSTEM MASK, FENDERS MASK, FENDERS NEW PARTS NEW PARTS REAR BRAKE CALIPER REAR BRAKE CALIPER REAR BRAKE CONTROL REAR BRAKE CONTROL REAR WHEEL REAR WHEEL SHOCK ABSORBER SHOCK ABSORBER SHOCK ABSORBER DISASSEMBLED SHOCK ABSORBER DISASSEMBLED SWING ARM SWING ARM TANK, SEAT, COVER TANK, SEAT, COVER WIRING HARNESS WIRING HARNESS

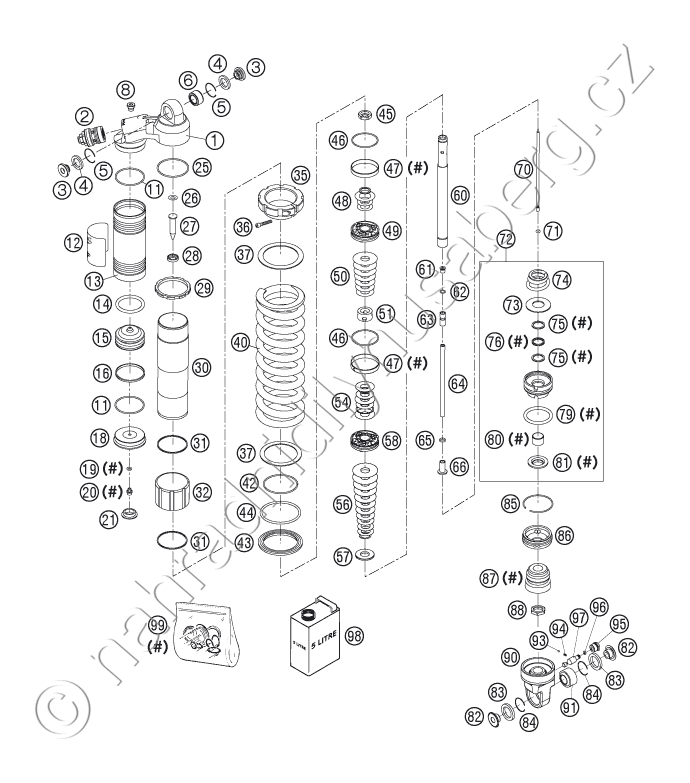

SHOCK ABSORBER DISASSEMBLED
