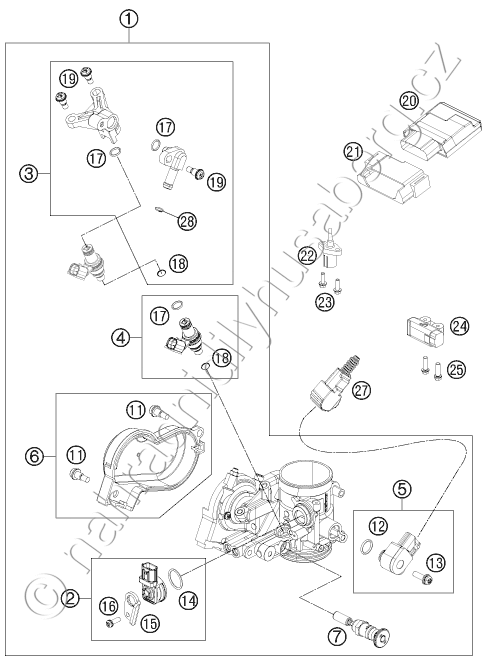

Díly pro THROTTLE BODY
Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
---|---|---|---|
1 | 77241001000 THROTTLE BODY |
7 888 Kč | |
2 | 81241085044 MAP SENSOR CPL. 09 |
3 459 Kč | |
3 | 81241013044 FUEL RAIL CPL. 09 |
1 968 Kč | |
4 | 75041023144 INJECTOR KIT CPL. |
3 504 Kč | |
5 | 81241077044 TPS KPL. 09 |
2 274 Kč | |
6 | 81241056044 THROTTLE COVER CPL. 09 |
977 Kč | |
7 | 81241060000 STARTER VALVE COMP. |
1 626 Kč | |
11 | 81241056020 SPECIAL SCREW AH |
129 Kč | |
12 | 61041077010 O-RING THROTTLE POS. SENSOR |
114 Kč | |
13 | 81241077030 SPECIAL SCREW |
63 Kč | |
14 | 75041085010 O-RING |
102 Kč | |
15 | 81241085020 PLATE 09 |
405 Kč | |
16 | 81241085030 SPECIAL SCREW |
55 Kč | |
17 | 75041023020 O-RING |
132 Kč | |
18 | 75041023010 SEAL RING |
193 Kč | |
19 | 75041013010 SCREW SHOULDER |
94 Kč | |
20 | 81241031100 ELECTRONIC CONTROL UNIT |
8 693 Kč | |
21 | 77241031050 RUBBER BRACKET ECU |
962 Kč | |
22 | 61041080000 AMBIENT-AIR TEMPERATURE SENSOR |
364 Kč | |
23 | 0025050166 HH COLLAR SCREW M5X16 TX30 |
20 Kč | |
24 | 61041088000 ROLLOVER SENSOR 05 |
1 035 Kč | |
25 | 0025060206 HH COLLAR SCREW M6X20 TX30 |
29 Kč | |
27 | 77111014050 PROTECTION CAP TPS |
135 Kč | |
28 | 77507017000 CLAMP ABA 14MM |
56 Kč |
