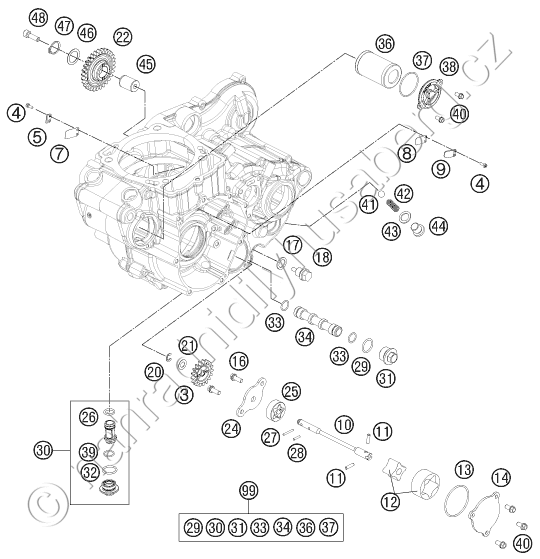

Díly pro LUBRICATING SYSTEM
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 3 | 78038001017 OIL PUMP GEAR 17 T |
68 Kč | |
| 4 | 0458030080 CYLIND.SCREW M3X8 ISO 14580 SS |
37 Kč | |
| 5 | 75030003050 STOP SHEET MEMBRANE 07 |
28 Kč | |
| 7 | 75030003051 MEMBRANE 07 |
21 Kč | |
| 8 | 81205027003 MEMBRAN CRANKCASE |
76 Kč | |
| 9 | 81205027004 TAB WASHER MEMBRAN CSC |
76 Kč | |
| 10 | 78138102000 OIL PUMP SHAFT SP-DP |
575 Kč | |
| 11 | 0402041580 NEEDLE ROLLER NRB 4X15.8 G2 |
36 Kč | |
| 12 | 61238111000 ROTOR-SET CPL. 22MM |
1 041 Kč | |
| 13 | 0770440020 O-RING 44,00X2,00 VITON |
50 Kč | |
| 14 | 78038004000 OIL PUMP COVER SUCTION PUMP |
456 Kč | |
| 16 | 0025060166S HH COLLAR SCREW M6X16 TX30 SL |
29 Kč | |
| 17 | 58038022000 CU-SEAL RING DIN7603-12X18X1,5 |
28 Kč | |
| 18 | 58030021100 OILDRAIN PLUG WITH MAGNET |
196 Kč | |
| 20 | 0799060000 TAB WASHER DIN6799-RS 6,0 |
17 Kč | |
| 21 | 58038007755 STOP DISK 8,1 X 15 X 0,5 |
21 Kč | |
| 22 | 78138001029 IDLER GEAR 1 29Z |
76 Kč | |
| 24 | 78138003000 OIL PUMP COVER |
400 Kč | |
| 25 | 59038011012 OILPUMP ROTOR 12MM G-95R/003 |
708 Kč | |
| 26 | 0770012021 O-RING 12X2 VITON GREEN |
25 Kč | |
| 27 | 0402251980 NEEDLEROL.DIN5402 NRA 2,5X19,8 |
20 Kč | |
| 28 | 0402251180 NEEDLE ROLLER DIN5402 2,5X11,8 |
19 Kč | |
| 29 | 0770020170 O-RING 17,17X1,78 GLO |
18 Kč | |
| 30 | 78138015001 OIL SCREEN CPL. |
483 Kč | |
| 31 | 59038017100 PLUG M20X1,5 WS=13 |
252 Kč | |
| 32 | 0770170200 O-RING 17,00X2,00 |
18 Kč | |
| 33 | 07701250151 O-RING 12,5X1,5 VITON V75 |
76 Kč | |
| 34 | 59038016100 OIL SCREEN |
278 Kč | |
| 36 | 77038005044 OIL FILTER WITH GASKET 06 |
217 Kč | |
| 37 | 07700390261 O-RING 39,34X2,62 |
18 Kč | |
| 38 | 75038041200 OIL FILTER COVER |
135 Kč | |
| 39 | 0770125015 O-RING 12,5X1,5 NBR |
20 Kč | |
| 40 | 0025050166 HH COLLAR SCREW M5X16 TX30 |
20 Kč | |
| 41 | 0401090003 BALL DIN5401-9 |
33 Kč | |
| 42 | 58038023300 PRESSURE SPRING L=25MM D=1MM |
66 Kč | |
| 44 | 0908120153 THREADED PLUG DIN 908 M12X1.5 |
87 Kč | |
| 45 | 78040028000 BUSHING PIN |
124 Kč | |
| 46 | 0988172405 SHIM WASHER DIN0988-17X24X0,5 |
15 Kč | |
| 47 | 0471170010 CIRCLIP DIN0471-17X1 |
17 Kč | |
| 48 | 0912060208 AH SCREW DIN0912-M 6X20 SS |
23 Kč | |
| 99 | 78938015010 OILFILTER SERVICEKIT SX-F 15 |
927 Kč |
