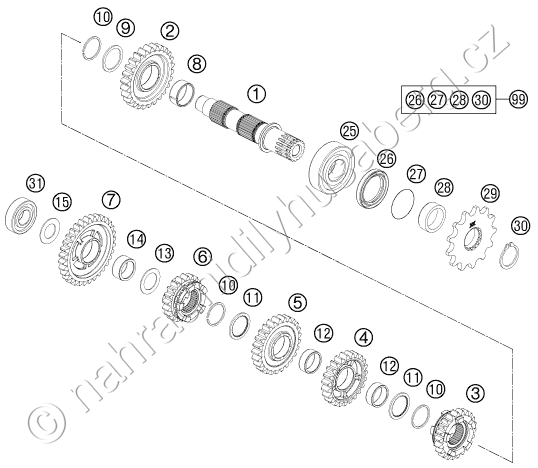

Díly pro TRANSMISSION II - COUNTERSHAFT
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 54833210100 COUNTER SHAFT CPL. |
2 588 Kč | |
| 2 | 54833212100 IDLER GEAR 2 ND. GEAR T=26 |
1 761 Kč | |
| 3 | 54833215000 SLIDING GEAR 5.G., Z=22 |
1 682 Kč | |
| 4 | 54833214100 IDLER GEAR 4.G, Z=23 |
1 487 Kč | |
| 5 | 54833213000 IDLER GEAR 3.G., Z= 25 |
1 487 Kč | |
| 6 | 54833216000 SLIDING GEAR 6.G., Z=20 |
1 682 Kč | |
| 7 | 54833211100 IDLER GEAR 1.G. Z=32 |
1 761 Kč | |
| 8 | 0405242812 NEDDLE BEAR. K24X28X11,9 DIV. |
103 Kč | |
| 9 | 54833044000 STOP DISC 25X31X1,5 |
73 Kč | |
| 10 | 0417025000 CIRCLIP SW25 |
86 Kč | |
| 11 | 54833043000 STOP DISC 25X0,8X30X30X7H |
73 Kč | |
| 12 | 0405222611 NEEDLE BEAR.K 22X26X10 DIVIDED |
175 Kč | |
| 13 | 54833080000 STOP DISC 20,2X30X1 |
73 Kč | |
| 14 | 0405202612 NEEDLE BEARING K 20X26X12 |
323 Kč | |
| 15 | 56033030000 STOP DISC 17,2X30X1 |
158 Kč | |
| 25 | 54833025000 BALL BEARING TM-SC05C20C4 NTN |
1 124 Kč | |
| 26 | 0760324571 SHAFT SEAL RING 32X45X7 BSLNBR |
65 Kč | |
| 27 | 0770250020 O-RING 25,00X2,00 NBR 70 |
18 Kč | |
| 28 | 54833032011 SPACER SLEEVE DRIVE END |
299 Kč | |
| 29 | 79233029013 SPROCKET 13T |
360 Kč | |
| 29 | 79233029014 SPROCKET 14T |
360 Kč | |
| 30 | 52033096000 LOCK RING DIN0471-25X1,64SD |
39 Kč | |
| 31 | 0625062035 BALL BEARING 6203 JR2 C3 |
215 Kč | |
| 99 | 00050000940 COUNTER SHAFT REP.KIT 2 STROKE |
403 Kč |
