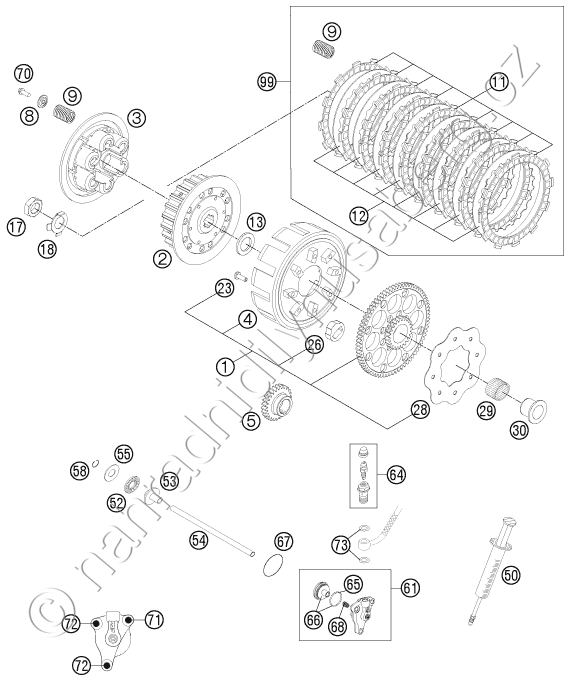

Díly pro CLUTCH
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 54832001072 OUTER CLUTCH HUB 72-T CPL. 03 |
14 079 Kč | |
| 2 | 54832002000 INNER CLUTCH HUB 546/548 2003 |
2 375 Kč | |
| 3 | 54632003100 PRESSURE CAP |
996 Kč | |
| 4 | 54832001000 OUTER CLUTCH HUB LOOSE 2003 |
6 545 Kč | |
| 5 | 54832000026 PRIMARY GEAR 26T 2003 |
1 452 Kč | |
| 8 | 58132081000 SPRING RETAINER 6,2 X 20 X 3,2 |
36 Kč | |
| 9 | 54832080000 CLUTCH SPRING 2,5X41,9 8,75W |
95 Kč | |
| 11 | 54832011000 LINING DISC FCC 04 |
441 Kč | |
| 12 | 54832012100 STEEL DISC |
207 Kč | |
| 13 | 57532013000 SUPPORTWASHER 22,2X35X3 HARDE. |
542 Kč | |
| 17 | 0936181505 HEXAGON NUT DIN0936-M18X1,5 R. |
102 Kč | |
| 18 | 78132018000 TAB WASHER |
45 Kč | |
| 23 | 0733060150 CLUTCH RIVET DIN7338- 6X15 |
119 Kč | |
| 26 | 58132026000 DAMPING ELEMENT |
95 Kč | |
| 28 | 58132028000 RETAINING PLATE |
86 Kč | |
| 29 | 56532095000 NEEDLE BEARING K26X30X22ZW.KSE |
321 Kč | |
| 30 | 50332070000 INNER RING WITH COLLAR |
658 Kč | |
| 50 | 50329050000 VENT INJEKTION HYDR. CLUTCH |
937 Kč | |
| 52 | 54637097200 AXIAL NEEDLE BEARING AXK 1226 |
150 Kč | |
| 53 | 50332054051 PRESSURE PIECE 125-380 \'98 |
Na dotaz | 1 |
| 54 | 54832054000 PUSH ROD 250 2003 |
191 Kč | |
| 55 | 54637098200 AXIAL WASHER AS1226 12X26X1 |
57 Kč | |
| 58 | 0993012000 CIRCLIP DIN7993-RW12 |
5 Kč | |
| 61 | 54832061044 OUTPUT CYLINDER CPL. 06 |
2 251 Kč | |
| 64 | 62513020000 BLEEDER SCREW CPL. 05 |
445 Kč | |
| 65 | 54832067000 O-RING |
28 Kč | |
| 66 | 54832066000 PISTON CPL. |
940 Kč | |
| 67 | 0770300015 O-RING 30,00X1,50 NBR 70 |
33 Kč | |
| 68 | 54832069000 PRESSURE SPRING |
257 Kč | |
| 70 | 0025060166 HH COLLAR SCREW M6X16 TX30 |
28 Kč | |
| 71 | 0025060356 HH COLLAR SCREW M6X35 TX30 |
29 Kč | |
| 72 | 0025060206 HH COLLAR SCREW M6X20 TX30 |
29 Kč | |
| 73 | 0603100141 SEALING RING DIN 7603 10X14X1 |
27 Kč | |
| 99 | 54832011010 CLUTCH KIT 250/300 \'04-\'12 |
5 527 Kč |
