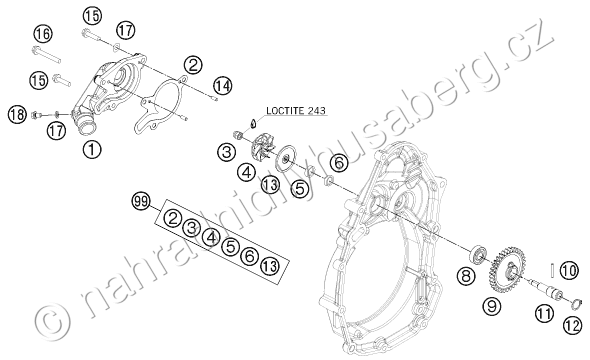

Díly pro WATER PUMP
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 81235052100 WATERPUMP COVER |
1 774 Kč | |
| 2 | 81235053200 WATER PUMP COVER GASKET |
102 Kč | |
| 3 | 61230045000 CAP NUT M6 STAINLESS STEEL |
20 Kč | |
| 4 | 81235055020 WATER PUMP ROTOR |
126 Kč | |
| 5 | 0760102455 SHAFT SEAL RING 10X24X5,5 |
159 Kč | |
| 6 | 0760102440 SHAFT SEAL RING 10X24X4 |
289 Kč | |
| 8 | 0625060001 BALL BEARING 6000/C3 |
203 Kč | |
| 9 | 78035054001 DRIVE WHEEL WAPU PLASTIC MAT. |
60 Kč | |
| 10 | 0402032180 NEEDLE ROLLER DIN5402 3X21,8 |
28 Kč | |
| 11 | 81235054100 WATER PUMP SHAFT |
1 091 Kč | |
| 12 | 0471140100 RETAINING RING DIN 471 14X1 |
5 Kč | |
| 13 | 81235055110 DISC WATER PUMP |
113 Kč | |
| 14 | 0402040980 NEEDLE ROL.DIN5402 NRB 4X9,8 |
23 Kč | |
| 15 | 0025060256 HH COLLAR SCREW M6X25 TX30 |
29 Kč | |
| 16 | 0025060556 HH COLLAR SCREW M6X55 TX30 |
29 Kč | |
| 17 | 0603061001 CU-SEAL RING DIN7603-6X10X1 |
20 Kč | |
| 18 | 0025060086 HH COLLAR SCREW M6X8 TX30 |
29 Kč | |
| 99 | 81235055115 WATER PUMP REP. KIT 09-12 |
703 Kč |
