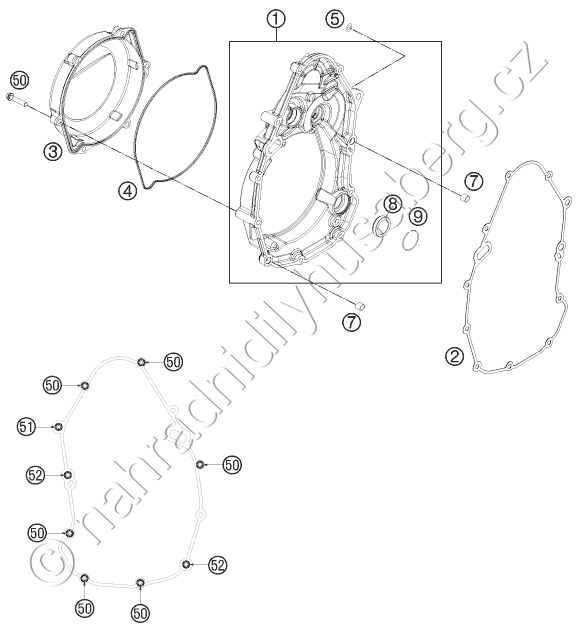

Díly pro CLUTCH COVER
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 81230001244 CLUTCH COVER CPL. |
4 724 Kč | |
| 2 | 81230025100 CLUTCH COVER GASKET |
554 Kč | |
| 3 | 81230026200 CLUTCH COVER OUTSIDE |
1 326 Kč | |
| 4 | 81230027100 MOLDED RING OUTER CLUTCH COVER |
134 Kč | |
| 5 | 58030081000 CU-SEAL RING 8 X 14 X 3 |
42 Kč | |
| 7 | 49030090100 DOWEL 9,8 X7X10 |
52 Kč | |
| 8 | 78030095100 OIL LEVEL GLASS VITON |
217 Kč | |
| 9 | 61030019050 CIRCLIP OIL LEVEL GLASS 03 |
29 Kč | |
| 50 | 0025060256 HH COLLAR SCREW M6X25 TX30 |
29 Kč | |
| 51 | 78030080000 LOCATING SCREW |
60 Kč | |
| 52 | 0025060306 HH COLLAR SCREW M6X30 TX30 |
29 Kč |
