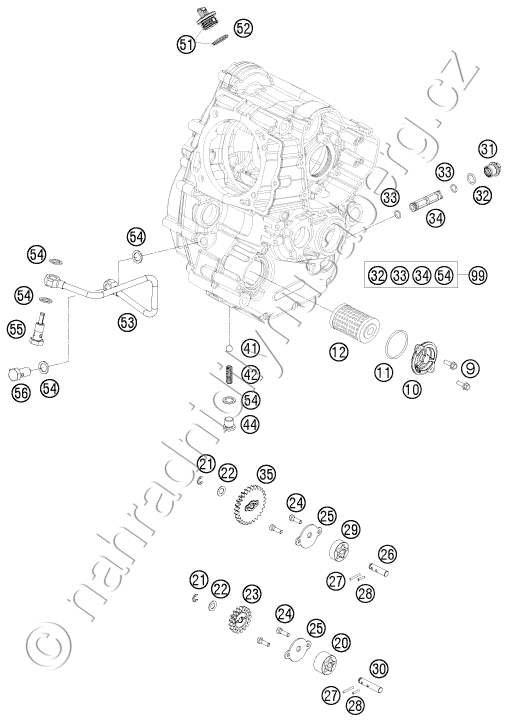

Díly pro LUBRICATING SYSTEM
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 9 | 0025050166 HH COLLAR SCREW M5X16 TX30 |
20 Kč | |
| 10 | 75038041200 OIL FILTER COVER |
135 Kč | |
| 11 | 07700390261 O-RING 39,34X2,62 |
18 Kč | |
| 12 | 77038005044 OIL FILTER WITH GASKET 06 |
217 Kč | |
| 20 | 59038011012 OILPUMP ROTOR 12MM G-95R/003 |
708 Kč | |
| 21 | 0799060000 TAB WASHER DIN6799-RS 6,0 |
17 Kč | |
| 22 | 58038007755 STOP DISK 8,1 X 15 X 0,5 |
21 Kč | |
| 23 | 78038001017 OIL PUMP GEAR 17 T |
68 Kč | |
| 24 | 0984050123S CYLIND. SCR. DIN6912 M5X12 8.8 |
17 Kč | |
| 25 | 81238003000 OIL PUMP COVER |
167 Kč | |
| 26 | 78038002000 OIL PUMP SHAFT TRANSM. PUMP |
211 Kč | |
| 27 | 0402251980 NEEDLEROL.DIN5402 NRA 2,5X19,8 |
20 Kč | |
| 28 | 0402251180 NEEDLE ROLLER DIN5402 2,5X11,8 |
19 Kč | |
| 29 | 59038011010 OILPUMP ROTOR CPL. 10MM G-73R |
590 Kč | |
| 30 | 81238102000 OIL PUMP SHAFT DP |
2 383 Kč | |
| 31 | 78038018000 SCREW PLUG M17 |
132 Kč | |
| 32 | 0770125020 O-RING 12,50X2,00 NBR 70 |
18 Kč | |
| 33 | 07700900151 O-RING 9X1,5 V80 SH |
21 Kč | |
| 34 | 78038015000 OIL SCREEN 12,5X56,5MM |
191 Kč | |
| 35 | 78038001027 OIL PUMP GEAR 27T |
55 Kč | |
| 41 | 0401090003 BALL DIN5401-9 |
33 Kč | |
| 42 | 58038023300 PRESSURE SPRING L=25MM D=1MM |
66 Kč | |
| 44 | 0908120153 THREADED PLUG DIN 908 M12X1.5 |
87 Kč | |
| 51 | 58030020100 OIL PLUG CPL. M24X3 |
63 Kč | |
| 52 | 0770191015 O-RING 19,00X3,00 NBR |
15 Kč | |
| 53 | 81738035000 OIL PIPE |
1 330 Kč | |
| 54 | 58038022000 CU-SEAL RING DIN7603-12X18X1,5 |
28 Kč | |
| 55 | 81238016000 HOLLOW SCREW M12 W. STRAINER |
472 Kč | |
| 56 | 0643120243 HOLLOW SCREW DIN7643-8 M12X1,5 |
76 Kč | |
| 99 | 00060000061 OILFILTER SERVICE KIT 09-12 |
445 Kč |
