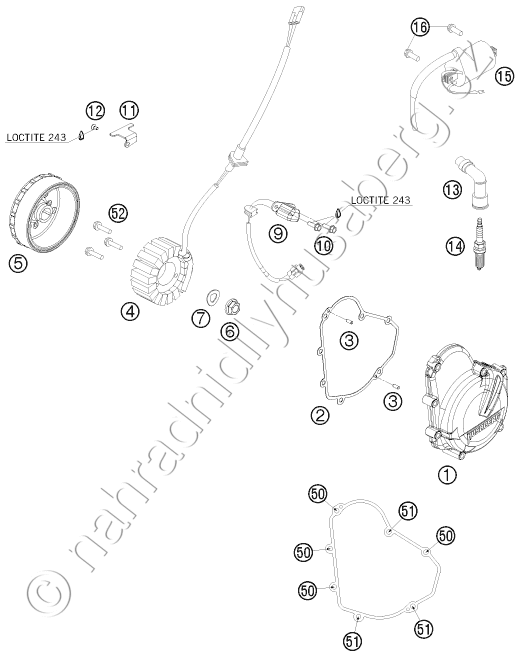

Díly pro IGNITION SYSTEM
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 81230002100 IGNITION COVER |
2 014 Kč | |
| 2 | 81230040000 IGNITION COVER GASKET |
247 Kč | |
| 3 | 0402040980 NEEDLE ROL.DIN5402 NRB 4X9,8 |
23 Kč | |
| 4 | 83039004000 STATOR |
3 128 Kč | |
| 5 | 78039205000 ROTOR EXC 08 |
6 543 Kč | |
| 6 | 49030021000 COLLAR NUT M12X1 R/S |
100 Kč | |
| 7 | 0137120000 SPRING WASHER DIN0137-B12 |
17 Kč | |
| 9 | 59039034000 PULSE GENERATOR KOKUSAN 4K3-A/B |
1 763 Kč | |
| 10 | 0025050166 HH COLLAR SCREW M5X16 TX30 |
20 Kč | |
| 11 | 81230002010 RETAINING PLATE |
114 Kč | |
| 12 | 0991040083S FLAT HEAD SCREW DIN 7991 M4X8 - 8.8 |
23 Kč | |
| 13 | 78039090000 SPARK PLUG CONNECT. AP-TRS1908 |
249 Kč | |
| 14 | 75039093000 SPARK PLUG M12X1,25 LKAR8AI-9 |
610 Kč | |
| 15 | 58439006000 IGNITIONCOIL IG3826 KOKUSAN\'96 |
1 278 Kč | |
| 16 | 0025060166 HH COLLAR SCREW M6X16 TX30 |
28 Kč | |
| 50 | 0025060306 HH COLLAR SCREW M6X30 TX30 |
29 Kč | |
| 51 | 0025060506 HH COLLAR SCREW M6X50 TX30 |
29 Kč | |
| 52 | 0025050306 HH COLLAR SCREW M5X30 TX30 |
20 Kč |
