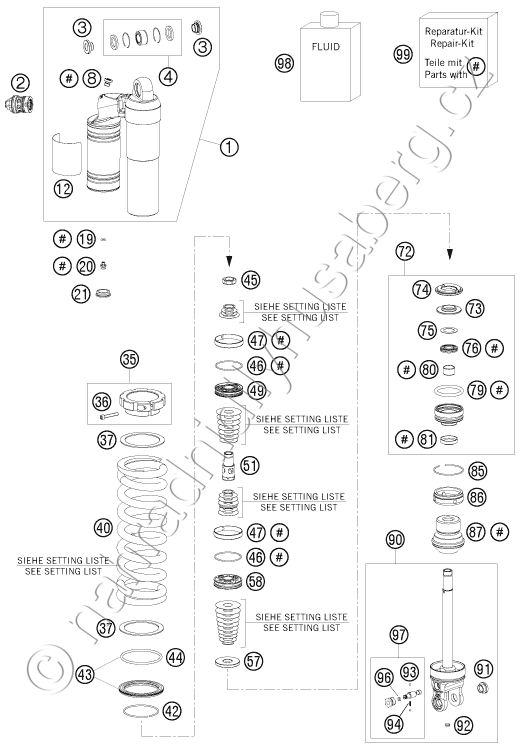

Díly pro SHOCK ABSORBER DISASSEMBLED
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 50180753S4 TOP PART CPL. M57,5X1 H30,5 09 |
10 689 Kč | |
| 2 | 50180213S10 DCC-COMPR.DAMP.CONTROL CPL. 07 |
3 730 Kč | |
| 3 | 46180007 ADAPTOR BUSH KGW 12X24 |
191 Kč | |
| 4 | R12012 REP. KIT BEAR./SEAL UP. 07 |
1 352 Kč | |
| 8 | 50180095 BLEED PLUG R 1/8 |
95 Kč | |
| 12 | 52000085 WP CAUTION (PDS KTM) |
204 Kč | |
| 19 | 46810893 O-RING NBR 5,28X1,78 |
29 Kč | |
| 20 | 36120151S PLUG SCREW M5X6 CPL. |
161 Kč | |
| 21 | 46811208 RUBBER CAP \'\'DO NOT OPEN\'\' |
57 Kč | |
| 35 | 50180582S SPRING RET. (SCREW) M56X1 ANO. |
1 305 Kč | |
| 36 | 50180327 AH SCREW M5X30 DIN912 |
33 Kč | |
| 37 | 50180114 SPACER RING FOR SPRING |
66 Kč | |
| 40 | 91210078S SPRING 250 69 N/MM YELLOW |
3 382 Kč | |
| 40 | 91210079S SPRING 250 72N/MM(64/62)YELLOW |
3 382 Kč | |
| 40 | 91210080S SPRING 250 76 N/MM YELLOW |
3 382 Kč | |
| 42 | 50180273 CIRCLIP 58,2X2 |
47 Kč | |
| 43 | 50180463S SPRING RET. D=80 W. O-RING 05 |
1 120 Kč | |
| 44 | 50180352 O-RING VITON 66,27X3,53 |
183 Kč | |
| 45 | 50180627 PISTON ROD NUT M20X1 |
1 148 Kč | |
| 46 | 50180099 O-RING VITON 44,17X1,78 |
41 Kč | |
| 47 | 50180135 PISTON RING 50-8 |
284 Kč | |
| 49 | 50180675 PISTON D=20 |
922 Kč | |
| 51 | 50180764 TAP D20 M20X1 L45,3 09 |
659 Kč | |
| 57 | 50180970 REBOUND DISC D43 |
140 Kč | |
| 58 | 50180197 PISTON 6+6X7/4,5 |
2 160 Kč | |
| 72 | 50180603S ADAPTOR CPL. D=50 H=28 08 |
2 069 Kč | |
| 73 | 50180113 STEEL DISC 18X,5X43,7X6 |
300 Kč | |
| 74 | 50180107 REBOUND RUBBER |
308 Kč | |
| 75 | 50180604 SHIM D29,75 X D19 X T0,4 08 |
44 Kč | |
| 76 | 50180605S SEAL D18X30X5 08 |
786 Kč | |
| 79 | 50180103 O-RING 41X5 |
41 Kč | |
| 80 | 46180119 DU-BUSH 18X20X12 |
95 Kč | |
| 81 | 50180606 DUST SEAL 1828 08 |
219 Kč | |
| 85 | 50180126 CIRCLIP 53X1,75 |
31 Kč | |
| 86 | 50180626 RESERVOIR CAP D=50 H=10 09 |
892 Kč | |
| 87 | 50180600 BUMP RUBBER D58 D17 H59 2008 |
567 Kč | |
| 90 | 50180512SA2 SHOCK ABS. LOWER PART CPL. 10 |
6 327 Kč | |
| 91 | 50180105 THREADED BUSH M12 PDS |
169 Kč | |
| 92 | 50180297 RUBBER PLUG D=8 |
47 Kč | |
| 93 | 40540603 STEEL BALL D=3MM |
29 Kč | |
| 94 | 48600028 SPRING D=2,9 L=7,9 |
36 Kč | |
| 96 | 50180222 O-RING NBR 4X1,5 |
29 Kč | |
| 97 | 50180434S ADJUSTING SCREW REBOUND TRAVEL |
607 Kč | |
| 98 | 50180751S1 SHOCK ABSORBER FLUID 5 LT |
2 803 Kč | |
| 99 | R12015 REPAIR KIT 5018 PDS 08 |
2 523 Kč |
