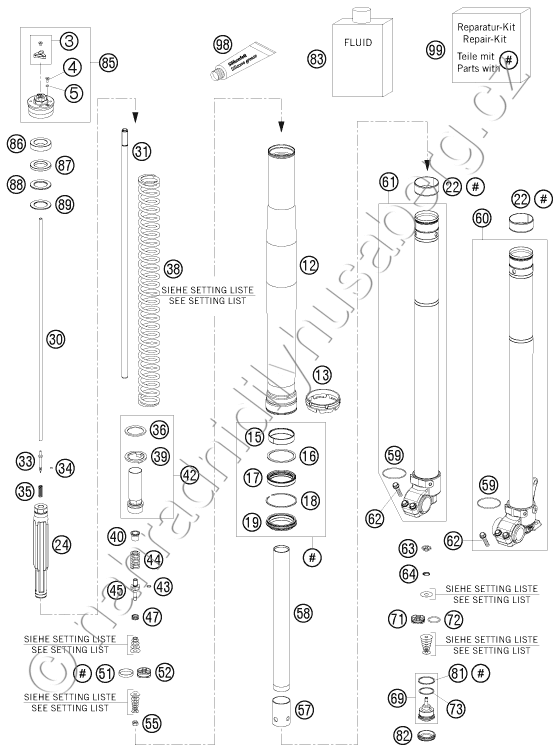

Díly pro FRONT FORK DISASSEMBLED
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 3 | 48600812S ADJUSTING KNOB + SCREW |
65 Kč | |
| 4 | 48600481 VENT SCREW M4X8 |
26 Kč | |
| 5 | 48600009 O-RING NBR 3,7X1,6 |
29 Kč | |
| 12 | 48600736 OUTER TUBE L577 D54/60MM 2L |
8 770 Kč | |
| 13 | 48600698 FORK PROTECTION RING 08 |
73 Kč | |
| 15 | 48601009 GUIDING BUSH 48X52X12 R11 |
219 Kč | |
| 16 | 48600013 SUPPORT RING 50 X 57,6 X 1,5 |
118 Kč | |
| 17 | 48600399 OIL SEAL RING 48X57,8X9,5 |
283 Kč | |
| 18 | 48600070 LOCK WASHER SB58 |
44 Kč | |
| 19 | 48600816 DUST SEAL |
372 Kč | |
| 22 | 48601008 GUIDING BUSH 47X49X20 R11 |
219 Kč | |
| 24 | 48600557S HYDR.STOP L=200 D=31,9 CPL. 07 |
613 Kč | |
| 30 | 48600559 ADJUSTING TUBE L=520 07 |
158 Kč | |
| 31 | 48600568 PISTON ROD D=12 L=554 ALU |
1 966 Kč | |
| 33 | 48600277 ADJUSTER NEEDLE 07 |
124 Kč | |
| 34 | 48600298 O-RING 2X1,5 NBR |
60 Kč | |
| 35 | 48600444 REBOUND SPRING C=4N/MM |
68 Kč | |
| 36 | 48600113 WASHER 32X42X2,5 |
114 Kč | |
| 38 | 91410012S SPRING 3,8N/MM SET D=4,9MM |
3 382 Kč | |
| 38 | 91410013S SPRING 4,0N/MM SET D=5,0MM |
3 382 Kč | |
| 38 | 91410014S SPRING 4,2N/MM SET D=5,0MM |
3 382 Kč | |
| 38 | 91410015S SPRING 4,4N/MM SET D=5,1MM |
3 382 Kč | |
| 38 | 91410016S SPRING 4,6N/MM SET |
3 382 Kč | |
| 38 | 91410017S SPRING 4,8N/MM SET |
3 382 Kč | |
| 39 | 48600021 INTERM. RING 26,2 X 43 X 3 |
206 Kč | |
| 40 | 48600525 GUIDING BUSH REBOUND SPRING |
95 Kč | |
| 42 | 48600762S SCREW SLEEVE M27X,08 L=100 KPL |
390 Kč | |
| 43 | 48600299 O-RING 6X1,2 NBR |
60 Kč | |
| 44 | 48600511S REBOUND SPRING L32 C17 CPL. |
114 Kč | |
| 45 | 48600576 PISTON ROD REBOUND |
243 Kč | |
| 47 | 48600382 SHUTTLE VALVE SPRING C=0,4 |
52 Kč | |
| 51 | 48600455 PISTON RING 5X1X68 |
340 Kč | |
| 52 | 48600575 PISTON REBOUND SX 2007 |
453 Kč | |
| 55 | 40540486 NUT M6X0,5 REBOUND |
57 Kč | |
| 57 | 48600764 ADAPTER SLEEVE D23/D28 |
263 Kč | |
| 58 | 48600763 PIPE D23/L350 09 |
847 Kč | |
| 59 | 48600048 O-RING NBR 46 X 2 |
44 Kč | |
| 60 | 48600860SA2 AXLE CLAMP L/S + TUBE CPL. |
5 033 Kč | |
| 61 | 48600861S1 AXLE CLAMP R/S + TUBE CPL. 09 |
5 033 Kč | |
| 62 | 0025080256 HH COLLAR SCREW M8X25 TX40 |
33 Kč | |
| 63 | 48600163 CHECK VALVE NUT M6X0,5 D=2 |
127 Kč | |
| 64 | 48600202 SPRING CHECK VALVE D=0,7 |
29 Kč | |
| 69 | 48600586E TAP COMPRESSION CPL. |
921 Kč | |
| 71 | 48600047 PISTON COMPRESSION D=27,9 |
1 007 Kč | |
| 72 | 46811499 O-RING NBR 21X2 |
34 Kč | |
| 73 | 35480320 O-RING NBR 24X2 |
33 Kč | |
| 81 | 48600004 COPPER WASHER 29,5X33,5X1 |
36 Kč | |
| 82 | 48600141 RUBBER CAP D=35MM |
42 Kč | |
| 83 | 48601166S1 FORK OIL SAE4 5L |
2 949 Kč | |
| 85 | 48600431E2 PRE-LOAD ADJ. CPL. |
1 073 Kč | |
| 86 | 48600038 SPACER 42X26,5X10 |
95 Kč | |
| 87 | 48600037 SPACER 42X26,5X5 |
95 Kč | |
| 88 | 48600036 SPACER 42X26,5X2,5 |
95 Kč | |
| 89 | 48600053 SPACER 42X26,5X1,5 |
95 Kč | |
| 98 | T14034 FUCHS GREASE IPR (250G) |
1 280 Kč | |
| 99 | R14016 REPAIR-KIT EXC FRONT FORK 2009 |
1 812 Kč |
