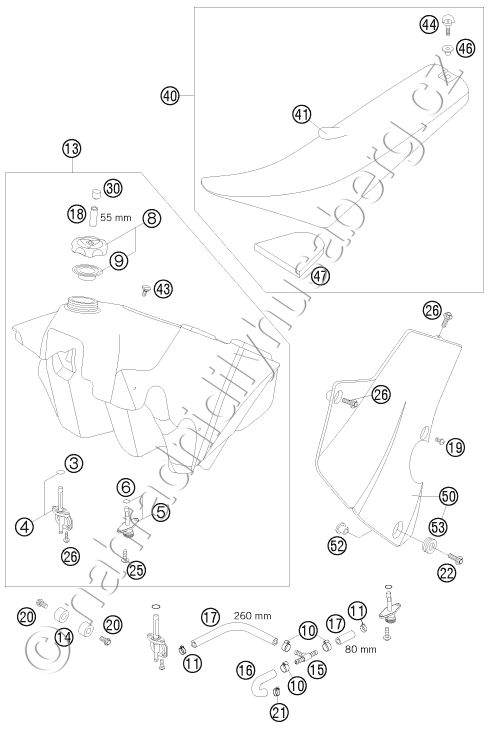

Díly pro TANK, SEAT, COVER
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 3 | 0770130023 O-RING 13,00X2,30 |
57 Kč | |
| 4 | 50307005000 GAS COCK MIKUNI ON/OFF 2001 |
1 152 Kč | |
| 5 | 58507003200 FUEL COCK CPL. |
522 Kč | |
| 6 | 0770020130 O-RING 1,78x10,82x14,38 2-013 |
20 Kč | |
| 8 | 59007008044 FILLER CAP CPL. WITH VALVE |
379 Kč | |
| 9 | 59007009000 GASKET FOR FILLER CAP HIGH |
156 Kč | |
| 10 | 00050140706 VARIABLE ONE-EAR CLAMP 14,0MM |
57 Kč | |
| 11 | 58031005000 CLAMP YDNAC 10128 12MM |
21 Kč | |
| 13 | 8000711306669 FUEL TANK CPL. 9 LIT. BLUE |
8 969 Kč | |
| 14 | 50307014000 TANK ROLLER 12X26X12 \'98 |
154 Kč | |
| 15 | 58007015000 T-CONNECTOR FOR FUEL LINE |
198 Kč | |
| 16 | 60007116000 FUEL PREFORMED HOSE |
211 Kč | |
| 17 | 54435024001 HOSE ID 7,5 PER METER |
342 Kč | |
| 18 | 58307016001 FUEL HOSE VITON 6X1,5 PER/M |
1 113 Kč | |
| 19 | 0081050181 SCREW FOR PLASTIC K50X18 T20 |
20 Kč | |
| 20 | 0025060126 HH COLLAR SCREW M6X12 TX30 |
29 Kč | |
| 21 | 58431082200 CLAMP YDNAC 13,7MM 2000 |
Na dotaz | 1 |
| 22 | 0024060206 HH COLLAR SCREW M6X20 TX30 |
29 Kč | |
| 25 | 0017060205 SCREW FOR PLASTIC K60X20 SW6 |
29 Kč | |
| 26 | 0017060206 SCREW F. PLASTIC K60X20AL SW6 |
34 Kč | |
| 30 | 80007030000 NIPPLE FOR VENTILATION HOSE 04 |
61 Kč | |
| 40 | 80007040300 SEAT CPL. HUSABERG 2006 |
Na dotaz | 1 |
| 41 | 80007040350 SEAT COVER 06 |
942 Kč | |
| 43 | 50307011000 SCREW SEAT FASTENING D=6X23/18 |
63 Kč | |
| 44 | 80007044000 SCREW PLUG FOR SEAT 04 |
919 Kč | |
| 46 | 80007046000 BUSHING FOR SEAT 04 |
Na dotaz | 1 |
| 47 | 80007047000 DIRT-FILTER SEAT 04 |
485 Kč | |
| 50 | 8000815010030 SPOILER LEFT BLACK 06 |
Na dotaz | 1 |
| 50 | 8000815110030 SPOILER RIGHT BLACK 06 |
Na dotaz | 1 |
| 52 | 80008052000 COLLAR BUSHING 6,2X10X15X2 04 |
61 Kč | |
| 53 | 80008053000 RUBBER GROMMET FOR SPOILER 04 |
Na dotaz | 2 |
