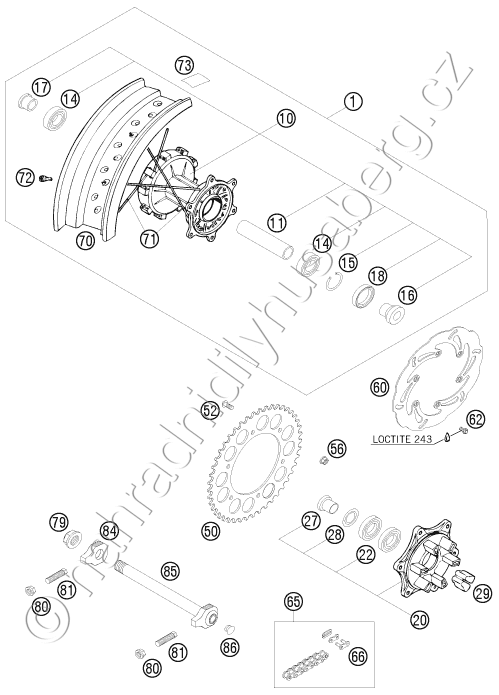

Díly pro REAR WHEEL
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 5841000134430 REAR WHEEL 4,25X17\'\' BLACK |
Na dotaz | 1 |
| 10 | 5841001034491 REAR WHEEL HUB DAMPED CPL. 06 |
8 440 Kč | |
| 11 | 58410011000 BUSHING SPACER TUBE L=98,3MM |
310 Kč | |
| 14 | 0625062052 GR.BALL BEAR. 6205-2RSHC3HMTF7 |
442 Kč | |
| 15 | 0472052200 CIRCLIP DIN0472-52X2 |
29 Kč | |
| 16 | 58410016000 BUSHING FOR HUB |
443 Kč | |
| 17 | 54610416500 BUSHING FOR REAR DAMPED HUB 06 |
377 Kč | |
| 18 | 0760325272 SHAFT SEAL RING 32X52X7 B |
103 Kč | |
| 20 | 5831005024491 SPROCKET SUPPORT CPL. |
3 581 Kč | |
| 22 | 0625060058 GR.BALL BEAR.6005 DDU2CG23S6NM |
244 Kč | |
| 27 | 58310417200 BUSH. F.SPROCKETSUPPORT 06 |
340 Kč | |
| 28 | 58310018000 SEAL WASHER 6005AV 06 |
116 Kč | |
| 29 | 54610459000 RUBBER DAMPING BLOCK \'91 |
119 Kč | |
| 50 | 58310051038 REAR SPROCKET 38-T |
1 051 Kč | |
| 50 | 58310051042 REAR SPROCKET 42-T |
1 051 Kč | |
| 50 | 58310151040 REAR SPROCKET 40-T |
1 051 Kč | |
| 50 | 58310151048 REAR SPROCKET 48-T |
1 051 Kč | |
| 50 | 58310151050 REAR SPROCKET 50-T |
1 051 Kč | |
| 50 | 58310151052 REAR SPROCKET 52-T |
1 051 Kč | |
| 50 | 7771015104501 SPROCKET 45-T |
1 051 Kč | |
| 50 | 7771015104901 SPROCKET 49-Z |
1 051 Kč | |
| 50 | 7771015105101 SPROCKET 51-Z NATURE |
1 051 Kč | |
| 52 | 0019080266S COUNTER-SUNK SCREW ISA45 M8X26 |
33 Kč | |
| 56 | 54310086200 SELF LOCKING NUT M8 10.9 |
21 Kč | |
| 60 | 58610060000 REAR BRAKE DISC 220MM 05 |
2 883 Kč | |
| 62 | 59009062013 SPECIAL SCREW M6X13 WS=8 10.9 |
20 Kč | |
| 65 | 78010167118 CHAIN DID 118 ROLLS |
2 577 Kč | |
| 66 | 78010166100 RIVETING LINK FOR 78010167118 |
199 Kč | |
| 70 | 5841007000030 REAR RIM 4,25X17\'\' BLACK |
Na dotaz | 1 |
| 71 | 58310071100 SPOKE M5X186-26G 17\'\' |
79 Kč | |
| 71 | 58310171100 SPOKE M5X199-16G 17\'\' |
79 Kč | |
| 72 | 60310072100 SPOKE NIPPLE QUADRAX M5 |
28 Kč | |
| 73 | 58309073000 RIM TAPE 17\" |
198 Kč | |
| 79 | 50310099000 HEXAGON NUT M20X1,5 \'98 |
138 Kč | |
| 80 | 58414030000 HH COLLAR NUT M10X1,25 WS=13 |
36 Kč | |
| 81 | 50304040100 SCREW M10X1.25X50 WS10 |
65 Kč | |
| 84 | 80010084000 CHAIN TENSIONER R/S 04 |
355 Kč | |
| 85 | 80010085044 WHEEL SPINDEL REAR CPL. 04 |
1 280 Kč | |
| 86 | 50210086000 COVERING CAP SFL16 |
33 Kč |
