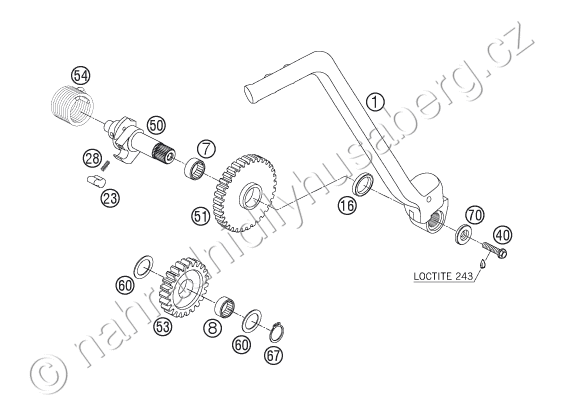

Díly pro KICK STARTER
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 80033070100 KICKSTARTER CPL. 2005 |
2 984 Kč | |
| 7 | 0405182210 NEEDLE BEARING K 18X22X10 02 |
161 Kč | |
| 8 | 0405172110 NEEDLE BEARING K 17X21X10 |
204 Kč | |
| 16 | 0760182442 SHAFT SEAL RING 18X24X4 |
66 Kč | |
| 23 | 80033023000 LOCKING PAWL KICK 03 |
124 Kč | |
| 28 | 80033028000 RATCHET SPRING 03 |
21 Kč | |
| 40 | 0025060256 HH COLLAR SCREW M6X25 TX30 |
29 Kč | |
| 50 | 80033050000 KICKSTARTER SHAFT 03 |
3 478 Kč | |
| 51 | 80033051000 KICKSTARTER GEAR 03 |
1 894 Kč | |
| 53 | 80033053000 INTERMEDIATE GEAR 03 |
1 851 Kč | |
| 54 | 80033054000 KICKSTARTER SPRING 03 |
190 Kč | |
| 60 | 54633090000 STOP DISK 17,2X25X1 |
49 Kč | |
| 67 | 0471170010 CIRCLIP DIN0471-17X1 |
17 Kč | |
| 70 | 80033070150 STEPPED WASHER KICKSTARTER |
Na dotaz | 1 |
